DES-3550 Fast Ethernet Layer
2 Switch

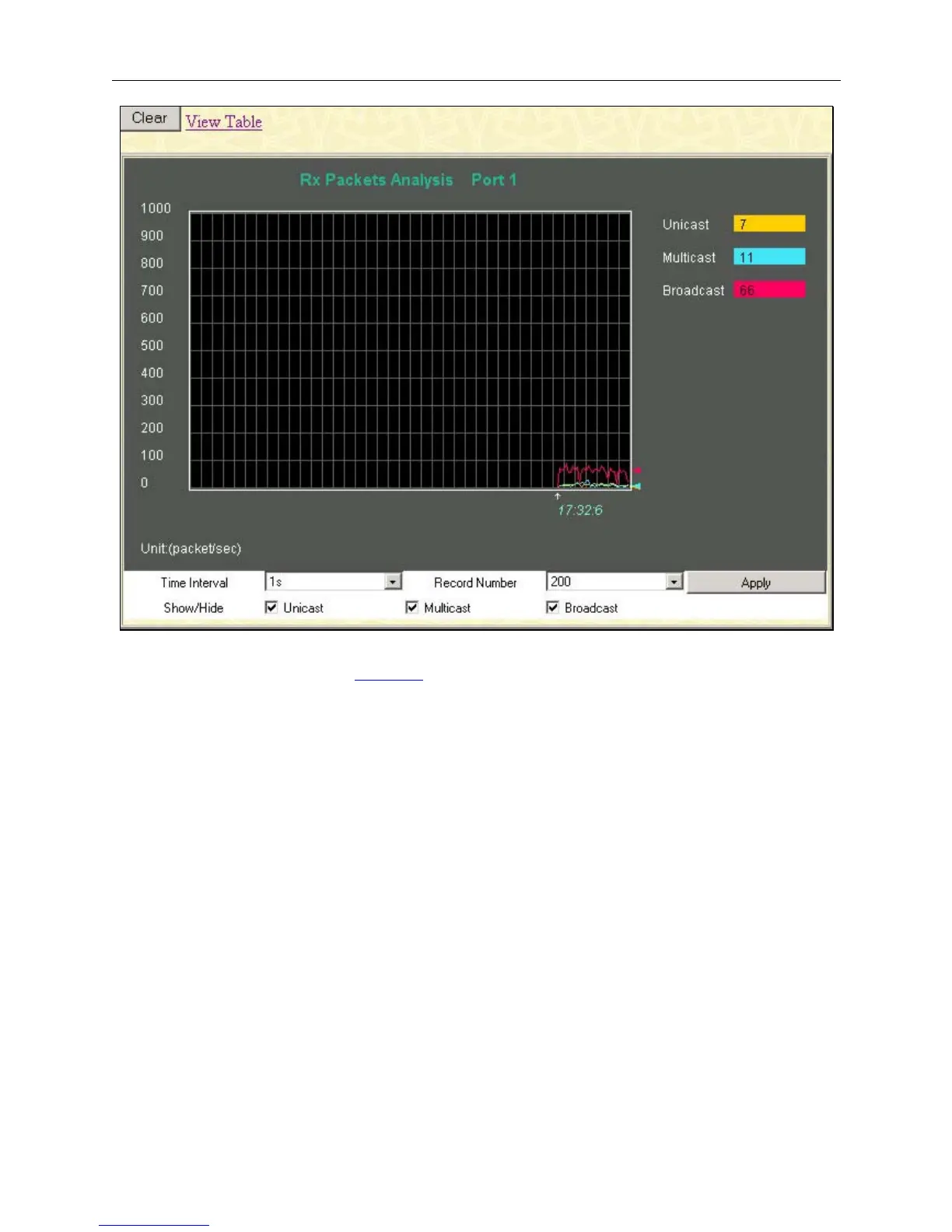

Figure 8- 5. Rx Packets Analy
sis w
indow (line gr
aph for Unicast, Multicas
t, and Broadcast Packets)
To view the
UMB Ca
st Table
, click
the
View Table
link, which will show the following table:
