DES-3550 Fast Ethernet Layer 2 Switch

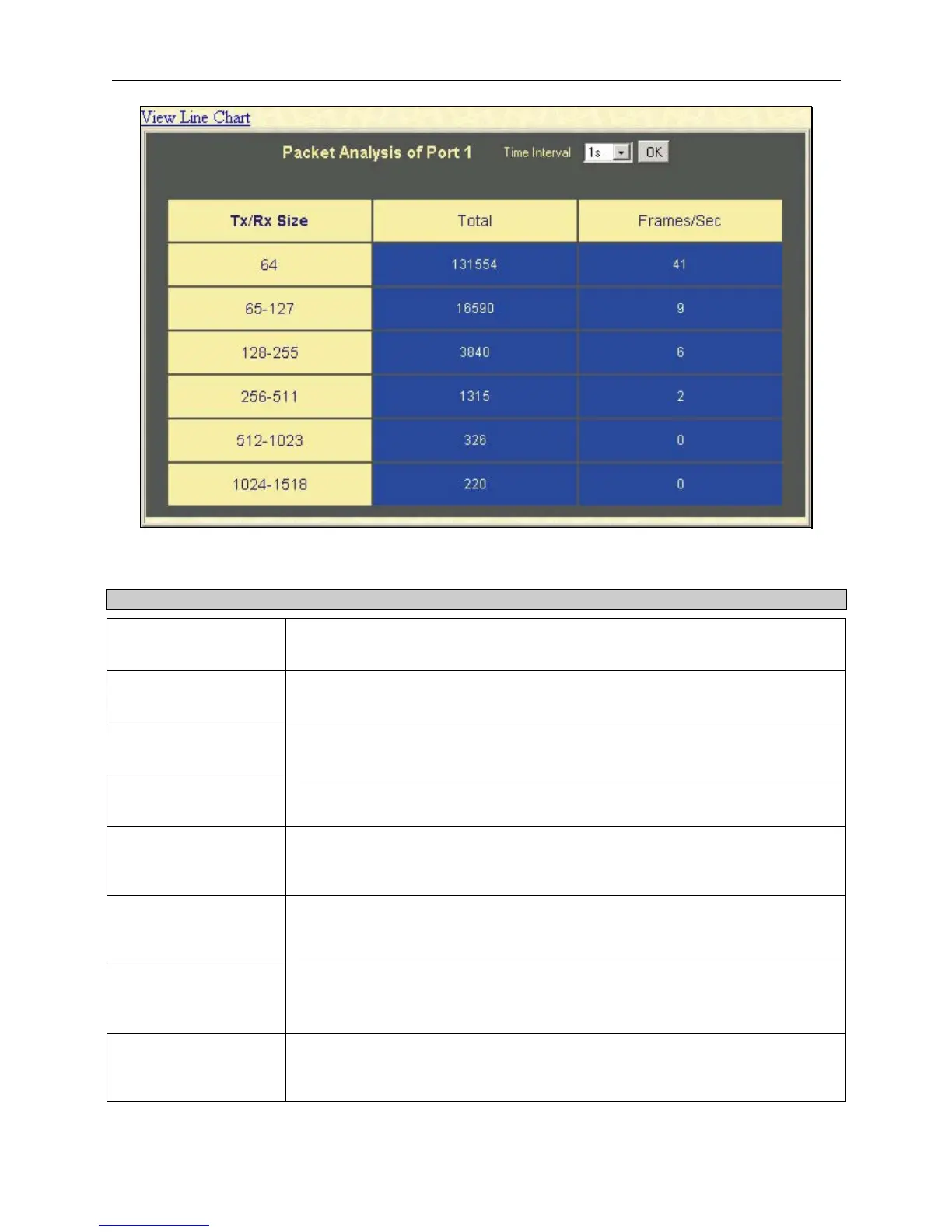

Figure 8- 14. Rx Size Analysis window (table)
The following fields can be set or viewed:
Parameter Description
Time Interval [1s ]
Select the desired setting between 1s and 60s, where "s" stands for seconds. The
default value is one second.
Record Number [200]
Select number of times the Switch will be polled between 20 and 200. The default
value is 20.
64
The total number of packets (including bad packets) received that were 64 octets in
length (excluding framing bits but including FCS octets).
65-127
The total number of packets (including bad packets) received that were between 65
and 127 octets in length inclusive (excluding framing bits but including FCS octets).
128-255
The total number of packets (including bad packets) received that were between
128 and 255 octets in length inclusive (excluding framing bits but including FCS
octets).
256-511
The total number of packets (including bad packets) received that were between
256 and 511 octets in length inclusive (excluding framing bits but including FCS
octets).
512-1023
The total number of packets (including bad packets) received that were between
512 and 1023 octets in length inclusive (excluding framing bits but including FCS
octets).
1024-1518
The total number of packets (including bad packets) received that were between
1024 and 1518 octets in length inclusive (excluding framing bits but including FCS
octets).
156
