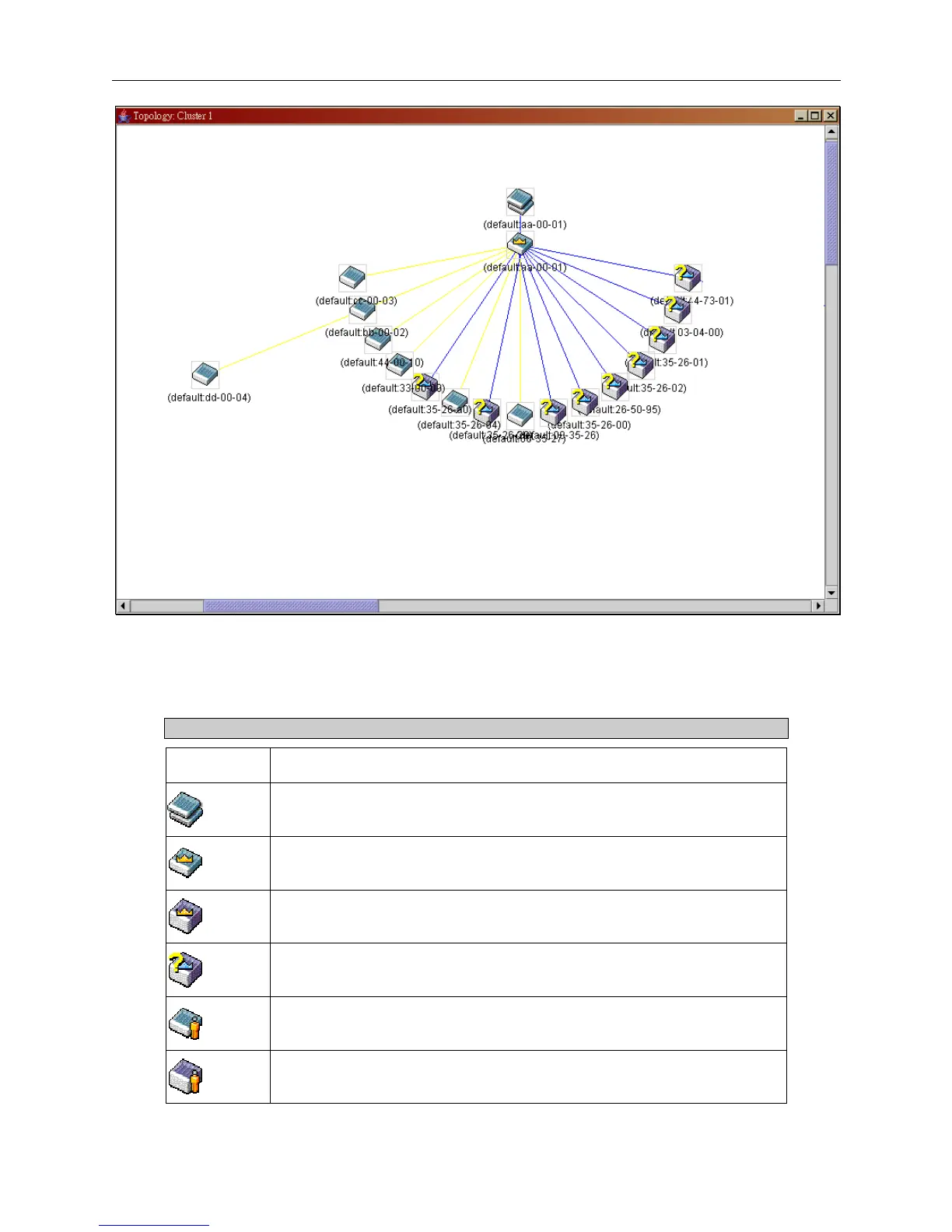

Figure 10- 5. Topology view
This screen will display how the devices within the Single IP Management Group are connected to other groups and
devices. Possible icons in this screen are as follows:
Icon Description
Icon Description
Group
Layer 2 commander switch
Layer 3 commander switch
Commander switch of other group
Layer 2 member switch.
Layer 3 member switch
