DES-3550 Fast Ethernet Layer 2 Switch

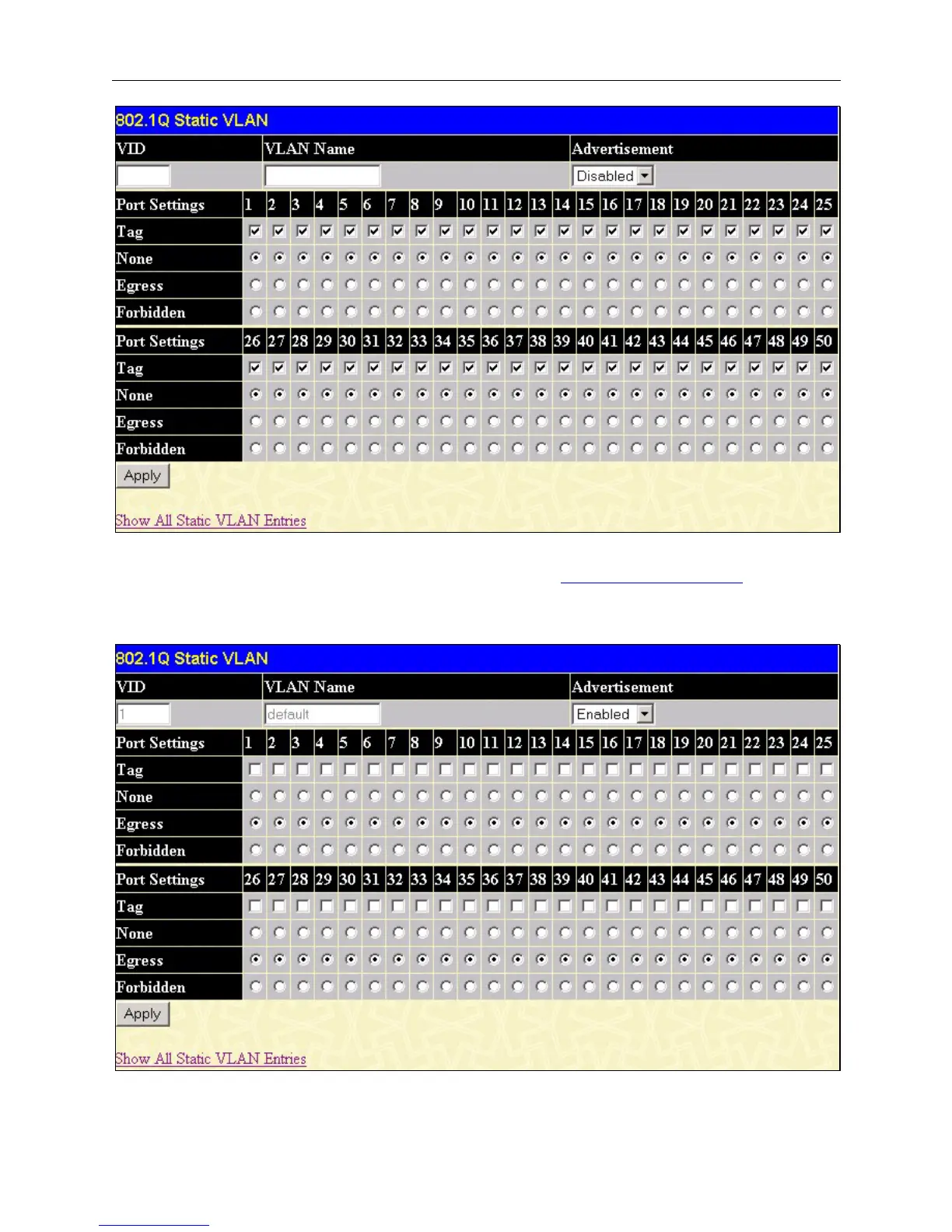

Figure 6- 37. 802.1Q Static VLANs - Add
To return to the Current 802.1Q Static VLANs Entries window, click the Show All Static VLAN Entries
link. To change
an existing 802.1Q VLAN entry, click the Modify button of the corresponding entry you wish to modify. A new menu will
appear to configure the port settings and to assign a unique name and number to the new VLAN. See the table below for a
description of the parameters in the new menu.
Figure 6- 38. 802.1Q Static VLANs Entry Settings - Modify
The following fields can then be set in either the Add or Modify 802.1Q Static VLANs menus:
63
