DES-3550 Fast Ethernet Layer 2 Switch

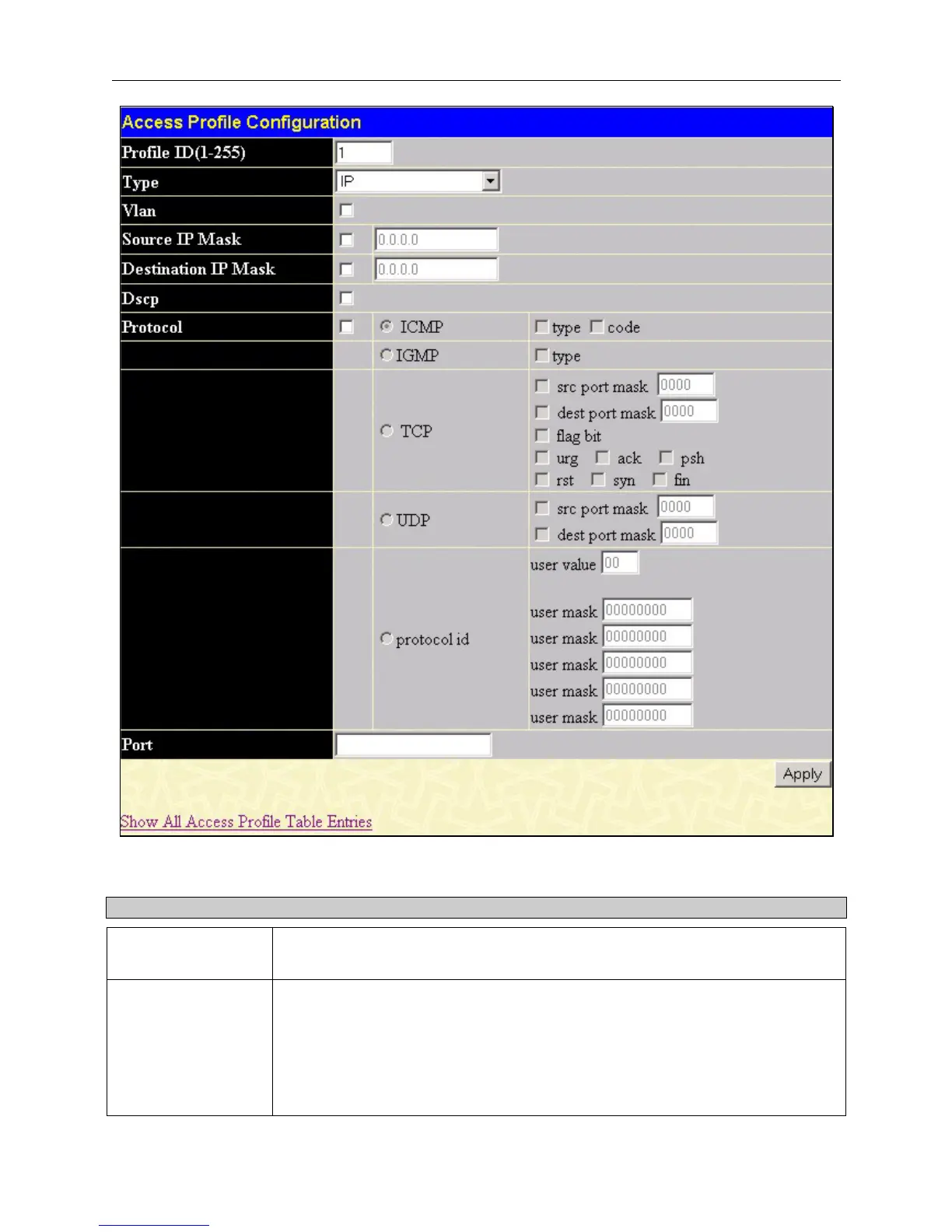

Figure 6- 54. Access Profile Configuration (IP)
The following parameters can be set, for IP:
Parameter Description
Profile ID (1-255)
Type in a unique identifier number for this profile set. This value can be set from 1 -
255.
Type
Select profile based on Ethernet (MAC Address), IP address or packet content mask.
This will change the menu according to the requirements for the type of profile.
•
•
Select Ethernet to instruct the Switch to examine the layer 2 part of each
packet header.
Select IP to instruct the Switch to examine the IP address in each frame's
header.
85
