17D-Link DHP-W611AV User Manual
Section 3 - Conguration
Select Static IP to manually enter the IP address, subnet mask, and default gateway addresses.
LAN Connection
Type:
IPv4 Address:
Subnet Mask:
Gateway
Address:
Primary and
Secondary DNS
Servers:
Select Static IP from the drop-down menu.
Enter the IP address of the DHP-W610AV. The default IP
address is 192.168.0.50. If you change the IP address, once
you click Apply, you will need to enter the new IP address in
your browser to return to the conguration
utility. You can also connect with the device name. (See
previous page.)
Enter the Subnet Mask.
Enter the Gateway. This is usually the LAN or internal IP
address of your router.
This is the Domain Name Server that looks up addresses on
the Internet, you may choose your preferred DNS provider
as well as a backup.
Click Save Settings for the changes to take eect.

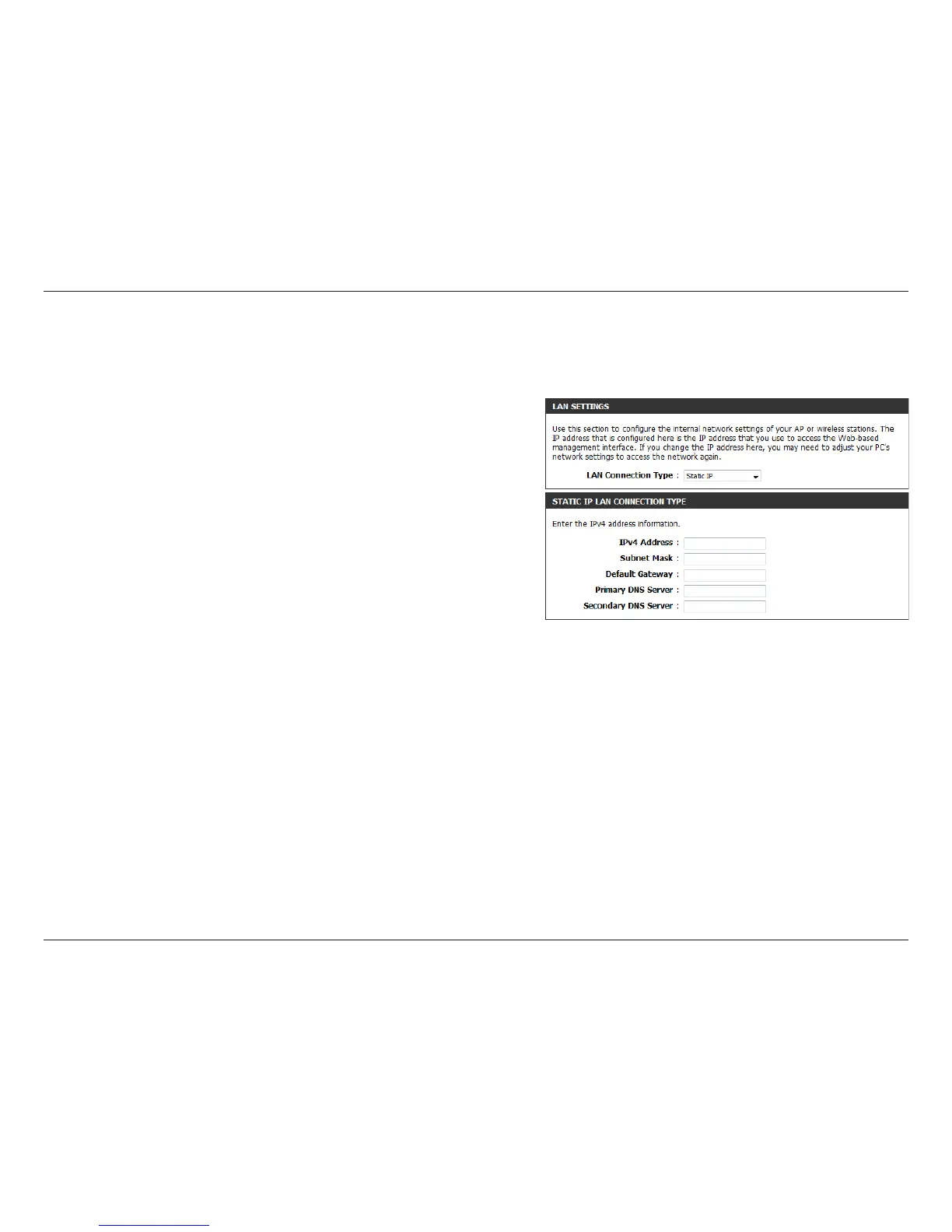

LAN Settings - Static IP
