D-Link DIR-506L User Manual

79D-Link DIR-506L User Manual
Section 7 - Connecting a Wireless Client
WPA/WPA2
It is recommended to enable wireless security (WPA/WPA2) on your wireless router or access point before conguring your
wireless adapter. If you are joining an existing network, you will need to know the security key or passphrase being used.

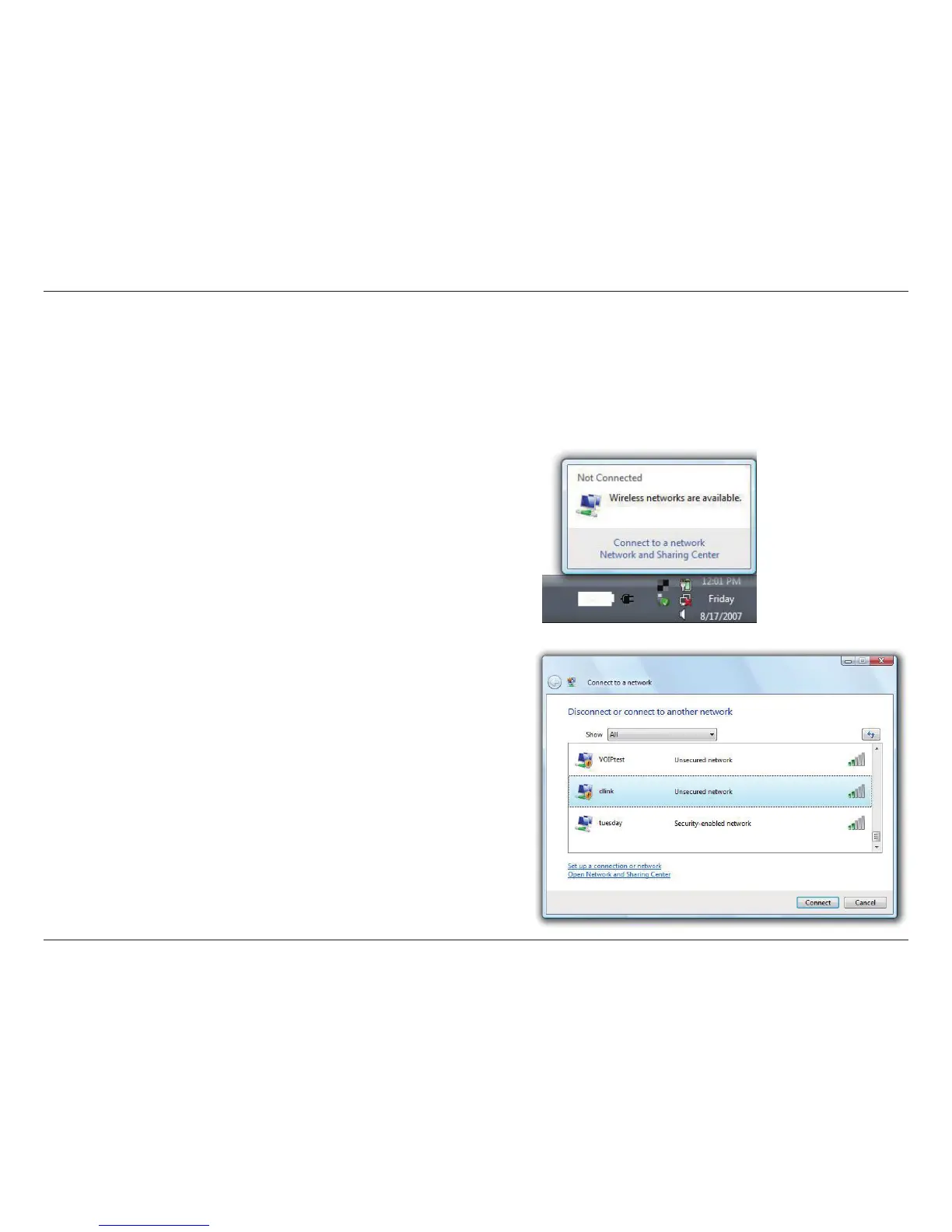

2. Highlight the wireless network (SSID) you would like to connect
to and click Connect.
1. Open the Windows Vista® Wireless Utility by right-clicking on the
wireless computer icon in your system tray (lower right corner of
screen). Select Connect to a network.

D-Link DIR-506L Specifications

General

Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Ethernet LAN (RJ-45) ports	1
USB version	2.0
Rack mounting	No
DHCP client	-
Antennas quantity	2
Security algorithms	WEP, WPA, WPA2, WPS
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	22.3 mm
Width	102.9 mm
Height	79.8 mm
Weight	125 g
