D-Link DIR-810L - Qos Engine

76D-Link DIR-810L User Manual
Section 3 - Conguration

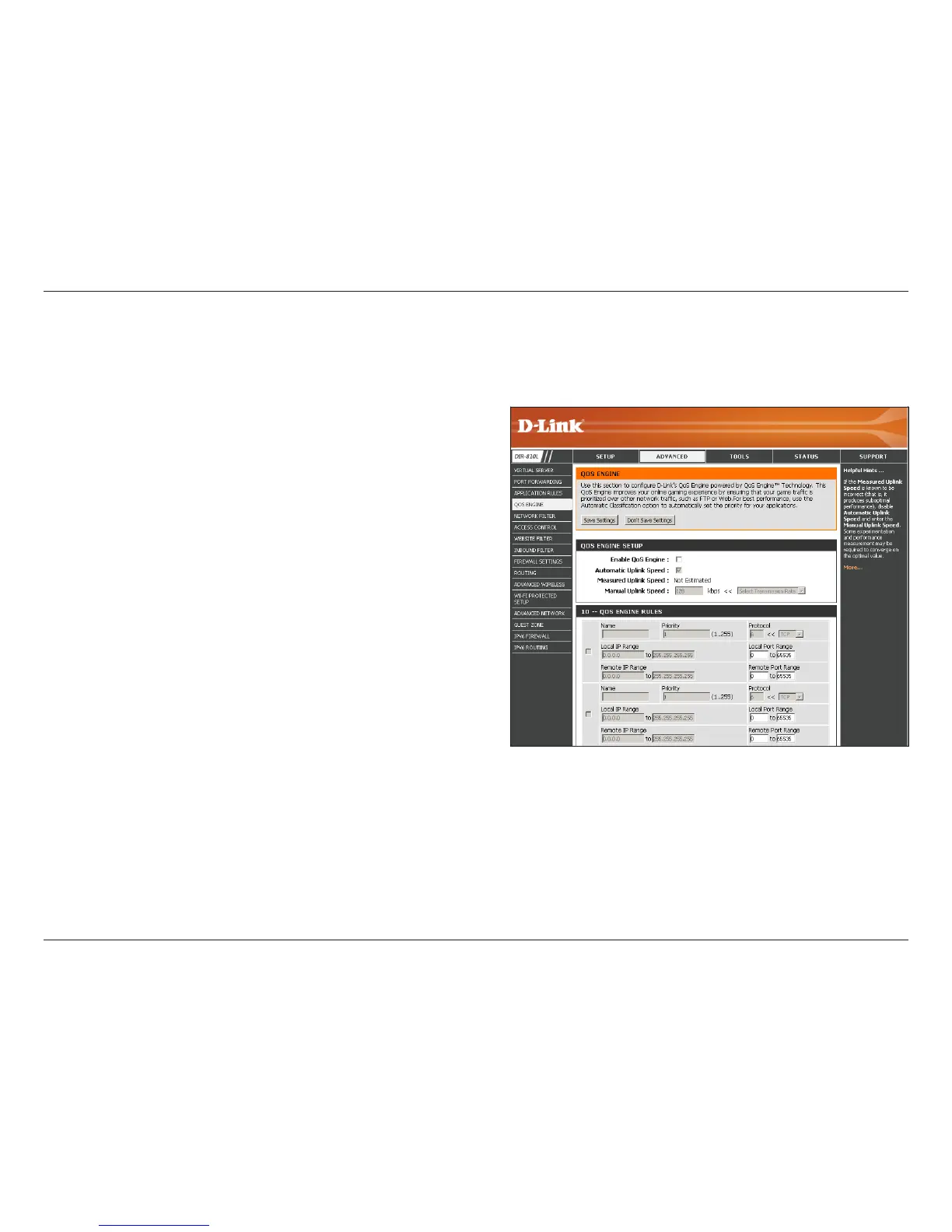

QoS Engine
This option is disabled by default. Check the box to enable this
option for providing better performance with online games
and other interactive applications, such as VoIP.
Automatic Uplink speed, which is determined by your ISP, is
the data transfer rate from the router to your ISP. This option
is enabled by default when the Enable QoS Engine option is
checked. If you wish to limit your uplink speed, uncheck the
Automatic Uplink Speed checkbox. This will allow you to enter
the uplink speed manually where it says Manual Uplink Speed,
or select a rate from the drop-down menu that says Select
Transmission Rate.
This eld displays the detected uplink speed.
A QoS Engine Rule identifies a specific message flow
and assigns a priority to that ow. For most applications,
automatic classication will be adequate, and specic QoS
Engine Rules will not be required.
The QoS Engine supports overlaps between rules, where more than one rule can match for a specic message ow. If more than
one rule is found to match, the rule with the highest priority will be used.
Create a name that is meaningful to you for the rule.
The priority of the message ow is entered here -- 1 receives the highest priority (most urgent) and 255 receives the lowest priority
(least urgent).
The protocol used by the messages.
Enable QoS:
Automatic Uplink
Speed:
Measured Uplink
Speed:
QoS Engine Rules:
Name:
Priority:
Protocol:
The QoS Engine option helps improve your network gaming performance by prioritizing applications. By default the QoS
Engine settings are disabled and application priority is not automatically classied.
