D-Link DIR-880L User Manual

86D-Link DIR-880L User Manual
Section 3 - Conguration
Management (Bridge Mode)
Time & Schedule
Time
Select your Time Zone from the drop-down menu.
Displays the current Date and Time.
Enable or disable daylight saving time.
Enable to allow an NTP (Network Time Protocol) server on the Internet
to synchronize the time and date with your router. If you enable this
option, select an NTP server from the drop-down menu. To congure
the router’s time and date manually, disable this option and use the
drop-down menus that appear to input the time and date.
Click Save when you are done.
Time Zone:
Time:
Enable Daylight
Saving:
Update Time
Using an NTP
Server:
To congure and manage your schedules, click Schedule and refer to "Schedule"
on page 87.

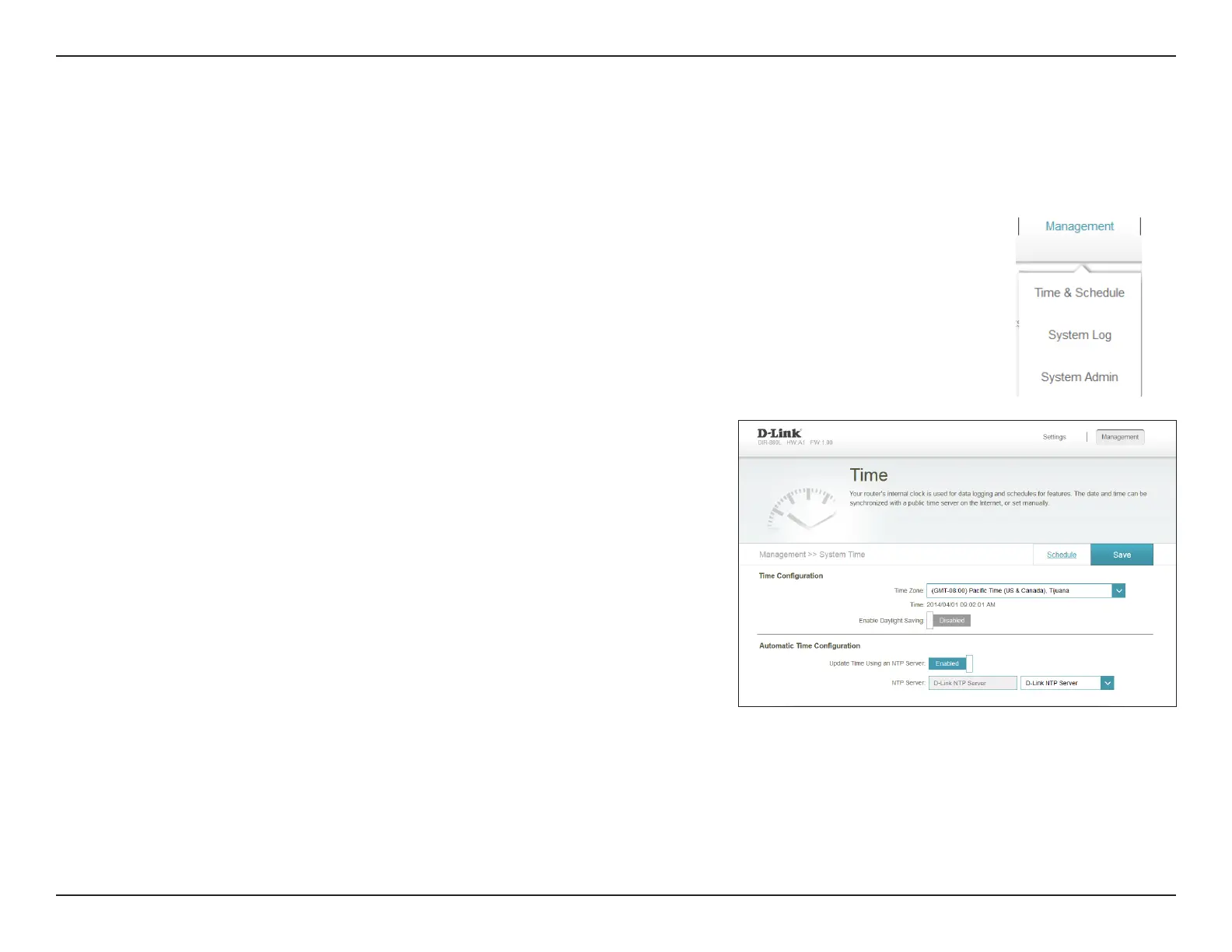

The Time page allows you to congure, update, and maintain the correct time on the DIR-880L's internal system clock.
The device's internal clock is used for data logging and schedules.
From the Management menu, click Time & Schedule.

D-Link DIR-880L Specifications

General

Ethernet LAN	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Ethernet LAN (RJ-45) ports	4
USB version	3.2 Gen 1 (3.1 Gen 1)
Input current	3 A
Rack mounting	No
USB ports quantity	2
DHCP client	-
Security algorithms	WPA, WPA2, WPS
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-25 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	0 - 90 %
Certification	FCC B\\r CE B\\r C-Tick\\r IPv6 \\r Wi Fi \\r (WPS)\\r (WMM)\\r Windows 8

Weight and Dimensions

Depth	190.4 mm
Width	246.9 mm
Height	47.2 mm
Weight	745 g
