D-Link ShareCenter DNS-327L User Manual
Section 1 - Product Overview
Hardware Overview
Front Panel
LED Indicators
Power Button
Left HDD/ Right HDD
COMPONENT DESCRIPTION
Top Panel This panel unlatches simply by pressing the lever at the back. Unhook and lift up to insert or remove your hard drive(s).
Front Panel The casing of the entire NAS
Power Button
Press once to power on the ShareCenter
™. Press and hold the button for more than 5 seconds to power it down.
USB Button Press once to activate USB or press and hold the button for more than 5 seconds to release USB activity.
Left HDD/Right HDD Indicates the position of the drive (Left or Right)
LED Indicators Illuminates blue or red depending on activity (see the next page for details)

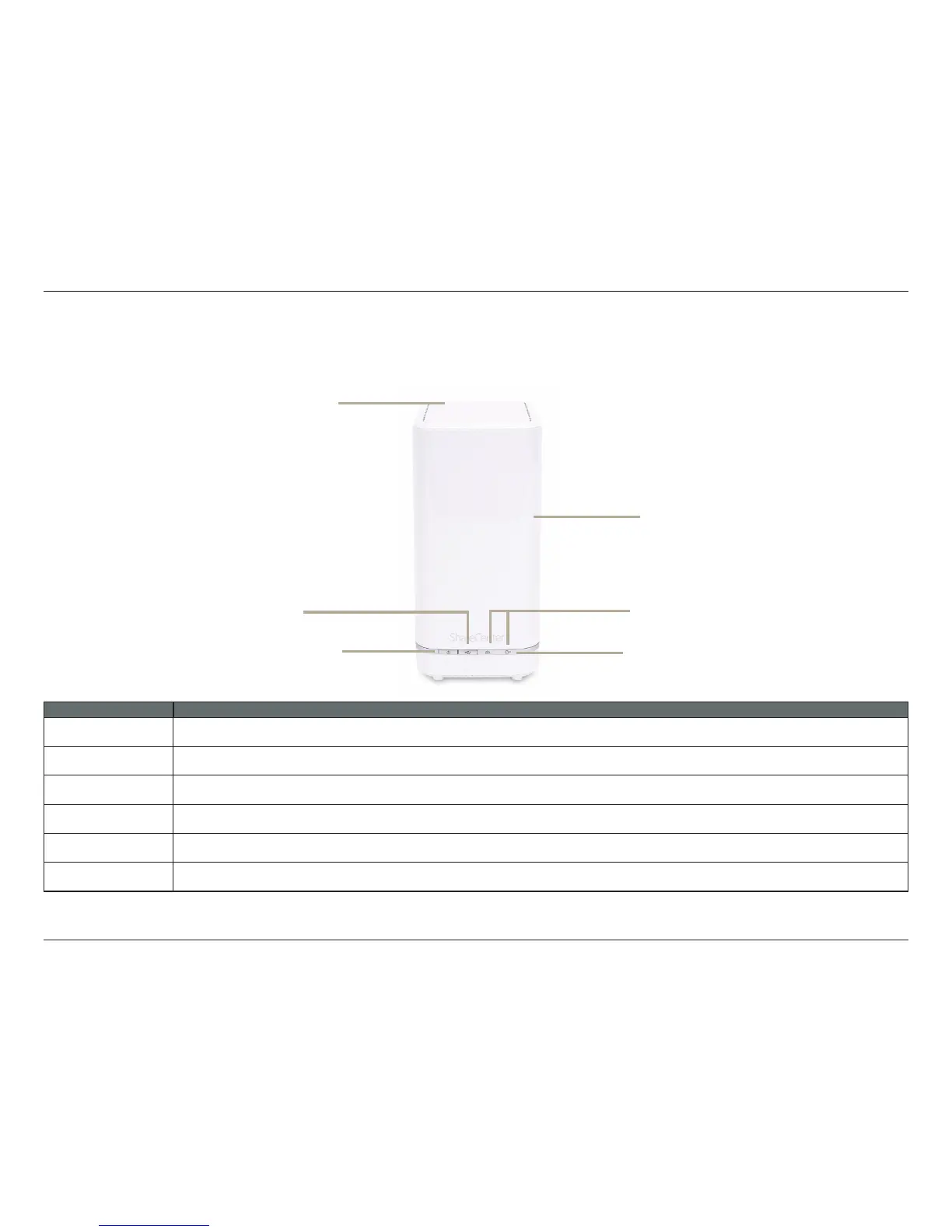

Front Panel
Top Panel
USB Button
