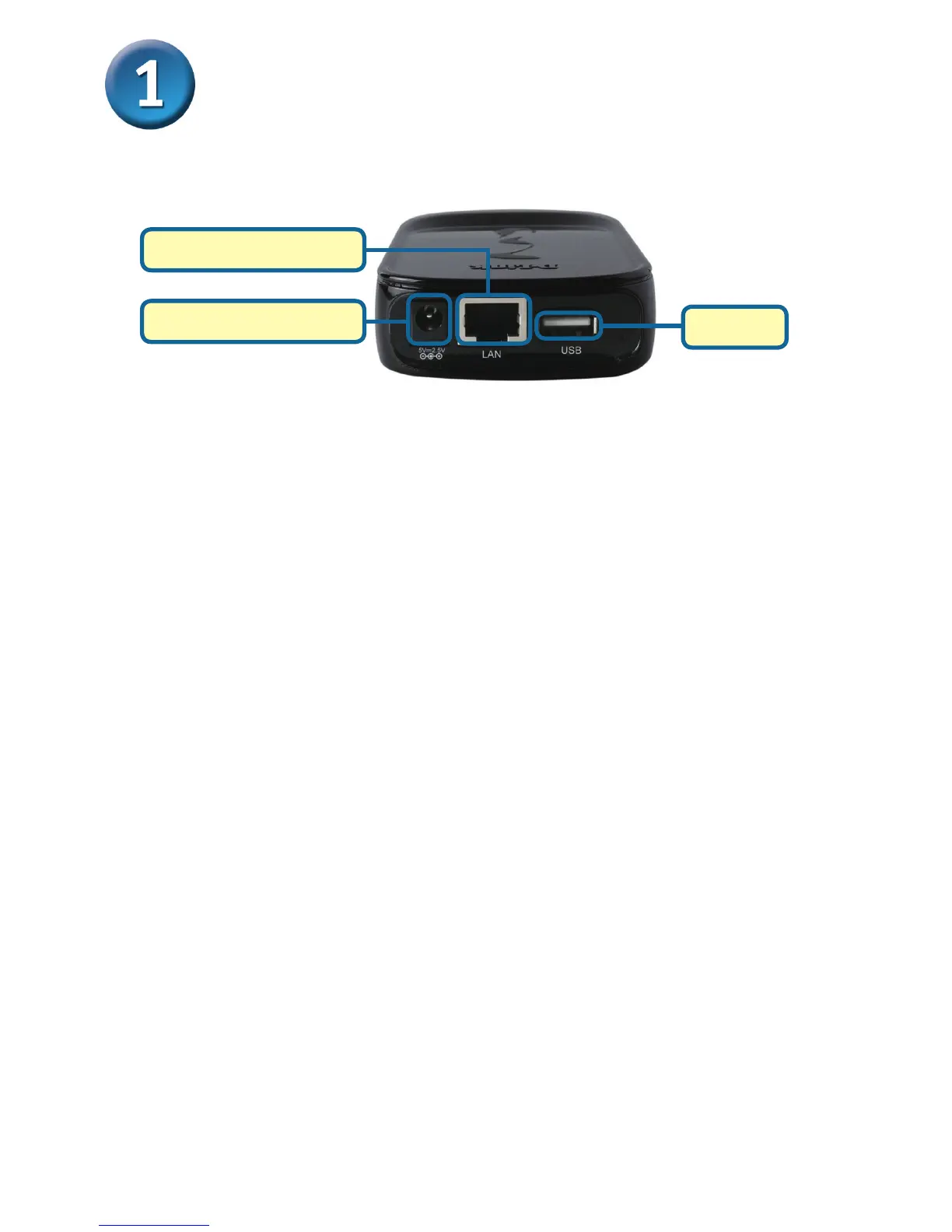

EXTERNAL FEATURES
Physical Interfaces
USB Port
Ethernet Port (LAN)
DC Power Connector
Reset Button (Bottom Panel)
The DPR-1020’s USB port is located on the rear panel. The port can be congured
using the web congurator which allows users to congure settings through their
web browser.
The default IP address of the DPR-1020 is automatically acquired from a DHCP
server on the network. If a DHCP server cannot be found the default IP address for
the DPR-1020 will be 192.168.0.10.
NOTE : The PC’s IP address must be in the same subnet as the Print Server’s IP
address for the two devices to communicate. (For example, if the Print
server’s IP address is 192.168.0.10, with a subnet mask of 255.255.255.0,
then your computer’s IP address should be 192.168.0.x, where x is a value
between 1-254, excluding 10.)
The Print Server’s rear panel features an RJ-45 port for the connection of a
10/100Mbps CAT 5 Ethernet cable. The port supports the NWay protocol, allowing
the Print Server to automatically detect or negotiate the transmission speed of the
network.
The DC power input connector is located on the Print Server’s rear panel and is
labeled DC 5V.
Press and release this button to reset the MFP Server. To restore the device to
factory default settings , press and hold the button for three seconds until the USB
LED on the front panel lights up and then release the button.
DC Power Connector
DC Power Connector
USB Port
