D-Link DSL-2740B User Manual

Section 3 - Configuration
D-Link DSL-2740B User Manual
57

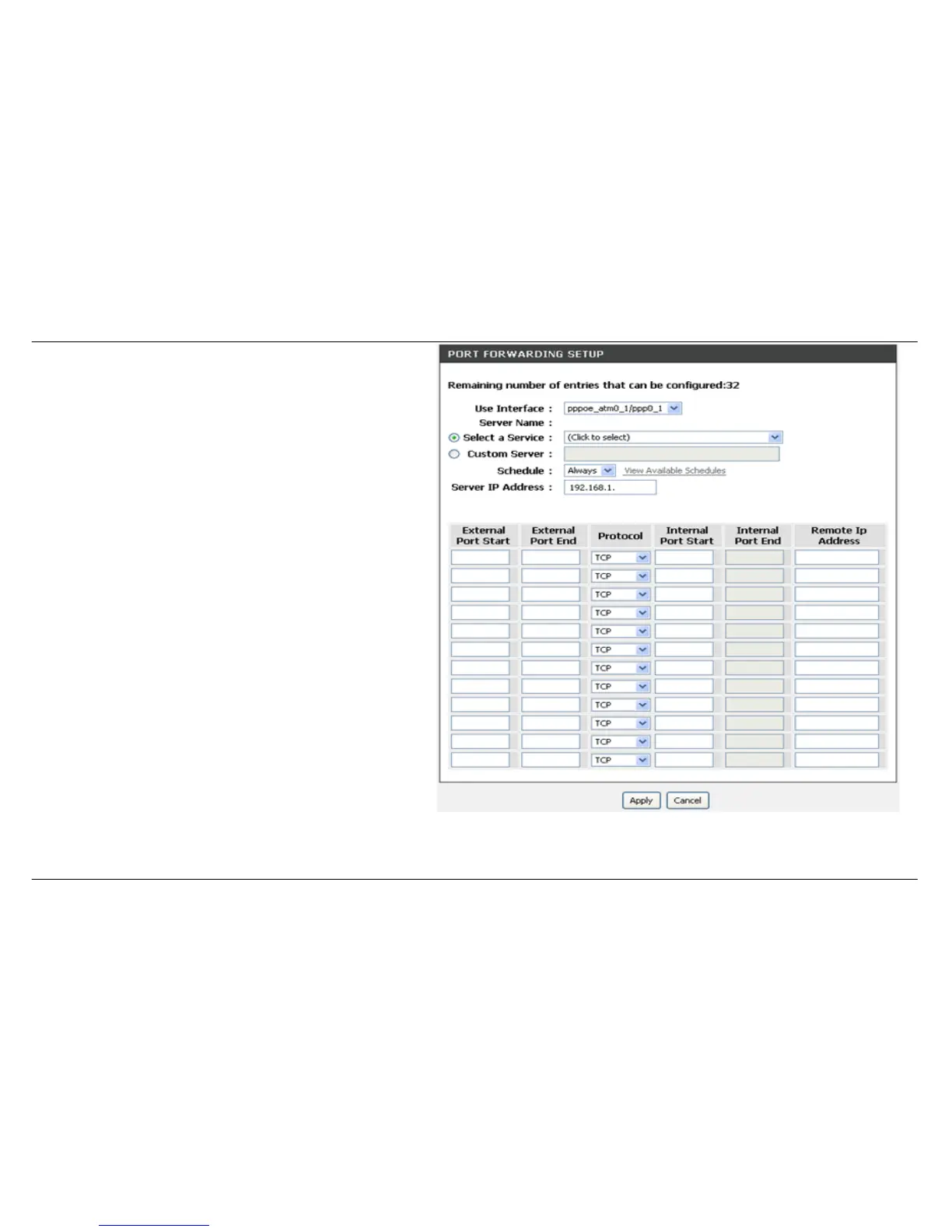

Select a name from the Application Name drop-down menu for
a pre-configured application or type a name in the Name input
box to define your own application.
Type an IP address in the IP address input box to appoint the PC
to receive the forwarded packets.
The External Port shows the ports opened for remote users in
the WAN side of the router. The TCP/UDP means the protocol
type of the opened ports.
The Internal Port shows the ports opened in the PC with the
appointed IP Address. The TCP/UDP means the protocol type of
the opened ports.

D-Link DSL-2740B Specifications

ADSL Standards

downstream data rate	up to 8 Mbps
upstream data rate	up to 1 Mbps
G.lite downstream data rate	up to 1.5 Mbps
G.lite upstream data rate	up to 512 Kbps
G.dmt.bis downstream data rate	up to 12 Mbps
G.dmt.bis upstream data rate	up to 12 Mbps

ADSL2 Standards

full rate downstream data rate	up to 24 Mbps
full rate upstream data rate	up to 1 Mbps

Wireless LAN

wireless speed	up to 300 Mbps
frequency range	2.4 GHz to 2.484 GHz
antennas	2 non-detachable dipole
