D-Link DSL-2740B

Section 1 - Product Overview
D-Link DSL-2740B User Manual
6

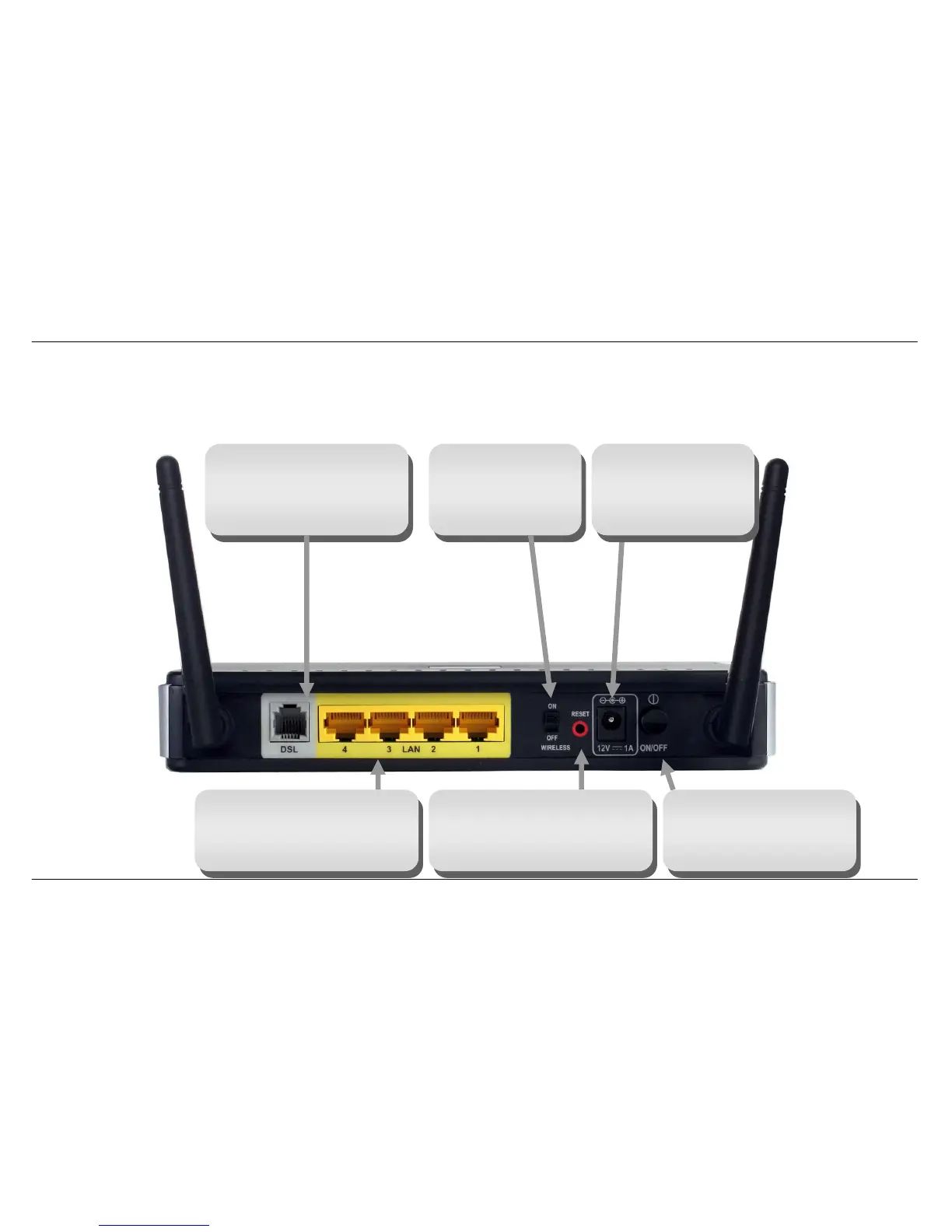

Hardware Overview
Connections
ADSL port
Use the ADSL cable to
connect to the your telephone
line (RJ-11 port)
Wireless On/Off
switch
For wireless
operation on or off
Power insert
Use the adapter
shipped with the
Router to connect to
p
ower source
Power button
Push in to power-on the
Router. Push again to
power-off the Router
Ethernet ports
Use the Ethernet ports to connect
the Router to your Ethernet LAN
or Ethernet devices
Reset button
To manually reset, depress
button with the power on for
between ten and fifteen seconds
