D-Link DSL-2740B User Manual

Section 3 - Configuration
D-Link DSL-2740B User Manual
56

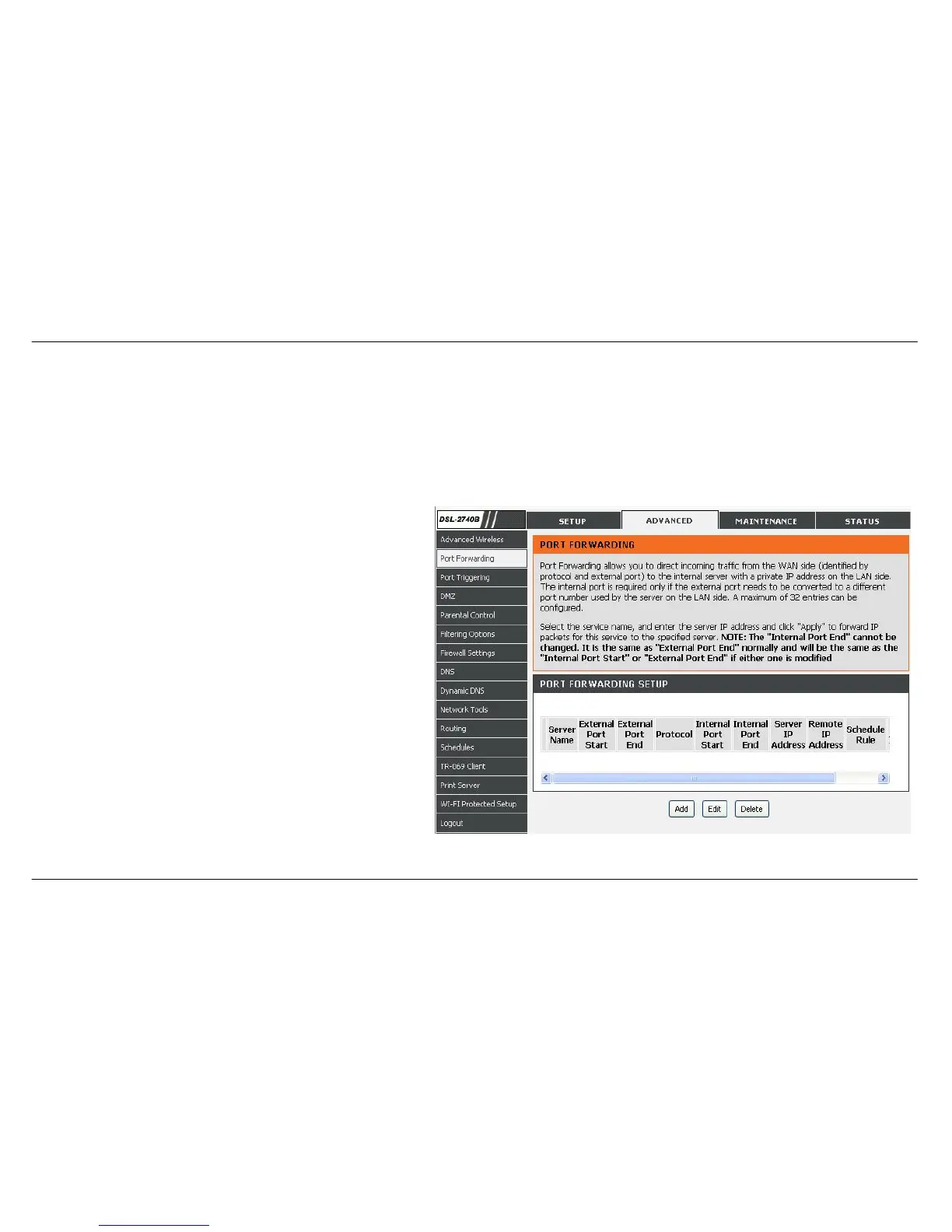

PORT FORWARDING
Use the PORT FORWARDING window to open ports in your router and re-direct data through those ports to a single PC on your network
(WAN-to-LAN traffic). The Port Forwarding function allows remote users to access services on your LAN such as FTP for file transfers or SMTP and
POP3 for e-mail. The DSL-2740B will accept remote requests for these services at your Global IP Address, using the specified TCP or UDP
protocol and port number, and then redirect these requests to the server on your LAN with the LAN IP address you specify. Remember that the
specified Private IP Address must be within the useable range of the subnet occupied by the Router.
To access the PORT FORWARDING settings window, click on the PORT FORWARDING button in the ADVANCED directory
PORT FORWARDING RULES CONFIGURATION
Click Add button to set Port Forwarding Setup setting

D-Link DSL-2740B Specifications

ADSL Standards

downstream data rate	up to 8 Mbps
upstream data rate	up to 1 Mbps
G.lite downstream data rate	up to 1.5 Mbps
G.lite upstream data rate	up to 512 Kbps
G.dmt.bis downstream data rate	up to 12 Mbps
G.dmt.bis upstream data rate	up to 12 Mbps

ADSL2 Standards

full rate downstream data rate	up to 24 Mbps
full rate upstream data rate	up to 1 Mbps

Wireless LAN

wireless speed	up to 300 Mbps
frequency range	2.4 GHz to 2.484 GHz
antennas	2 non-detachable dipole
