D-Link DSL-2740B User Manual

Section 3 - Configuration
D-Link DSL-2740B User Manual
59

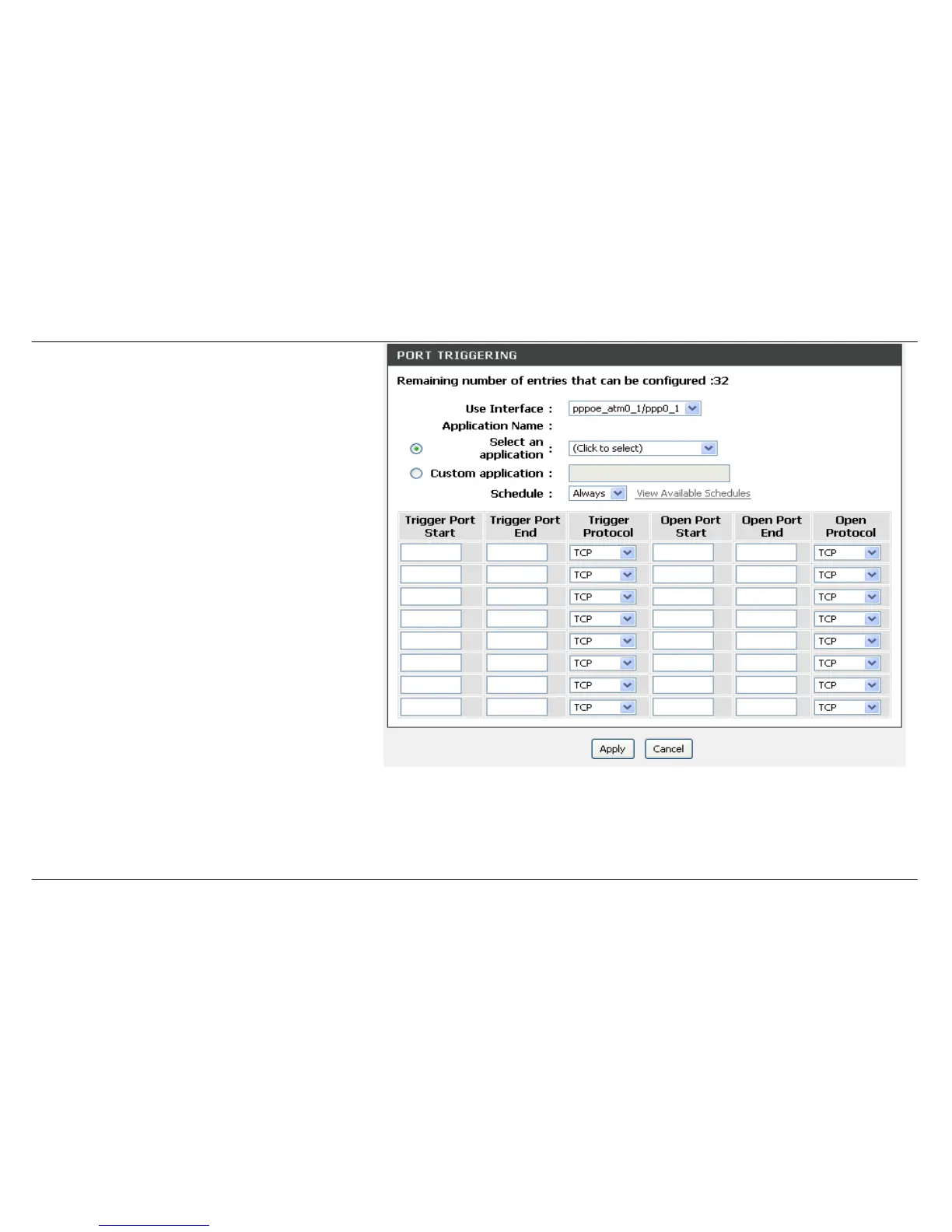

Select a name from the drop-down menu for
pre-configured application or type a name in the Custom
application input box to define your own rules.
Enter your Trigger and Firewall port(s), and select the
Traffic Type.
Click on the Apply button to apply settings.

D-Link DSL-2740B Specifications

ADSL Standards

downstream data rate	up to 8 Mbps
upstream data rate	up to 1 Mbps
G.lite downstream data rate	up to 1.5 Mbps
G.lite upstream data rate	up to 512 Kbps
G.dmt.bis downstream data rate	up to 12 Mbps
G.dmt.bis upstream data rate	up to 12 Mbps

ADSL2 Standards

full rate downstream data rate	up to 24 Mbps
full rate upstream data rate	up to 1 Mbps

Wireless LAN

wireless speed	up to 300 Mbps
frequency range	2.4 GHz to 2.484 GHz
antennas	2 non-detachable dipole
