D-Link DSL-2740B User Manual

Section 3 - Configuration
D-Link DSL-2740B User Manual
83
TR-069
The WAN management protocol TR-069 allows a Auto-Configuration Server (ACS) to perform auto-configuration, provision, collection, and
diagnostics to this device.

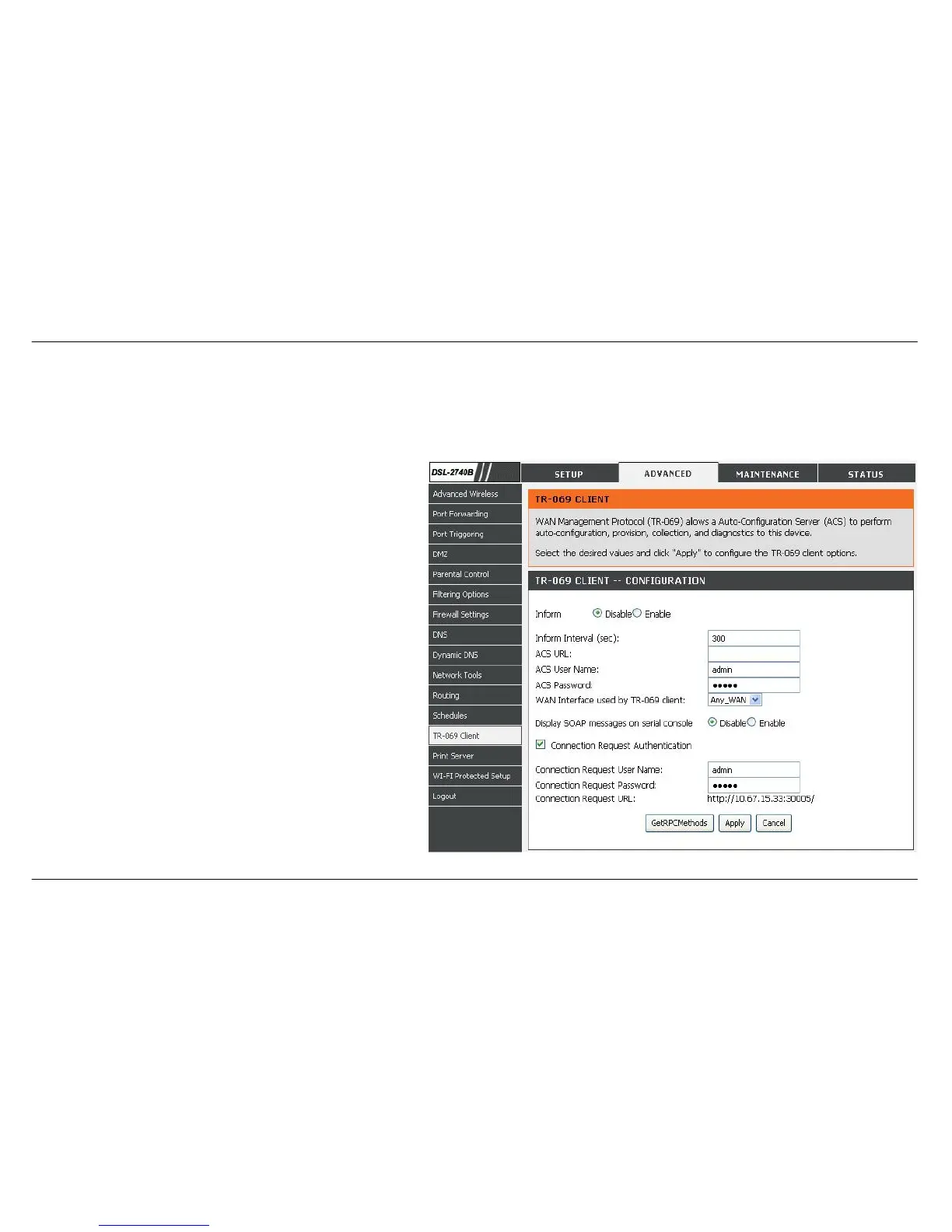

To access the TR-069 Configuration window, click on the TR-069 button under the ADVANCED tab.
TR-069
TR-069 is a WAN management protocol which allows your ISP
to perform monitoring, configuration and firmware upgrade on
your router remotely.
Inform:
Select to enable or disable TR-069 client
functionality.
Inform
Interval:
Interval (seconds) between two Inform
messages.
ACS URL:
Enter the URL of your ISP’s ACS
ACS User
Name:
Enter the authentication user name
ACS
Password:
Enter the authentication password
Connection
Request User
Name:
Enter the authentication user name for the
ACS to login
Connection
Request
Password:
Enter the authentication password for the
ACS to login

D-Link DSL-2740B Specifications

ADSL Standards

downstream data rate	up to 8 Mbps
upstream data rate	up to 1 Mbps
G.lite downstream data rate	up to 1.5 Mbps
G.lite upstream data rate	up to 512 Kbps
G.dmt.bis downstream data rate	up to 12 Mbps
G.dmt.bis upstream data rate	up to 12 Mbps

ADSL2 Standards

full rate downstream data rate	up to 24 Mbps
full rate upstream data rate	up to 1 Mbps

Wireless LAN

wireless speed	up to 300 Mbps
frequency range	2.4 GHz to 2.484 GHz
antennas	2 non-detachable dipole
