D-Link DSL-2740U Quick Installation Guide

DSL-2740U Quick Installation Guide

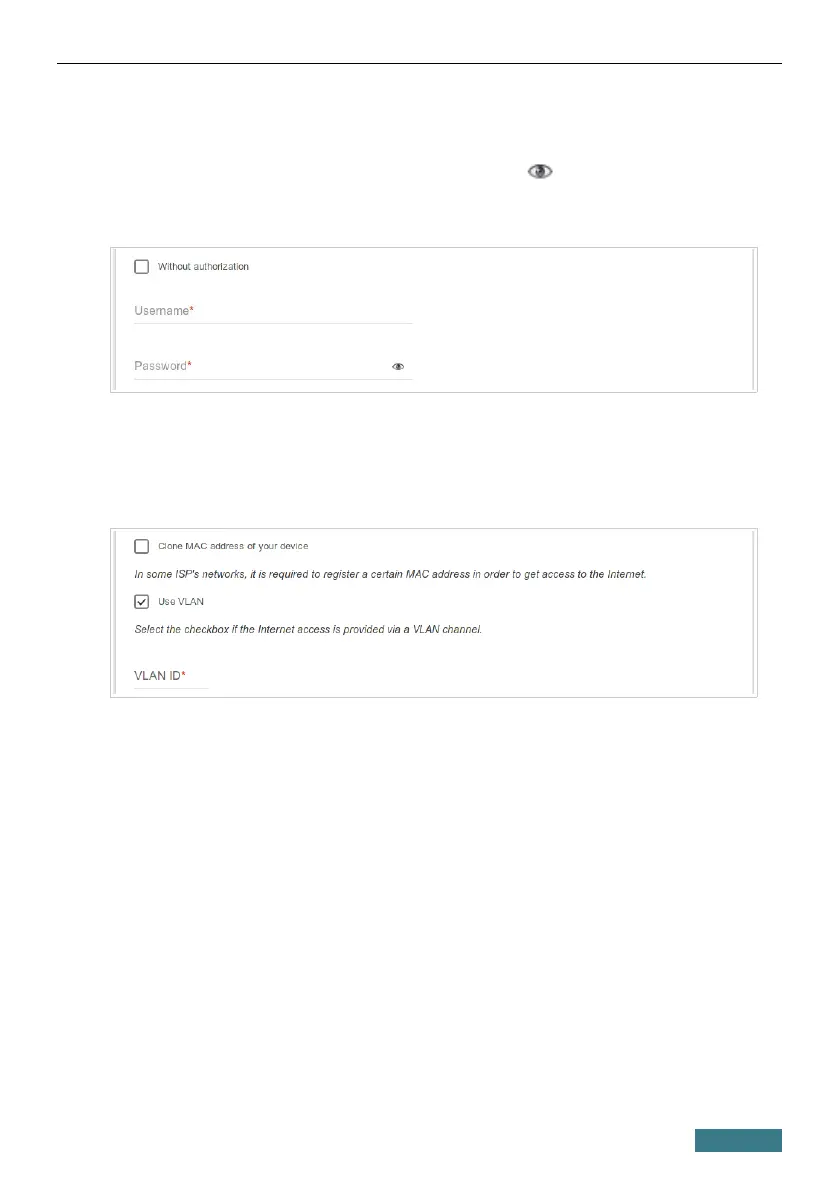

PPPoE, IPv6 PPPoE, PPPoE Dual Stack: Enter authorization data provided
by your ISP (the username (login) in the Username field and the password in
the Password field). Click the Show icon ( ) to display the entered
password. If authorization is not required, select the Without authorization
checkbox.
2. If your ISP uses MAC address binding, select the Clone MAC address
of your device checkbox.
3. If the Internet access is provided via a VLAN channel, select the Use
VLAN checkbox and fill in the VLAN ID field.
4. Click the NEXT button.
22

D-Link DSL-2740U Specifications

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL full rate downstream	up to 24 Mbps
ADSL full rate upstream	up to 1 Mbps

Media Interface

ADSL interface connector	RJ-11
ADSL interface cable	24/26 AWG twisted pair
LAN interface connector	RJ-45
LAN interface standard	10/100BASE-T Ethernet
