10/100 Fast Ethernet Switch Manual
5

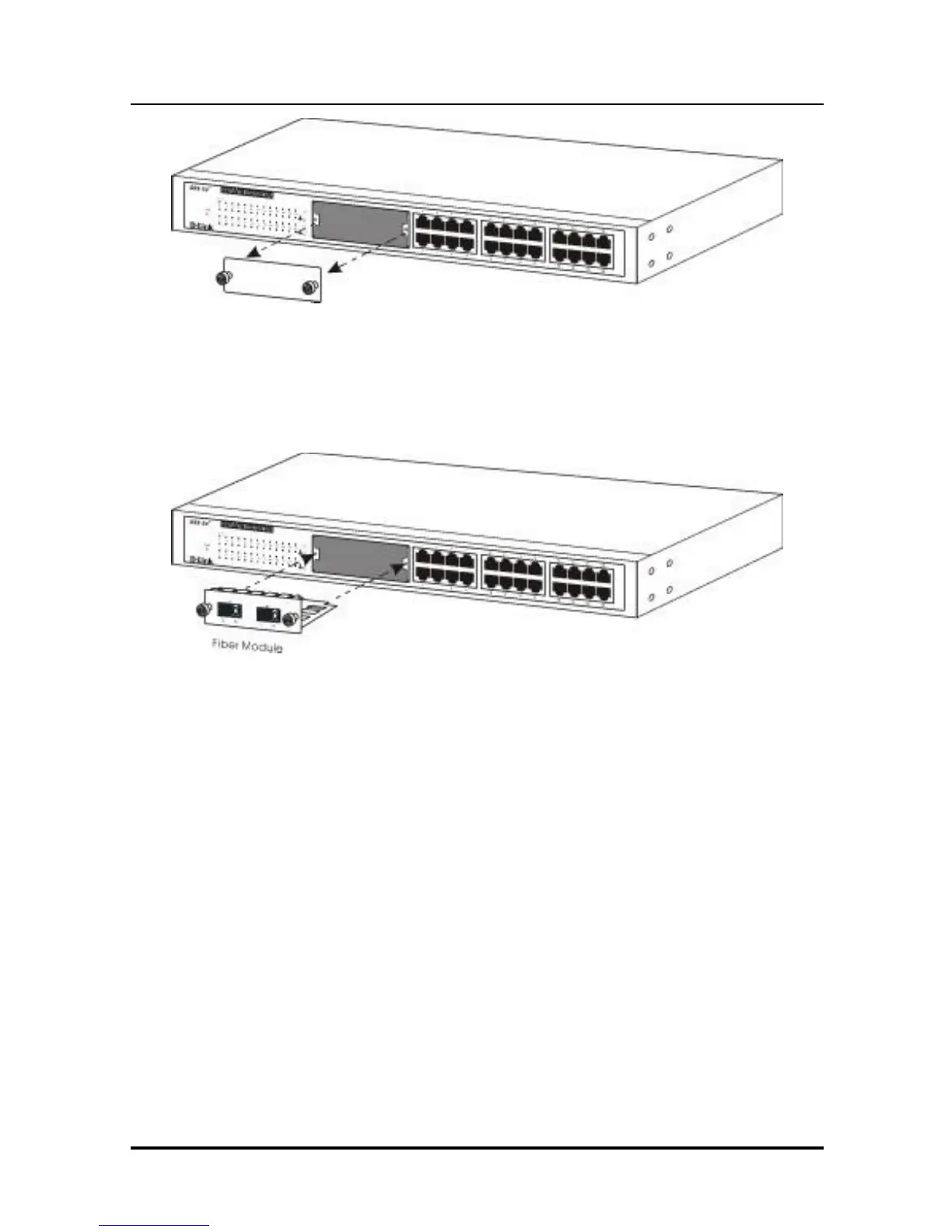

Figure 2.4 Removing the plain bracket
After removing the plain bracket, slide the module in the guide
rails all the way into the slot and secure the screws.
Figure 2.5 Sliding the module into position
When properly installed, the Slot LED will be lit after powering on
the Switch (see Chapter 3 for more information about LEDs,
including a diagram).
Note: Always remember to turn off the power before a module is
inserted or removed.
