10/100 Fast Ethernet Switch Manual
4

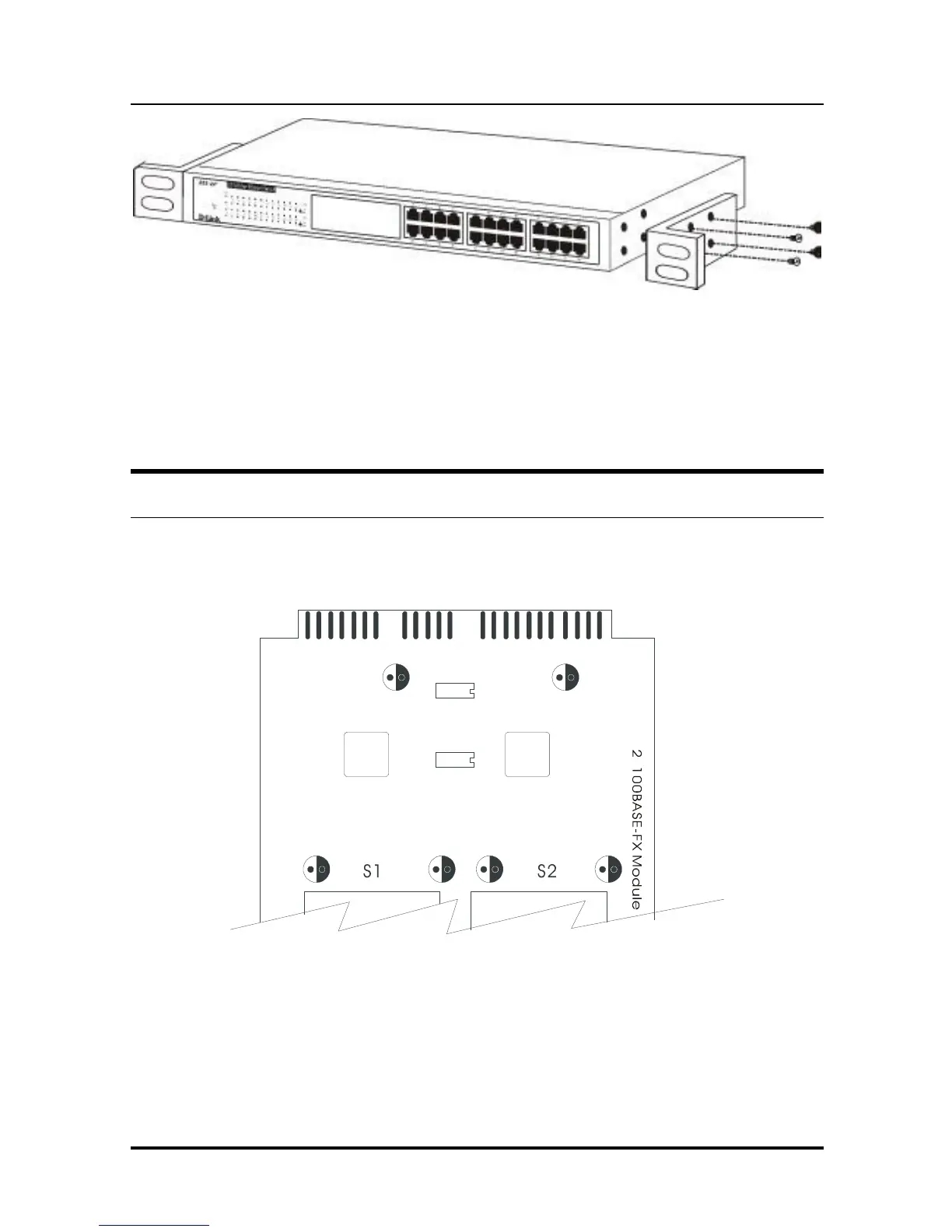

Figure 2.2 Attaching the mounting brackets to the 10/100 Fast
Ethernet Switch
Then, use the screws provided with the equipment rack to mount
the Switch in the rack.
Module Installation
An optional two-port fiber module (SC type connector) can be
installed in the front panel. Follow these steps:
Figure 2.3 Jumper settings on the module
First, make sure that the device is powered off and then remove
the plain bracket on the front of the Switch.
