DVG-6004S/6008S User’s Manual Network Settings

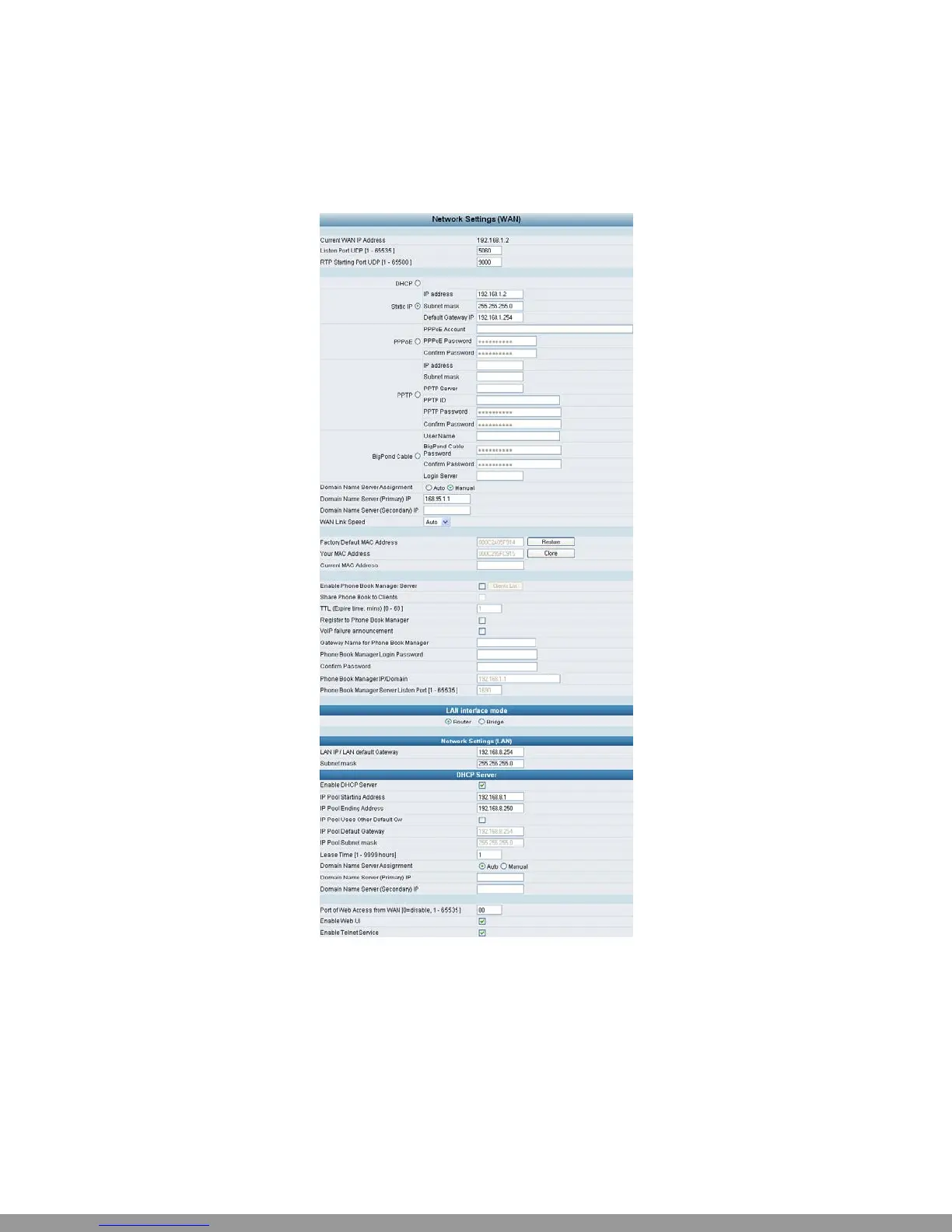

3-1 Network Settings (WAN)
The network settings are used to set the gateway’s communication ports, IP configurations, and Phone
Book Manager IP settings.
y Current WAN IP Address: The IP address of the WAN port.
y Listen Port UDP: It is not necessary to change the protocol of the communication port used by the
gateway, unless it conflicts with ports used by another device in your network.
y RTP Starting Port UDP: The initial value of the port number for transmitting voice data among
gateway(s). Each line requires 2 ports. It is not necessary to change the setting, unless it conflicts with
ports used by another network device.
For example, if the starting port is 9000, then Line 1 is using ports 9000 and 9001, and Line 2 is using
ports 9002 and 9003, and so forth.
D-Link Systems, Inc. 8
