D-Link DWM-156 Technical Support Setup Procedure

--9-
FAQ : How to manually create a profile on the D-Link Connection Manager

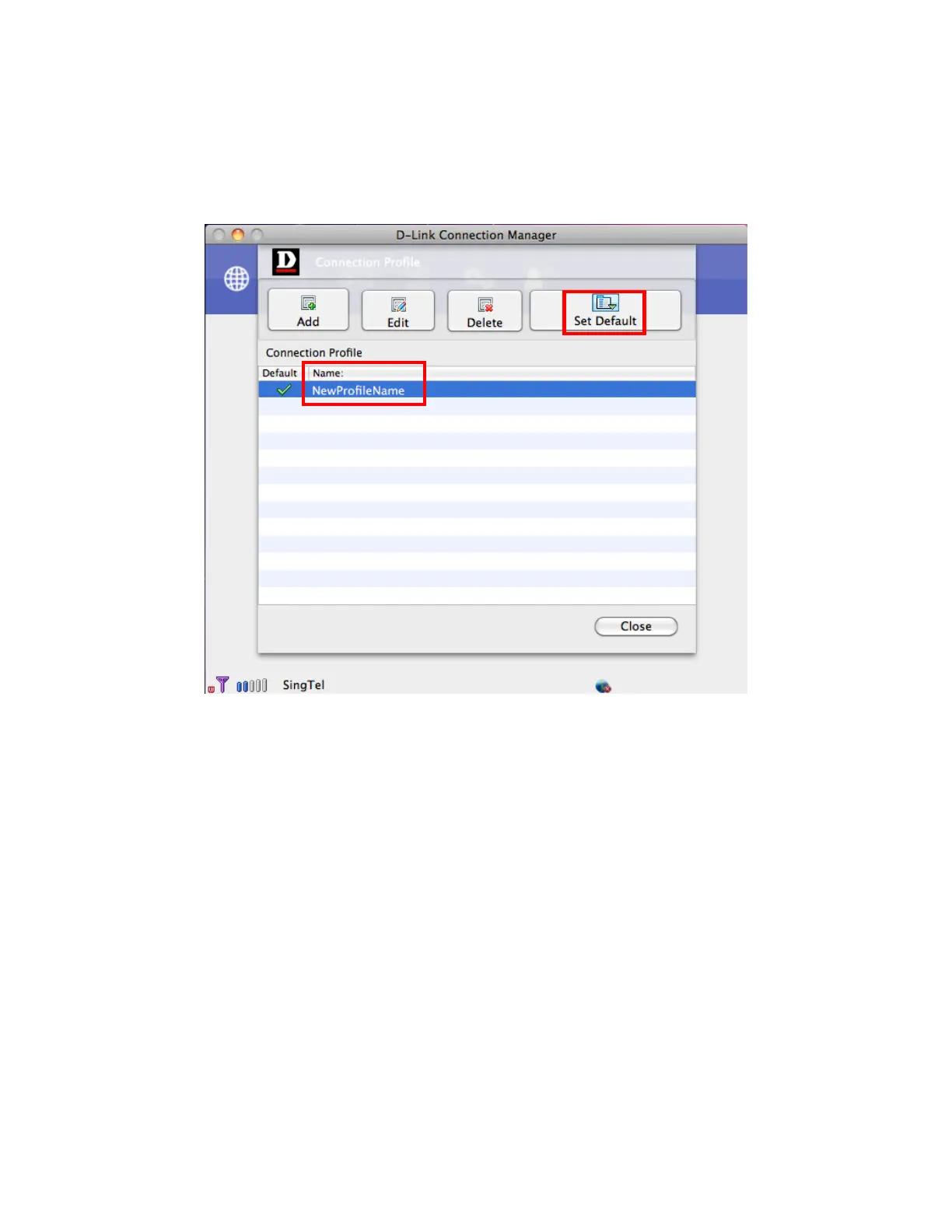

Step 4: Select the profile that you have just created. Click on ‘Set Default’ button if you wish to use
this profile as the default profile to dial the 3G Connection.
Step 5: You may now click on the Connect button on the top of the menu to connect the 3G
connection with the default profile created.
1
1

D-Link DWM-156 Specifications

GSM and UMTS Specifications

GSM Band	850, 900, 1800, 1900 MHz
UMTS/HSDPA Band	850/1900/2100 MHz
Power Class 4	900 / 1850 MHz

Data Rates

Download Speed	7.2 Mbps (HSDPA)
Upload Speed	5.76 Mbps (HSUPA)
Power Class 3	+24 dBm

Dimensions and Operating Environment

Dimensions	86.75 x 28 x 11.4 mm
Operating Temperature	-10˚ to 55˚C (14˚ to 131˚F)
Supported MicroSD Card Capacity	up to 8GB
