Connect the one end of the AC power cord supplied to the AC power connector and the other end into a
properly grounded electrical outlet. The switch will automatically adjust the AC power setting to adapt to any
voltage supply in the range from 100~240VAC at 50~60Hz.
In addition, an optional second AC power supply module can be plugged into the second power supply
module slot displayed above. When the primary AC power connection fails, the secondary AC power
connection will take over all the power immediately and automatically. The AC power supply modules are
hot-swappable, meaning, that they can be inserted and removed while the switch is powered on.

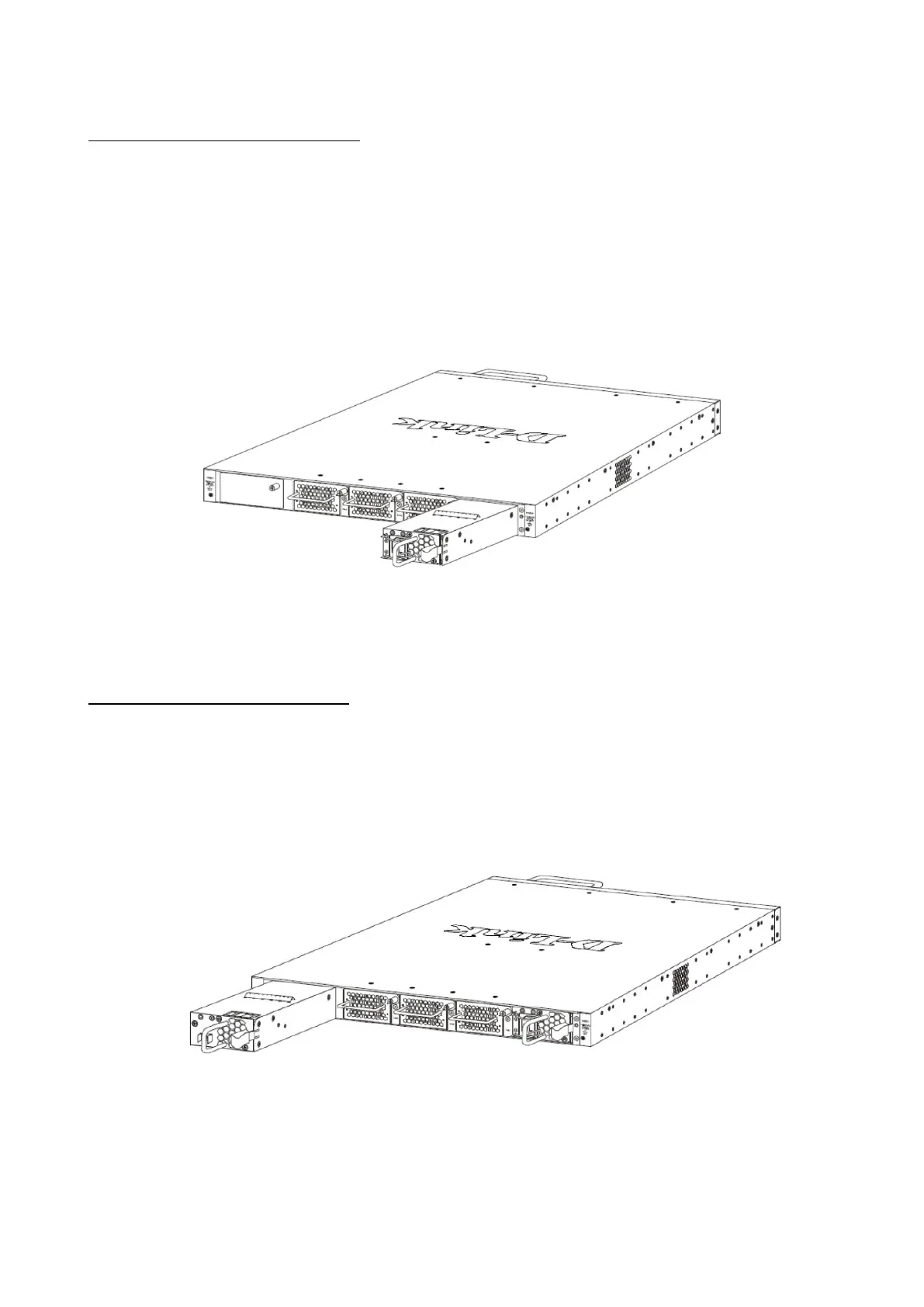

Install an AC Power Supply Module as shown on the picture below.
()'+&7
This switch supports a unique dual power input feature. The DC power module will be activated if the
AC power module turns off.
1. Install a DC Power Supply Module. Use the grounding screw on the DC Power Module and a minimum of
18 AWG stranded copper wire to ground the switch.
