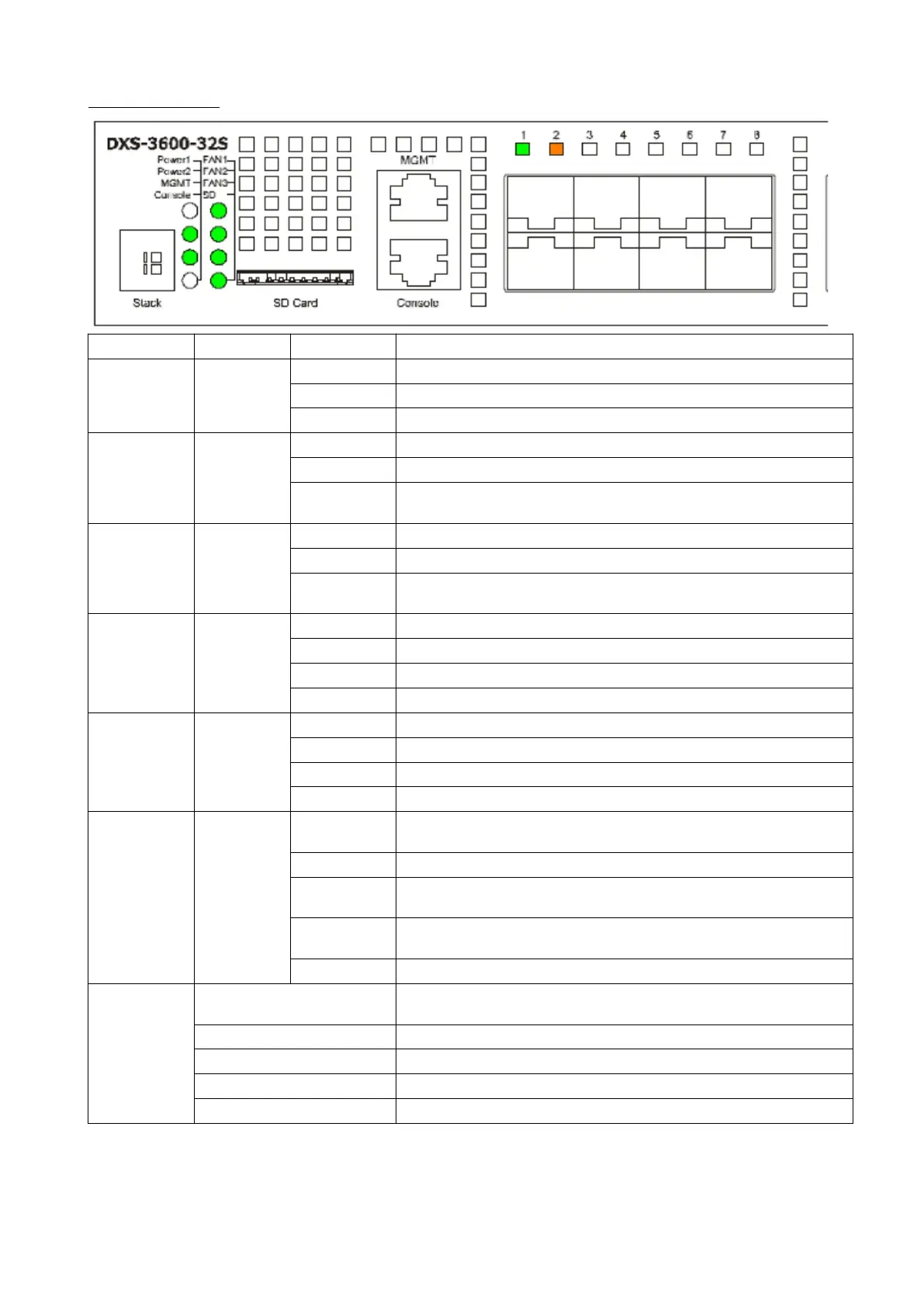

01&
01- )& &/
Power 1,
Power 2
Green/Amber Solid Green Power on
Solid Amber Power supply fails
Light off Power off
Management
(MGMT)
Green Solid Green A link to the management port was successfully established
Blinking Green When activity on this port is taking place
Light off There is no link present or when this interface was shutdown from within
the switch’s configuration
Console Green Blinking Green During the Power-On Self Test (POST)
Solid Green A user is logged in through the console port
Light off After the POST finished successfully and no user is connected to the
console port
Fan1, Fan2,
Fan3
Green/Amber Solid Green When the fan is operating normally
Solid Amber When the switch is booting up or when a diagnostics test is taking place
Blinking Amber When a fan fails
Light off When the fan is not receiving power
SD Green/Red Solid Green If a Secure Digital (SD) card is plugged in
Blinking Green When the Switch is reading or writing data to and from the SD card
Light off When no SD card is plugged into the SD port
Solid Red When an SD card failure has been detected
Link/Act Green/Amber Solid Green When there is a secure connection to a 10Gbps Ethernet device at any
of the ports
Blinking Green When a 10Gbps port is active
Solid Amber When there is a secure Ethernet connection to a 1Gbps Ethernet device
at any of the ports
Blinking Amber When there is reception or transmission (i.e. Activity-Act) of data
occurring at any of the ports / when a 1Gbps port is active
Light off When there is no link or activity
Stacking ID
1-4 Indicates the stacking ID, which can be assigned manually by the user
or automatically by the system
H Indicates this switch is the master switch in the stack
h Indicates this switch is the backup master switch in the stack
E Indicates there was an error in the system’s self-test
G Indicates the Safeguard engine entered the exhausted mode
4
