Section 3 - Conguration
WPS-PBC Conguration
Step 1 - Initiate WPS Mode

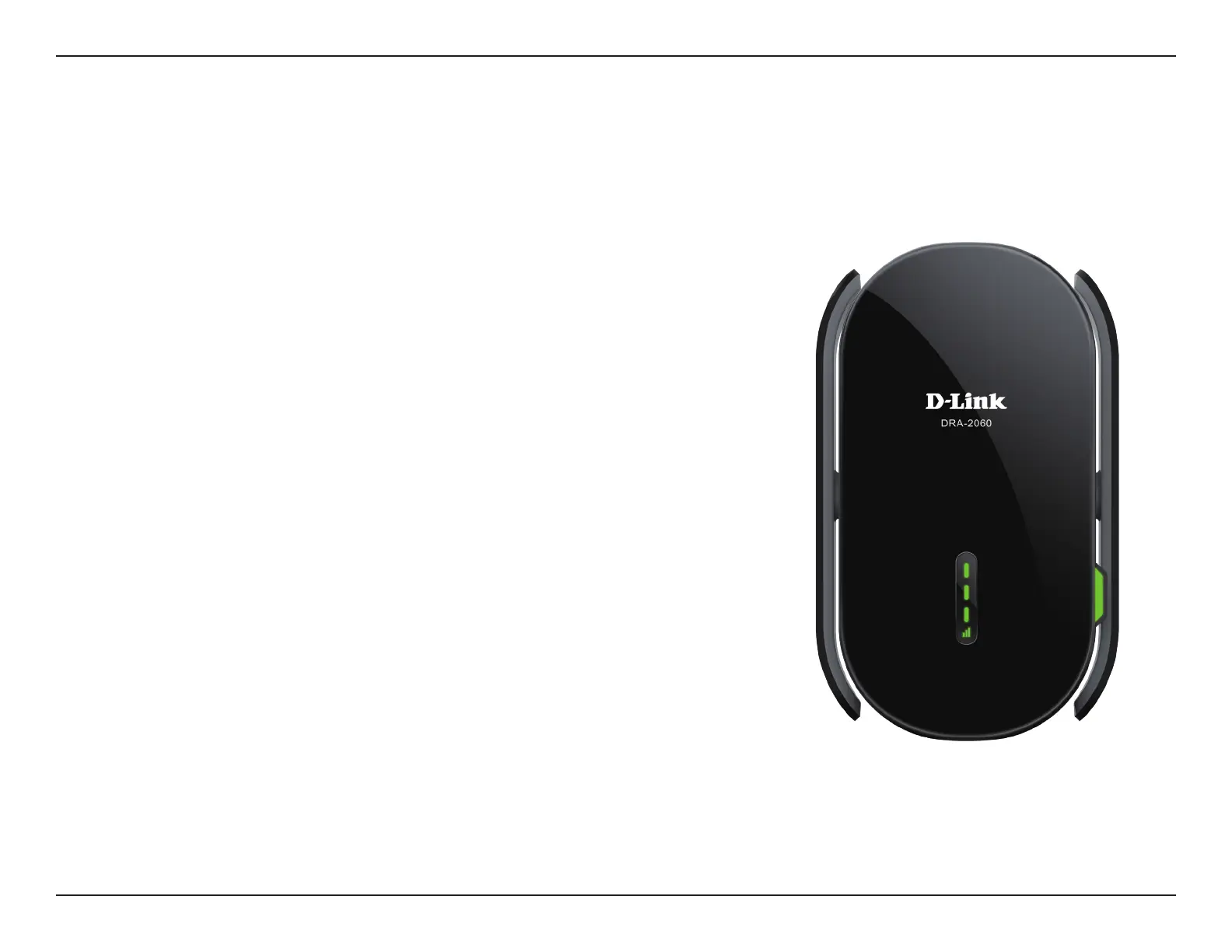

While the Status/WPS LED is blinking orange, push the WPS button on the source
wireless router or AP, and then push the WPS button on the DRA-2060. The
Status/WPS LED will start to ash green. Please allow up to two minutes for the
process to nish. The Status/WPS LED will turn solid green when the DRA-2060
has connected successfully to the source wireless router or access point.
Step 2 - Connecting Devices to the DRA-2060
The DRA-2060 is now ready to share the extended Wi-Fi network with your PCs
and mobile devices. You may use the WPS method to connect devices to the
extended network created by the DRA-2060 using the following network names
(SSID). The password will be the same as the wireless network you are extending.
• (Your router’s SSID)-EXT
The Smart Connect feature will present a single wireless network. When
connecting clients to the extended network, they will be automatically added to
the best band, either 2.4 GHz or 5 GHz. To disable the Smart Connect feature and
individually congure 2.4 GHz and 5 GHz SSIDs, refer to “Extender Settings” on
page 29.
Wireless Protected Setup (WPS) makes connecting your DRA-2060 easy. To use WPS, rst make sure the source router or access
point features a WPS Button or has a virtual WPS Button.
