D-Link Express EtherNetwork DI-604 User Manual

-13-

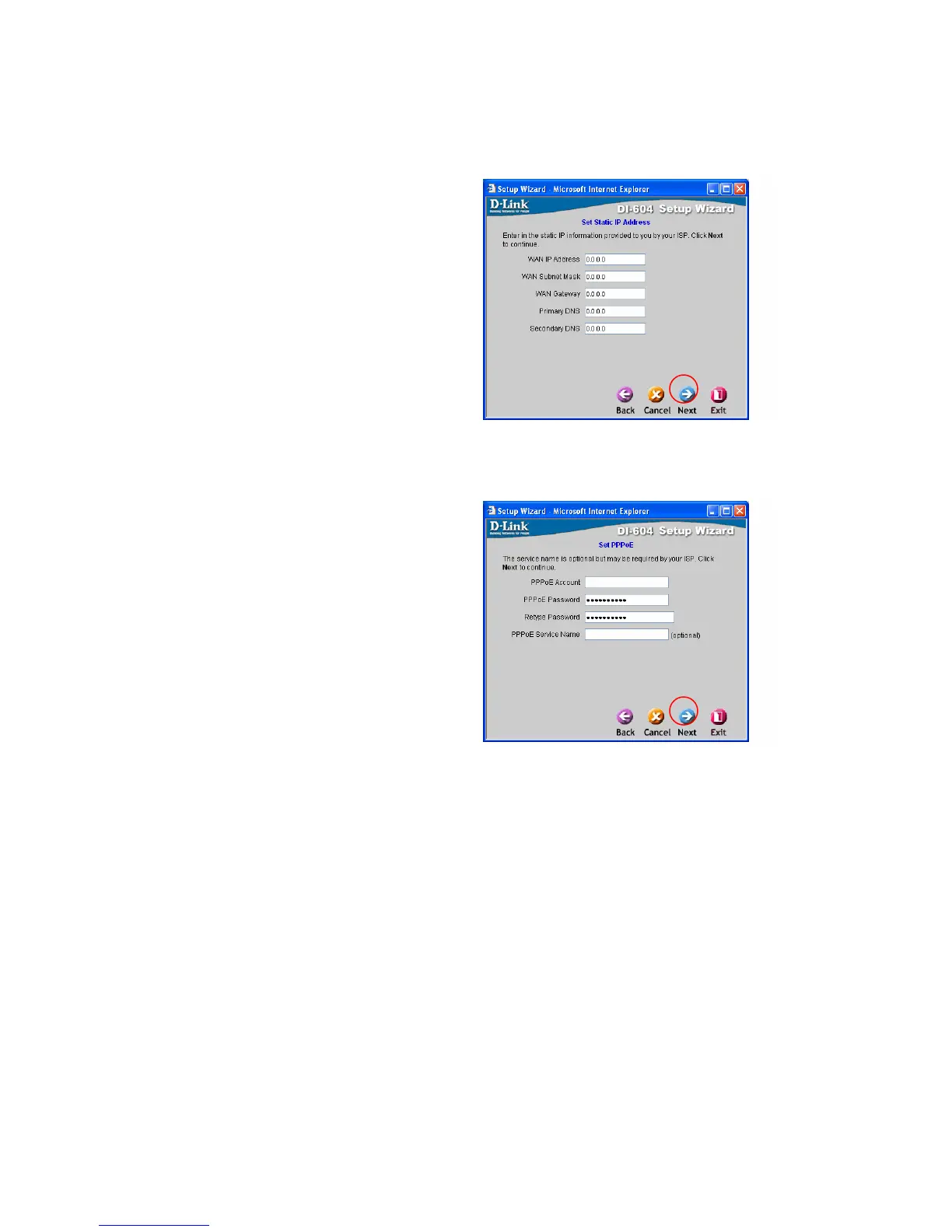

Static IP Address
If you selected Static IP Address, you will see the following page.
Enter in the IP address information
provided to you by your ISP. You will
need to enter in WAN IP Address,
WAN Subnet Mask, WAN Gateway,
and Primary DNS.
Click Next
PPPoE
If you select PPP over Ethernet (PPPoE), you will see the following
page.
Enter in the username and
password provided to you by
your ISP.
Enter in the Service Name if your
ISP uses a Service Name for the
PPPoE connection.
Click Next
NOTE: Please be sure to remove any existing PPPoE client
software installed on your computers.

D-Link Express EtherNetwork DI-604 Specifications

General

Category	Wireless Router
Model	DI-604
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet
Standards	IEEE 802.3, IEEE 802.3u
WAN Ports Qty	1
LAN Ports Qty	4
Firewall	Yes
VPN Pass-through	Yes
Features	NAT support, DHCP support, DMZ port
Ports	5 x Ethernet 10/100 Mbps
Weight	0.75 lbs
