75D-Link G415 User Manual
Section 3 - Conguration

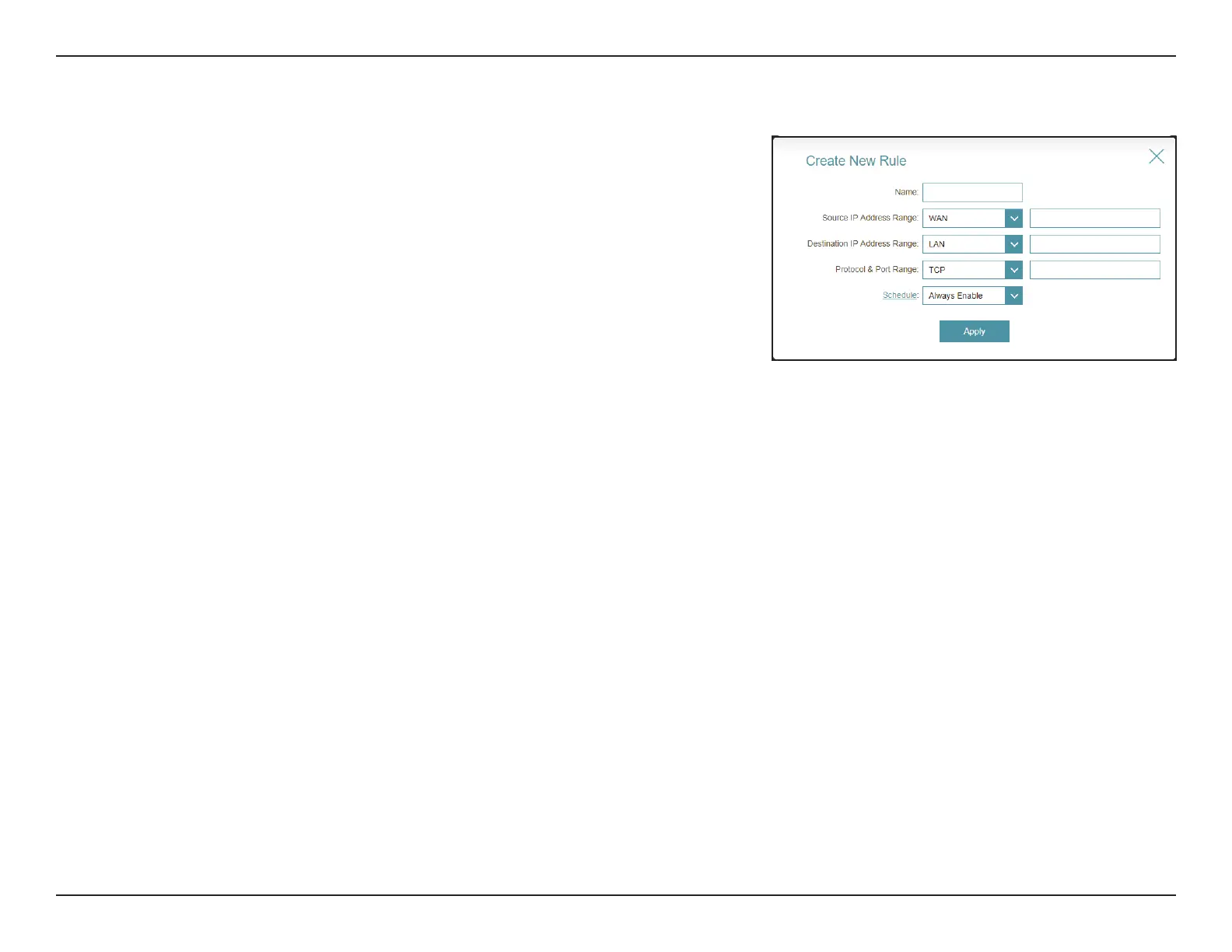

If you click
Edit or Add Rule, the following options will appear:
Name Enter a name for the rule.
Source IP Address
Range
Enter the source IP address range (e.g. 1.1.1.1-1.1.1.2 for IPv4
or 2001::1-2001::2 for IPv6) that the rule will apply to. Using
the drop-down menu, specify whether it is a WAN or LAN IP
address. Both a single IP address and a range of IP addresses
can be entered.
Destination IP Address
Range
Enter the destination IP address range (e.g. 1.1.1.1-1.1.1.2
for IPv4 or 2001::1-2001::2 for IPv6) that the rule will apply
to. Using the drop-down menu, specify whether it is a WAN
or LAN IP address. Both a single IP address and a range of IP
addresses can be entered.
Protocol & Port Range Select the protocol of the trac to allow or deny (Any, TCP, or
UDP) and then enter the range of ports (e.g. 21-23) that the
rule will apply to. Select Any to allow/deny all types of trac
regardless of the port number.
Schedule Use the drop-down menu to select the time schedule during
which the rule will be active. The schedule may be set to
Always Enable, or you can create your own schedules in the
Schedules section. Refer to Management > Time & Schedule
- Schedule on page 86 for more information.
A maximum of 24 rules can be dened.
