D-Link GO-RT-N300 Quick Install Guide

8
4
Congratulations! You have completed the router installation.
5

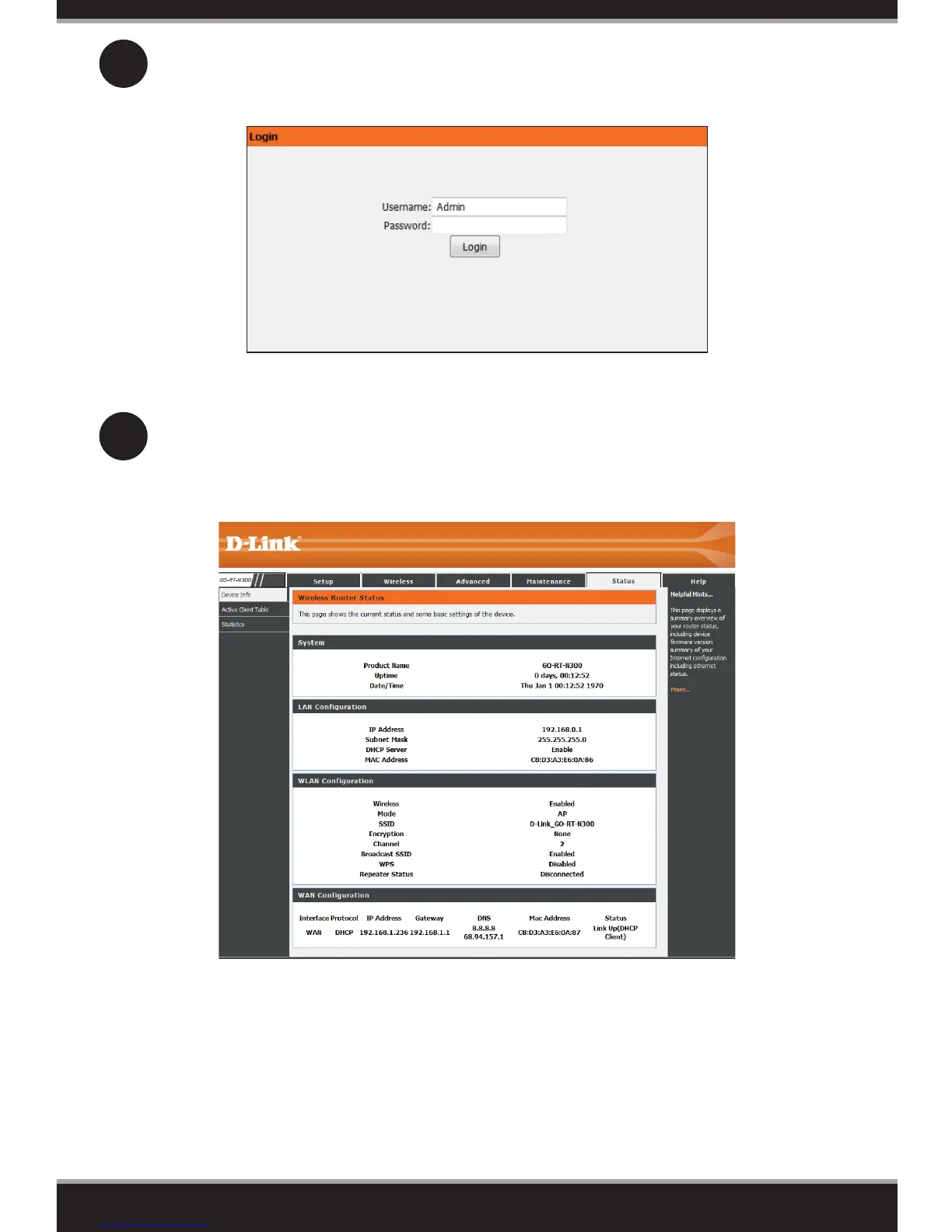

Log in to the router. The user name is Admin and leave the password box
empty. Click Login.
The Status screen will appear. This will display the current status of your
router including LAN IP settings, wireless (WLAN) settings, and Internet
(WAN) settings.

D-Link GO-RT-N300 Specifications

Wireless Signal Rates

IEEE 802.11n 20MHz channel	150 Mbps (max)
IEEE 802.11n 40MHz channel	300 Mbps (max)
IEEE 802.11g rates	54 Mbps - 48 Mbps - 36 Mbps - 24 Mbps - 18 Mbps - 12 Mbps - 11 Mbps - 9 Mbps - 6 Mbps

Operating Environment

operating temperature	0 °C to 40 °C (32 °F to 104 °F)
storage temperature	-20 °C to 65 °C (-4 °F to 149 °F)
humidity	10% minimum to 95% maximum (non-condensing)

Dimensions

length	160 mm (6.3 inches)
width	120 mm (4.72 inches)
height	59 mm (2.32 inches)
