Connect to an End Node
End nodes include PCs outfitted with a 10, 100, or 1000 Mbps RJ-45
Ethernet/Fast Ethernet Network Interface Card (NIC) and most routers.
An end node can be connected to the Switch via a twisted-pair
Category 3, 4, 5, or 5e UTP/STP cable. The end node can be
connected to any of the ports of the Switch.

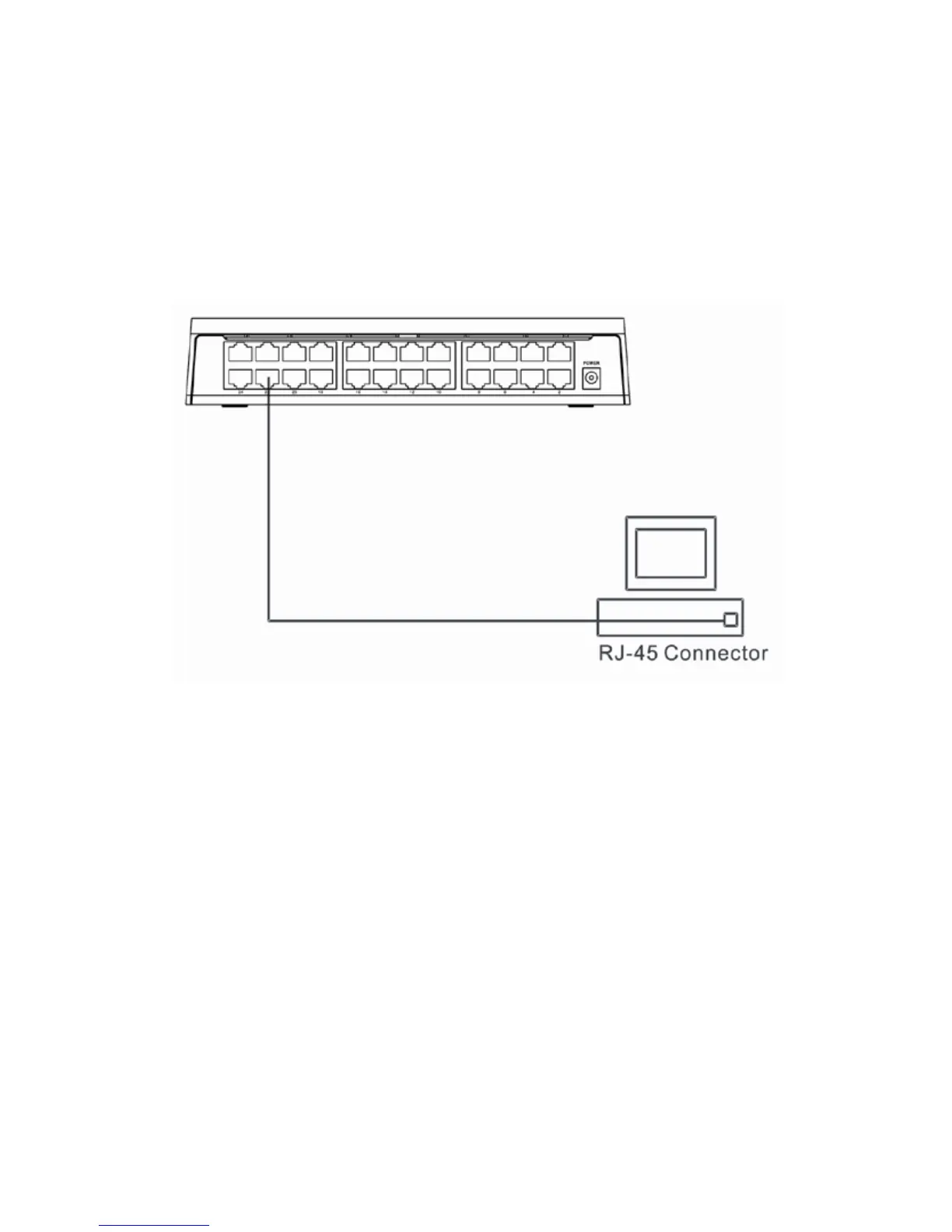

Switch connected to an end node
19
