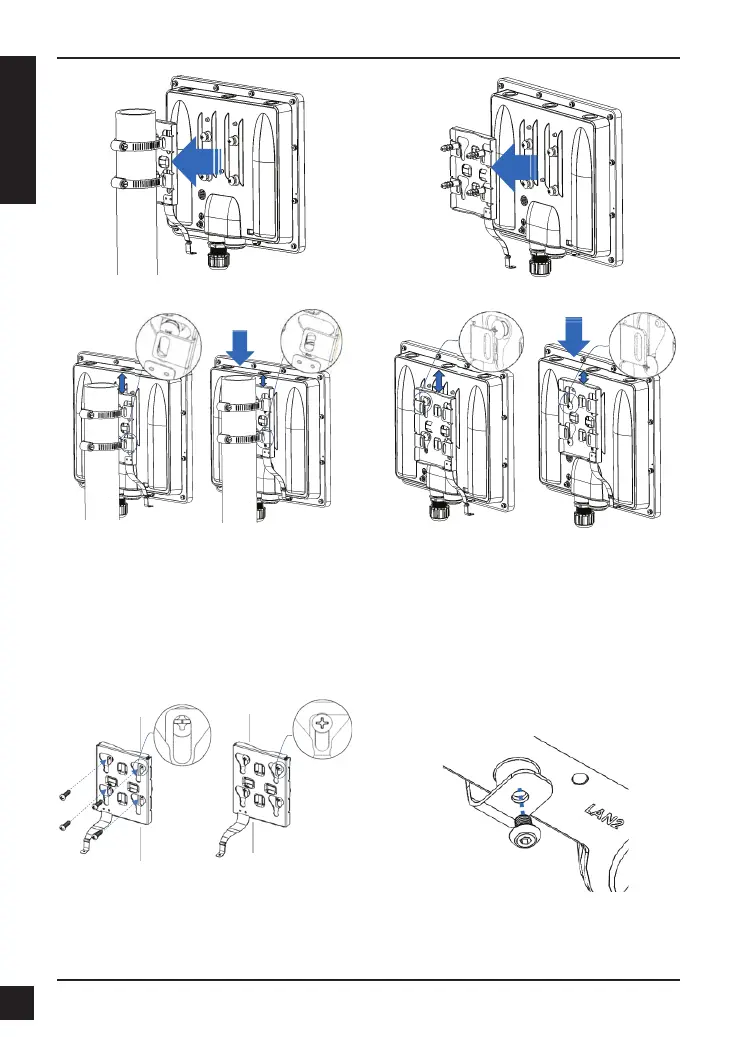

Align the DAP-3666 with the mounting plate
Once aligned, slide the device down so
that the mounting plate securely locks
into the DAP-3666
2B: Mounting The DAP-3666 On
A Wall
Securely mount the base to the wall using
wall plug and wall screw.
Align the DAP-3666 with the mounting plate
Once aligned, slide the device down so
that the mounting plate securely locks
into the DAP-3666
STEP 3: Install Mount Screw to Fix
DAP-3666 On A Mounting (Pole/
Wall Mount base)
Use the included mount screw (hexagonal
hole) to lock the DAP-3666 to the pole/wall
mount
Wall Mount
4
D-Link DAP-3666 Quick Install Guide
ENGLISH
