D-Link Verizon DSL-2750B User Manual

71DSL-2750B User Guide
Routing
Overview

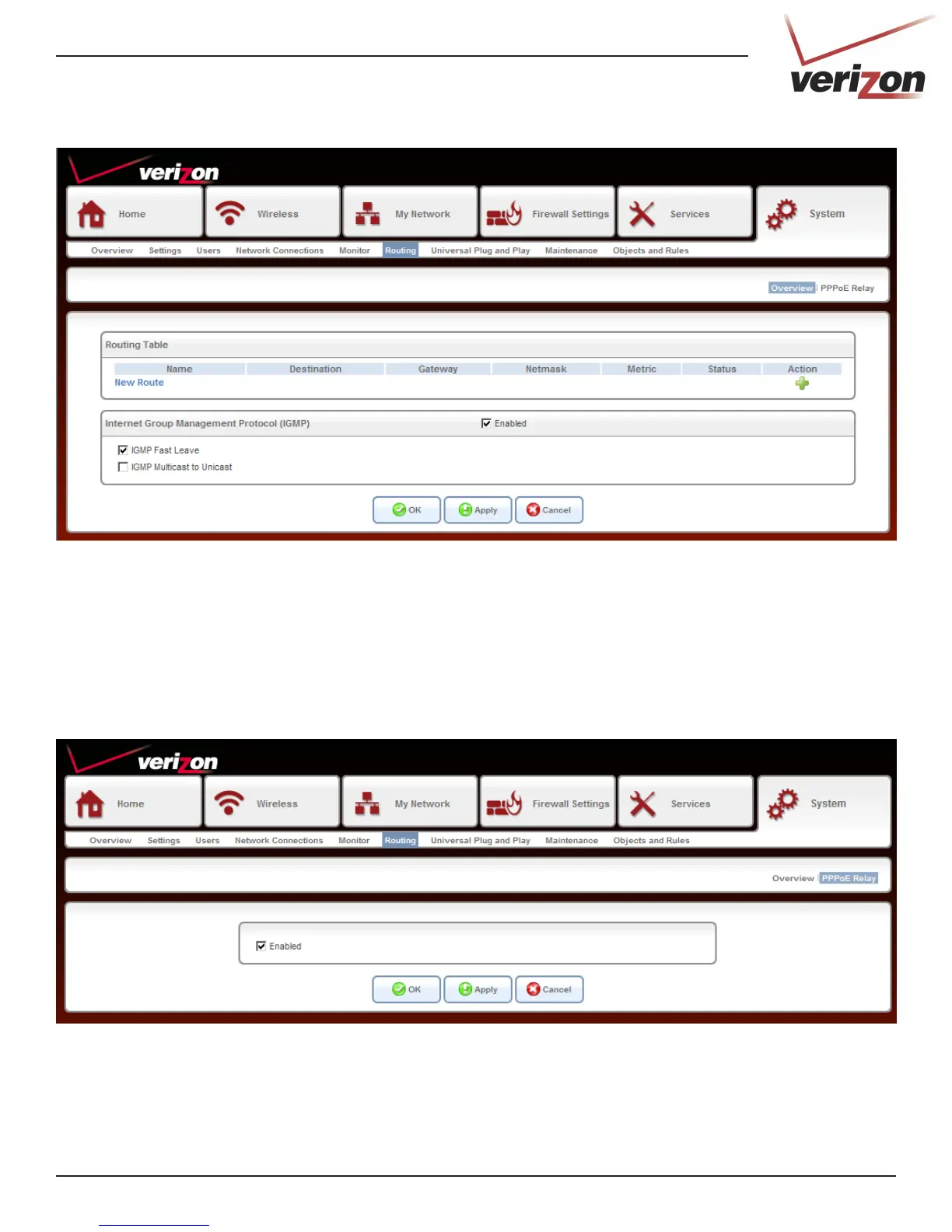

PPPoE Relay
Check the Enabled box to activate PPPoE relay. Click OK to save your settings.
The routing table will display any routes. Check the IGMP Enabled box and check to enable IGMP Fast Leave
and/or IGMP Multicast to Unicast. Click OK to save your settings.

D-Link Verizon DSL-2750B Specifications

General

DSL Technology	ADSL2+
Wi-Fi Standard	802.11b/g/n
Wi-Fi Frequency	2.4 GHz
Wi-Fi Speed	Up to 300 Mbps
Ethernet Ports	4 x 10/100 Mbps
Firewall	NAT, SPI
ADSL2+ Downstream Data Rate	Up to 24 Mbps
ADSL2+ Upstream Data Rate	Up to 1 Mbps
Device Type	Wireless Gateway
USB Ports	1 x USB 2.0
Security	WEP, WPA, WPA2
Weight	300 g
