D-Link Wireless N Router DIR-615 User Manual

13D-Link DIR-615 User Manual
Section 3 - Configuration

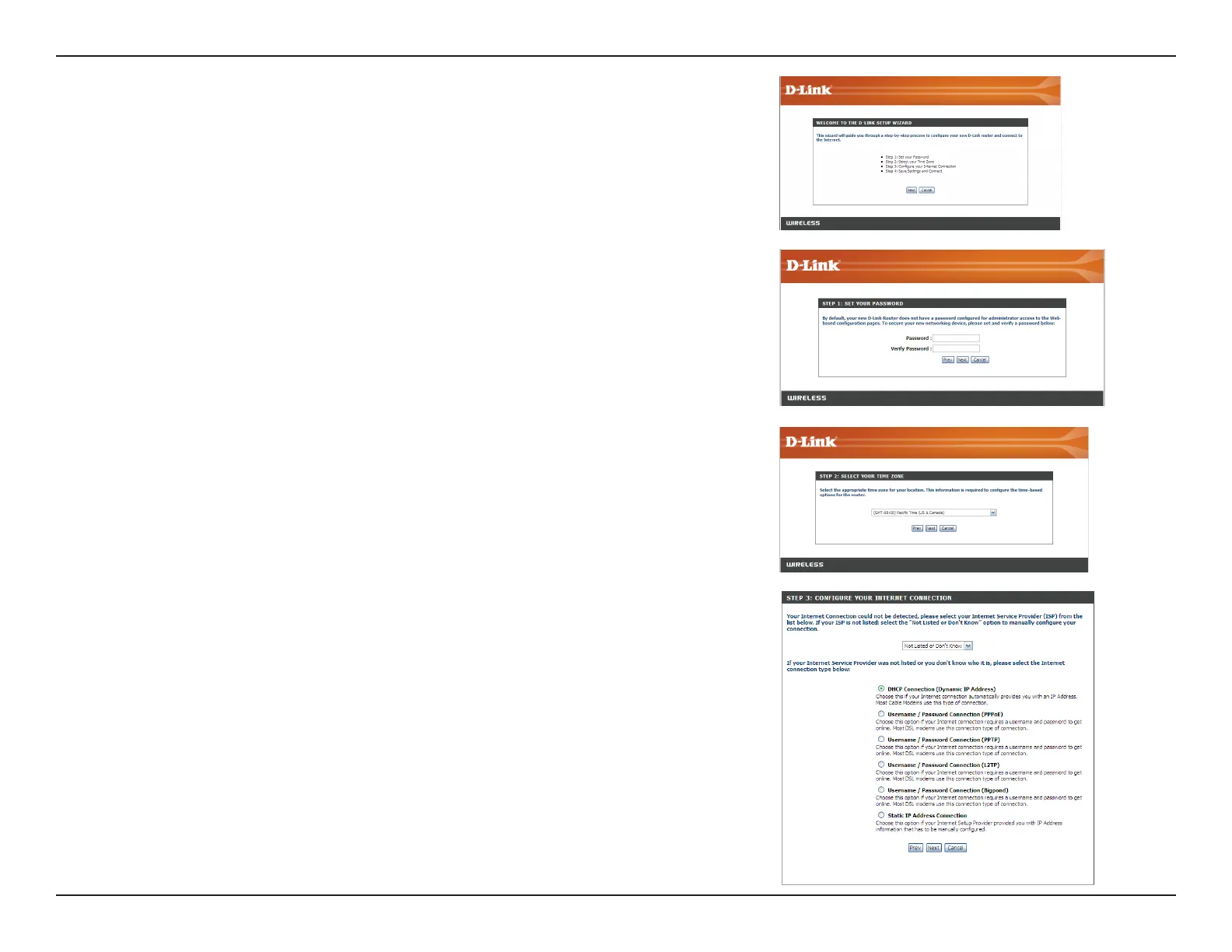

Click Next to continue.
Create a new password and then click Next to continue.
Select your time zone from the drop-down menu and then click Next
to continue.
Select the type of Internet connection you use and then click Next
to continue.

D-Link Wireless N Router DIR-615 Specifications

General

Frequency Band	2.4 GHz
LAN Ports	4 x 10/100Mbps
WAN Ports	1 x 10/100Mbps
Wireless Speed	Up to 300 Mbps
Antenna Gain	5 dBi
Firewall	NAT, SPI
Humidity	10% to 90% non-condensing
Wireless Standard	IEEE 802.11n
Antenna Type	2 x External Antennas
Security	WEP, WPA, WPA2, WPS
Operating Temperature	0 to 40 °C
Storage Temperature	-20 to 65 °C
