Dishwasher Service Manual
Troubleshooting and Repair
74
5. Circ-Sump Assembly Removal

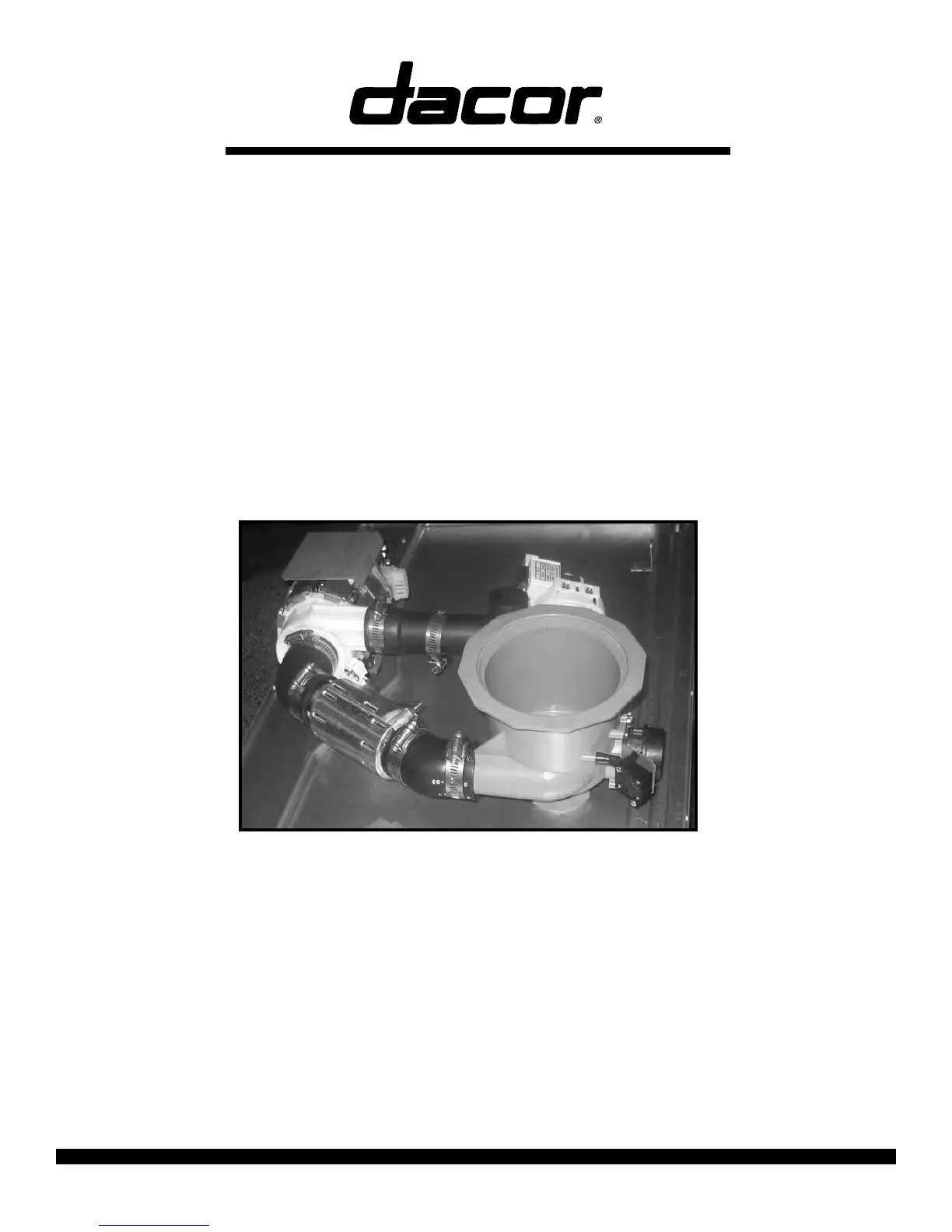

All of the components can be removed as an assembly for ease of service accessibility.
• Release the sump from inside the DW by removing the sump locking nut.
• Disconnect the drain hose from the back of the drain pump.
• Disconnect the main hose, which is connected to the circulation pump and inlet to the
DW from the bottom.
• Slide the circulation pump off of the rubber mounts holding it to its mounting bracket.
• Disconnect all of the wires leading to each component.
• The components can now be removed as an assembly.
