Burners

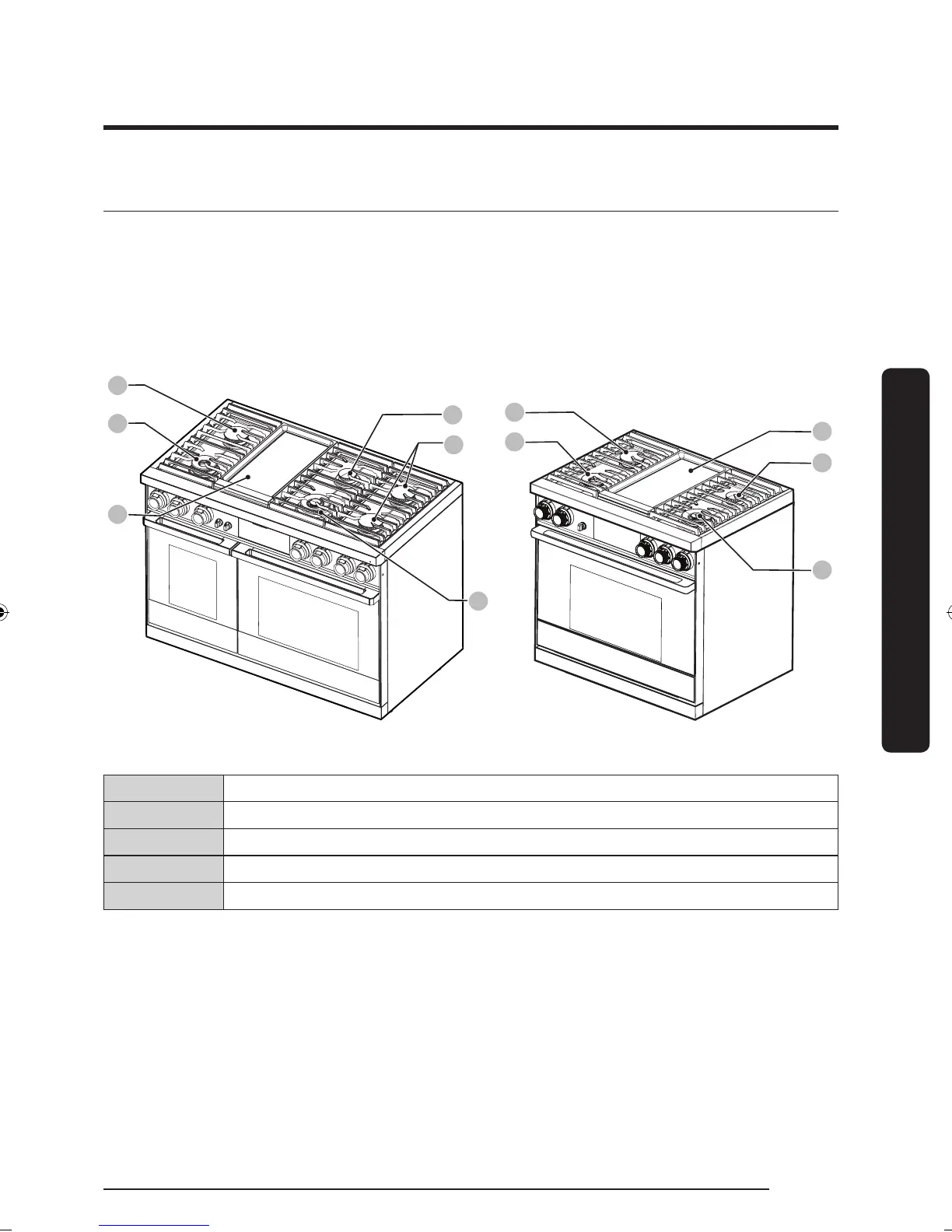

There are four different types of burners on your range. See the diagram below for heat
output and location. Each burner generates a spark when the knob is rotated to the "flame
symbol" spark position. (do not use the cooktop if the spark is not activated). When the
burner lights up, the spark stops automatically. The Gaskets under the burners prevent
spilled liquids from leaking into the range’s internal parts. The range comes with two sets
of burner caps, brass and porcelain (black), to suit your taste.
B
C
E
D
A
C
C
B
A
D
E
DOP36M94DL*DOP48M96DL*
A 22K BTU Dual burner
B 18K BTU Dual burner
C 16K BTU Stack dual burner
D 9K BTU Stack dual burner
E 1.4 KW Electric griddle
