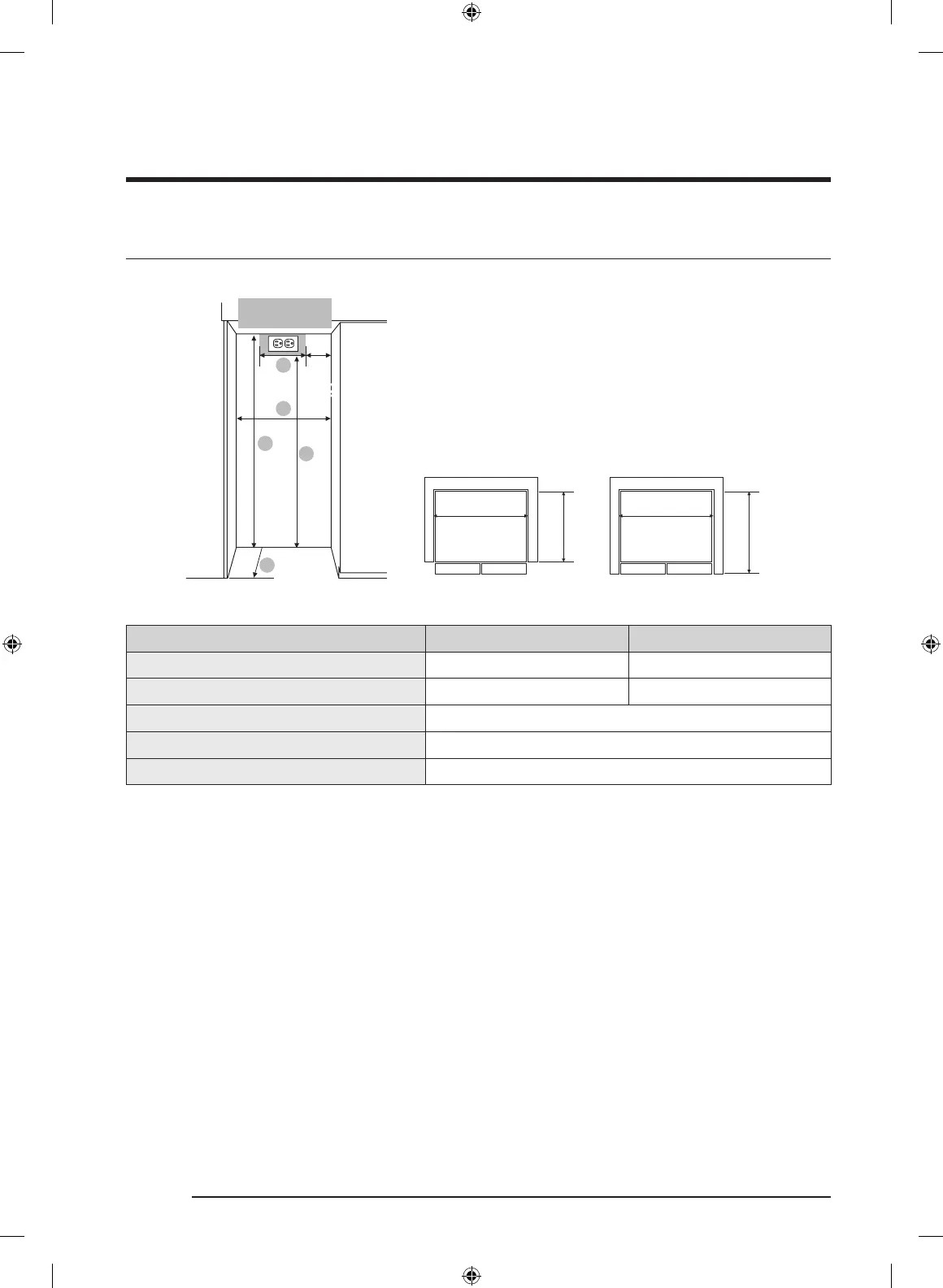

Installation requirements
English26
Cabinet special requirements
D
E
A
C
B
Electric supply
location
10”
(254)
41.5”
Overlay Type Frameless Type
24” 25”
42”
A : Cabinet Width
B : Cabinet Depth
C : Cabinet Height
D : Electrical supply width location
E : Electrical supply height location
Callout 41.5” 42”
A (Width) 41.5” (1054 mm) 42” (1067 mm)
B (Depth) 24” (610 mm) 25” (635 mm)
C (Height) 84” (2134 mm)
D 22” (559 mm)
E 80” (2032 mm)
• B : Includes the standard door panel thickness with 3/4”.
• Installation inside a cabinet of this width allows the refrigerator trim to be attached
directly to the surrounding cabinets.
• For a 42” or wider cabinet, insert the spacers in the side walls of the cabinet to reduce
the gap from the refrigerator.
