3. Installation preparation
Unpack installation materials and accessories.
See the Installation preparation section on Installation Requirement chapter.
4. Attaching the anti-tip-bracket
WARNING
To keep the unit from tipping forward, an anti-tip bracket must be installed. Before
attaching the bracket, ensure that no electrical wiring or plumbing is in the area where the
screws will penetrate. Two such brackets per appliance are required.
CAUTION
Always wear safety glasses and other necessary protective devices or apparel when
installing or working with anchors.
Samsung does not recommend that you anchor the anti-tip bracket in light-weight
masonry (e.g., block, brick) or in new, uncured concrete.
Make sure the wall or the cabinet that the brackets are studded in has enough strength
to withstand the safety load. If you have to use the spacer, make sure that the spacer is
studded on a rear wall that is strong enough to withstand the safety load.

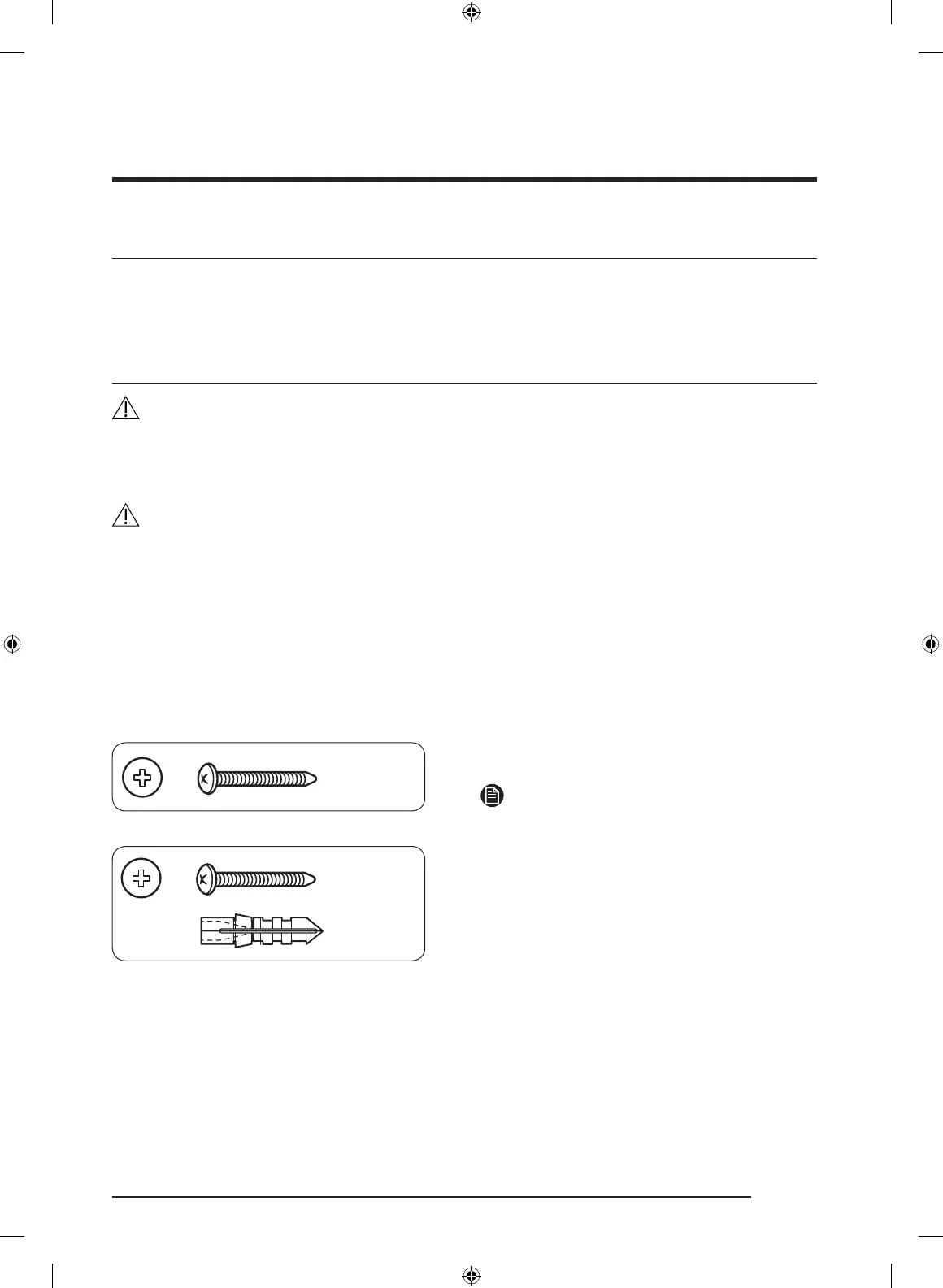

M4x35
Wooden Wall
6 ea
Concrete Wall
M4x35
ø6x30
6 ea
6 ea
1. Bracket height is measured from the
oor and depends on the cabinet
height.
NOTE
Bracket height
= Cabinet height – 4 3/32” (104 mm)
2. Attach the anti-tip brackets. Ensure the
screws hold the bracket tightly.
The anti-tip brackets must extend at least 2” (50 mm) over the appliance to secure the
appliance. If this minimum length cannot be observed for structural conditions it is
possible to do this by fastening a spacer (wood) behind the anti-tip angle.
