16. Attaching kickplate and Toe kickplate

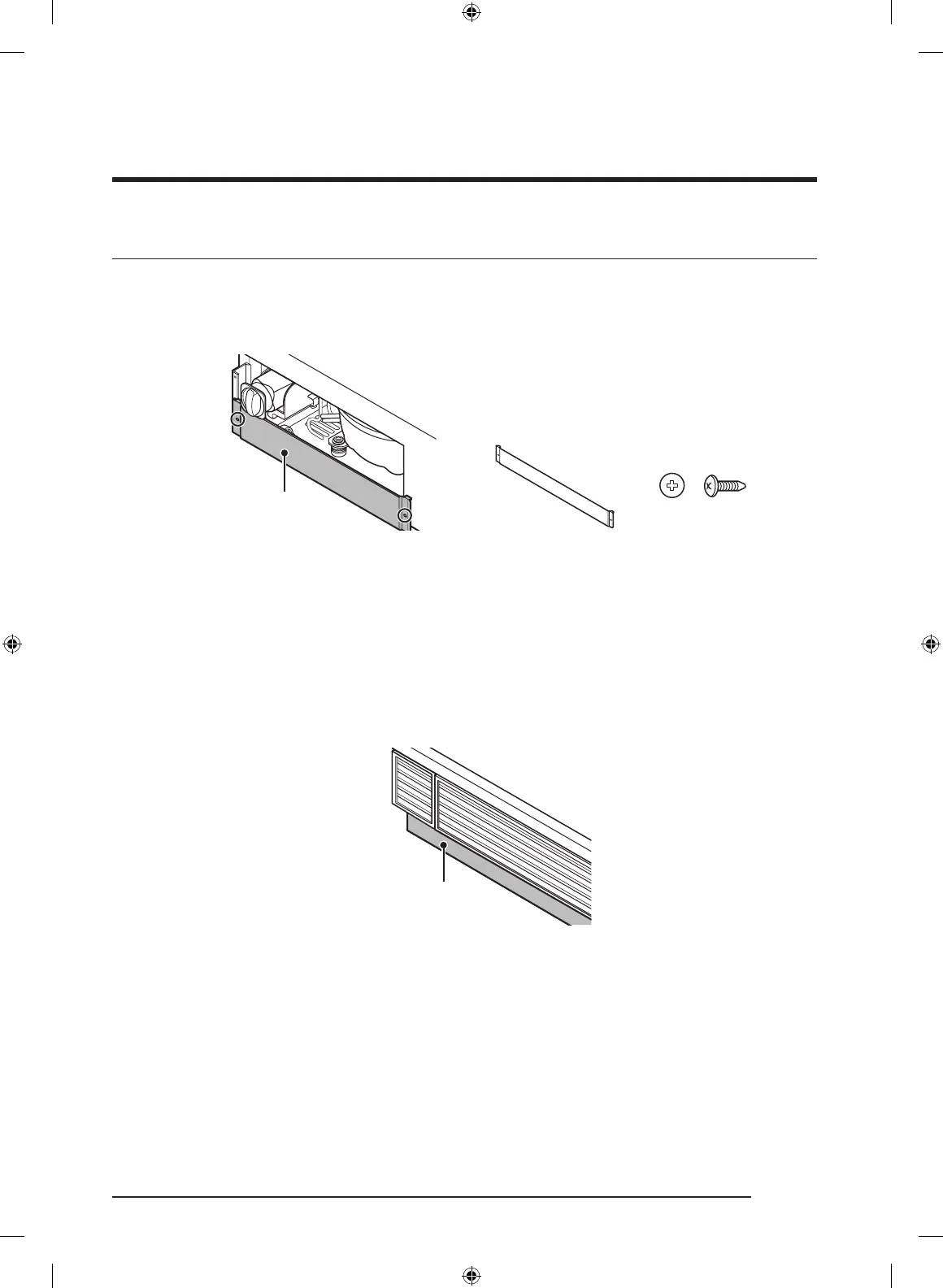

Attaching kickplate
• Drive the screws on both sides to attach the kickplate.
M4x8 2 ea
Kickplate
Kickplate
Attaching Toe kickplate
• The height of the product can be adjusted between 83 3/8” ~ 84 3/8”.
• If you want to use the provided Dacor toe kickplate (4”), note that it was designed for a
product height of 83 7/8” and cabinet height of 84”.
• If you want to use a toe kickplate not provided by Dacor, adjust the height of the toe
kickplate accordingly.
Toe kickplate
