T
echnical Manual - Page 1
17
W305 ERCIII
BLOCK
L1
N
L2
OVEN PILOT
LIGHT
2
L
LIGHT
SWITCH
UPPER
CLEAN
SWITCH
COM
NC
NO
CONVECTION FAN
MOTOR
COOLING FAN
TERMINAL
BOARD
RELAY
40 WATT
BULB
ONLY
LAMP HOLDER
OVEN
CLEAN TEMP.
SENSOR
COOLING FAN
SWITCH
CLOSE
OPEN
BAKE TEMP.
SENSOR
CONVECTION ELEMENT 2200W
BAKE ELEMENT 2200W
YEL
ORG
BLK
BLK
WHT
WHT
WHT
RED
YEL
BLK
BLK
ORG
BLK
WHT
WHT
RED
WHT
ORG
YEL
WHT
RED
BLK
RED
BLU
BLK
BLK
WHT
BLK
BLK
BLK
WHT
BLK
BLK
BLK
WHT
WHT
WHT
RED
RED
BLK
WHT
WHT
WHT

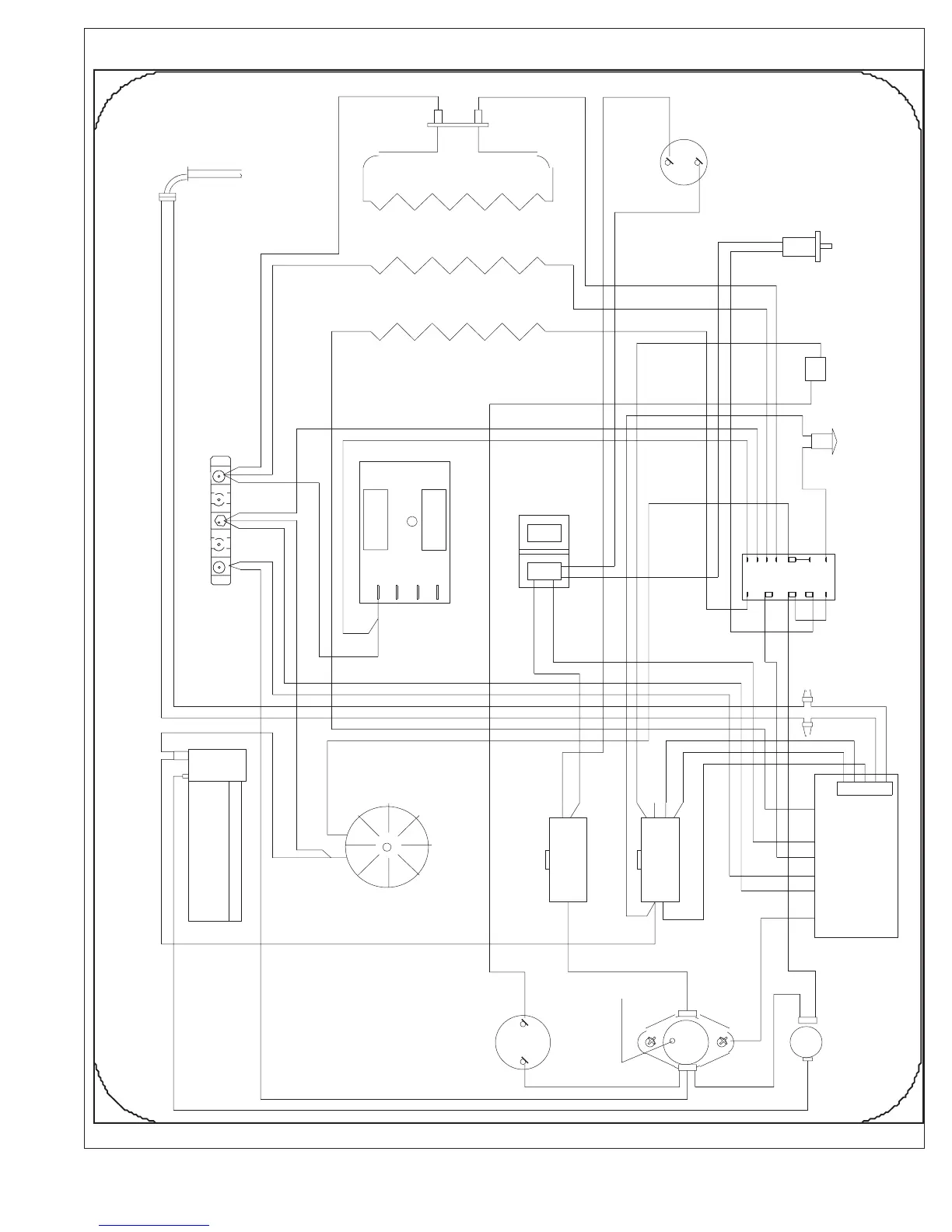

DACOR MODEL W305 WIRING
DIAGRAM WITH ERCIII CONTROL
BLK
BLK
YEL
MOTOR
BLK
TERMINAL
P3
P4
P5
P1
P2
7
6
5
1
3
4
OVEN MODE
SELECTOR
BLOCK
L1
N
L2
CONV. FAN
DOOR SWITCH
ERCIII ELECTRONIC CONTROL
WHT
E9
E7
E6
E3
E2
E1
LOWER
CLEAN
SWITCH
NC
NO
NC
NO
COM
COM
TERMINAL
BOARD
TEMPERATURE
SENSOR
TERM.
CAP
BROIL ELEMENT 3500W
BLK
BLK
2
BLK
WHT
BLU
WHT
WHT
BLK
BLK
BLU
BLU
WHT
WHT
BRN
ORN
TERMINAL
BLK
J1
3
5
7
8
9
OPEN
MANUAL RESET
GRN
BLK
RED
BRN
ORN
YEL
YEL
GRN
136
138
Table of Contents
UL Label Location
3
ERC Failure Codes
4
Serial Tag Location
14
Electrode Detection of a Gas Flame - Theory of Operation
15
Current Path
16
Possible Causes of Continuous Sparking
16
Cracked Ceramic Spark Electrode
17
Faulty Burner Grounding
17
Poor House Ground
17
Erratic Sparking
17
Excessive Failures
18
Consistent but Weak Spark
18
Output Voltage Check Points on Erc/Clock Control
19
No Clock Display
20
No Bake
21
No Broil
22
Pure Convection - no Heat
23
Door Latch Not Running
24
All Models
24
Oven Light - PCS, MCS, ECS
25
No Cooling Fan
26
No Convection Fan
26
No Bake/Broil - PGR
27
Light Not Working (120V Light Circuit)
29
No Bake/Broil Heat
30
Large Oven, no Bake
31
ERC Quick Test
33
Theory of Operation
34
Vent PCB Diagnosis
34
Circuit Board Diagnostics
34
Keypad Diagnosis
34
Possible Failures
35
Unit Dead on Arrival
35
Unit will Not Raise or Lower
36
Vent will Go up but Motor will Not Run
36
Vent Operates by Itself
36
Filter Light Stays on
36
Keypad, Keyboard Replacement - RV Series Raised Vent
37
Quick Check – Main PCB
37
Off Button/Delay off Button
37
Fan Speed - Low Button, Medium Button
37
Clean Filter Button
38
Up/Down Button
38
Upper Limit Switch/Lockout Function
38
Initial Power up
38
Failure Mode, PCB Programming
39
Sensor Resistance Chart
40
CET Diagram
41
CER Diagram
42
CERB Diagram
43
ETT304 Diagram
44
ETT365 Diagram
45
MET365 Wiring Diagram
46
Wiring Diagram
47
ECC Diagram
48
GGC Diagram
49
SGG304 Diagram
50
SGM304, 364 Diagram
52
SGM362EM Diagram
53
SGM464EM Diagram
54
SGM466 Diagram
55
EM4 Diagram
57
Rse
58
Rsg
59
Ersd30
60
ERD30 Preheat Circuit
61
Bake Cycle Diagram
62
Convection Bake Diagram
63
Pure Convection Diagram
64
Broil Cycle Diagram
65
Self-Clean Cycle Diagram
66
ERD Light Circuit Diagram
67
ERD36 Preheat Cycle Diagram
68
Bake Circuit Diagram
69
ERD36 Pure Convection Diagram
70
ERD36 Broil Circuit Diagram
71
ERD36 Self Clean Cycle Diagram
72
ERD36 Light Circuit Diagram
73
18" Oven Preheat Diagram
74
18" Oven - Bake Cycle Diagram
75
18" Oven Convection Bake Cycle Diagram
76
18" Oven Self Clean Cycle
78
18" Oven Light Circuit Cycle
79
48 Range Preheat Bake Cycle - Large Oven
80
48 Range Conv-Bake Cycle - Large Oven
81
48 Range - 36" Oven - Pure Convection
82
48 Range Broil Cycle - Large Oven
83
36" Oven - Self-Clean Cycle
84
48 Range Light Cycle - Large Oven
85
ERG30 - Preheat/Bake Cycle
86
ERG30 Convection Bake Cycle
87
ERG30 Self Clean Cycle
88
ERG30 Light Circuit
89
ERG36 - Preheat/Bake
90
ERG36 - Convection Bake
91
ERG36 - Broil
92
ERG36 - Light
93
ERG36 - Self Clean
94
RSD - Preheat
95
RSD Preheat/Bake Cycle
96
RSD - Convection Bake
97
RSD - Pure Convection
98
RSD Broil Cycle
99
RSD - Self Clean Cycle
100
RSD Light Circuit
101
PGR Bake Circuit
102
PGR Light Circuit
103
PGR Conv Bake Circuit
104
PGR Preheat Circuit
105
PGR Self-Clean Circuit
106
PGR Broil Circuit
107
MRE Ladder Diagram
108
Wire Diagram
111
Self Clean Cycle
113
Pure Convection Cycle
114
Convection Fan
115
Convection Bake Cycle
116
Cooling Fan 180-225 Degrees
117
Broil Cycle
118
Standard Bake Cycle
119
LF Element Circuit
120
RF Element
121
RR Element
122
Lower Oven Bake Preheat
124
Lower Oven Broil
125
Lower Oven - Self Clean
126
Upper Oven Preheat
127
Upper Oven Bake Cycle
128
Upper Oven Pure Convection
129
Upper Oven Broil Cycle
130
Upper Oven Self Clean Cycle
131
Cycle Charts
132
Cycle Charts
133
W305 ERCIII Wiring Diagram
137
Cpo
138
CPS Single Convection
141
CPTS (Double Oven, Single Convection)
142
CPTS Single
143
CPTD (Double Oven, Double Convection)
144
EOG36 Wiring
145
Dwo, Edwo, Tdwo
146
Ewo, Mwo, Pwo
147
Dmo24
148
Dmo2420
149
Pmor
150
DCM
151
Ehdr, Ilb8
153
Ehd30, 36
154
Ehd42, 48, 54
155
Rv
156
Ivs1
157
Ivs2
158
5
