Technical Manual - Page 22
DOOR LATCH NOT RUNNING
(All Models)

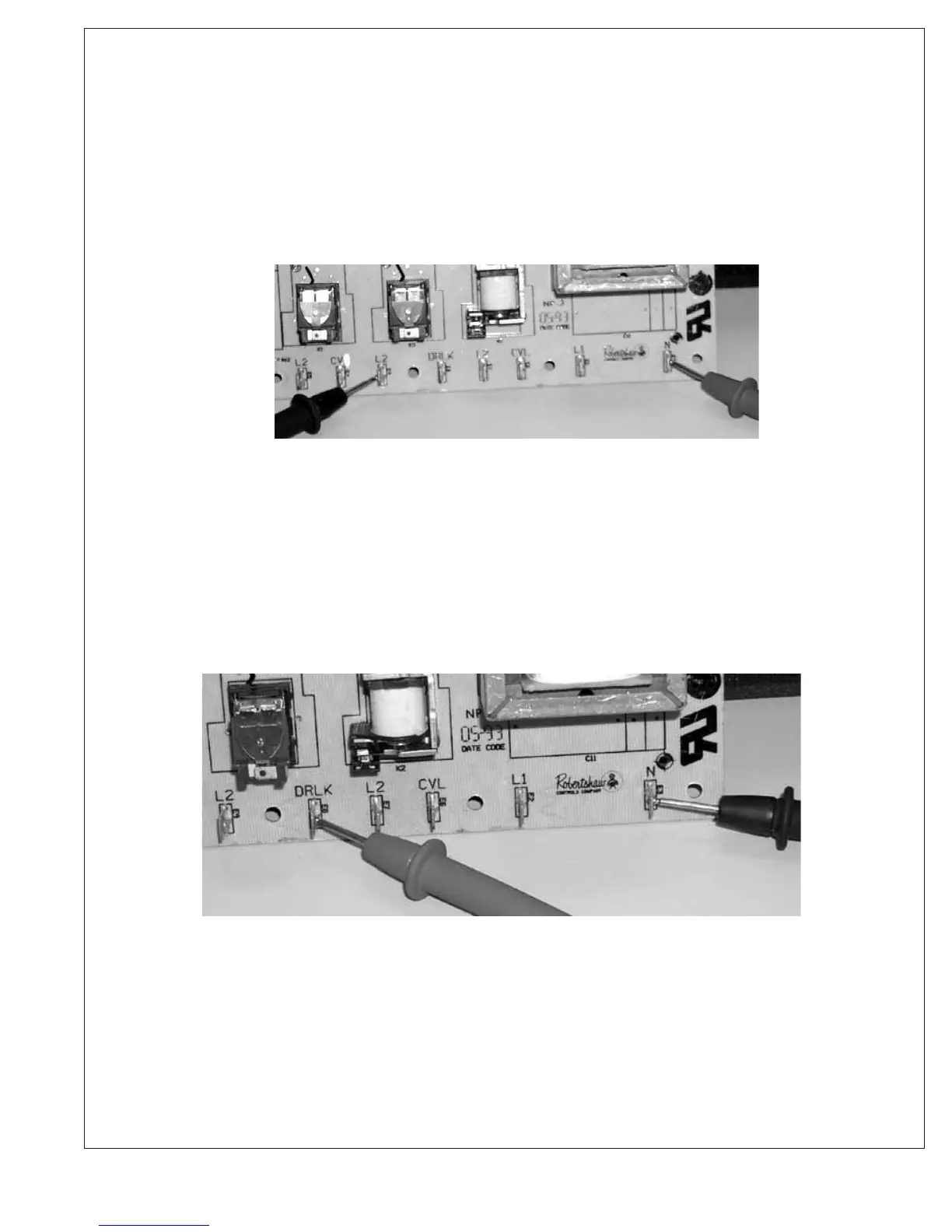

1. Check voltage at L2 just to the left of the DRLK relay. (door lock relay) you should have
120V present. See picture for test points.
If there is no voltage present, check wiring from L2 back to terminal block. If you have
voltage at L2 go to step 3
2. Program oven into self-clean cycle.
3. Check voltage from the DRLK (door lock relay) to neutral. See picture for test
points. Should have 120 Volts. If no voltage is present replace relay board.
If voltage is present check wiring to door latch assembly. If ok replace door
latch assy.
4. If you do not have 120VAC, check for (+ or -) 24V DC at molex connector on the
relay board. Pins 1 and 9 on relay board should read 24V DC (+or-); if not then replace
the relay board.
