Installation Requirements
Custom Handles
Before installing a custom panel •
assembly, you must install the custom
handle hardware. The handle and handle
mounting hardware are not provided with
the refrigerator.
Dacor recommends handles with larger •
D-style pulls. Any handle designed for
use with an appliance should produce
satisfactory results. Handle kits are
available through your Dacor dealer.
Handle kits do not include the •
necessary mounting screws since
screw length required varies with the
total thickness of the panels. The
panel craftsman must determine and
obtain the proper fasteners for the
application. If using screws with thick
heads, they must be countersunk into
the panel before installing the handles.
IMPORTANT: Dacor does not advise the
use of single pull knobs.
Custom Panels and Handles - IF36 Series Models (Continued)

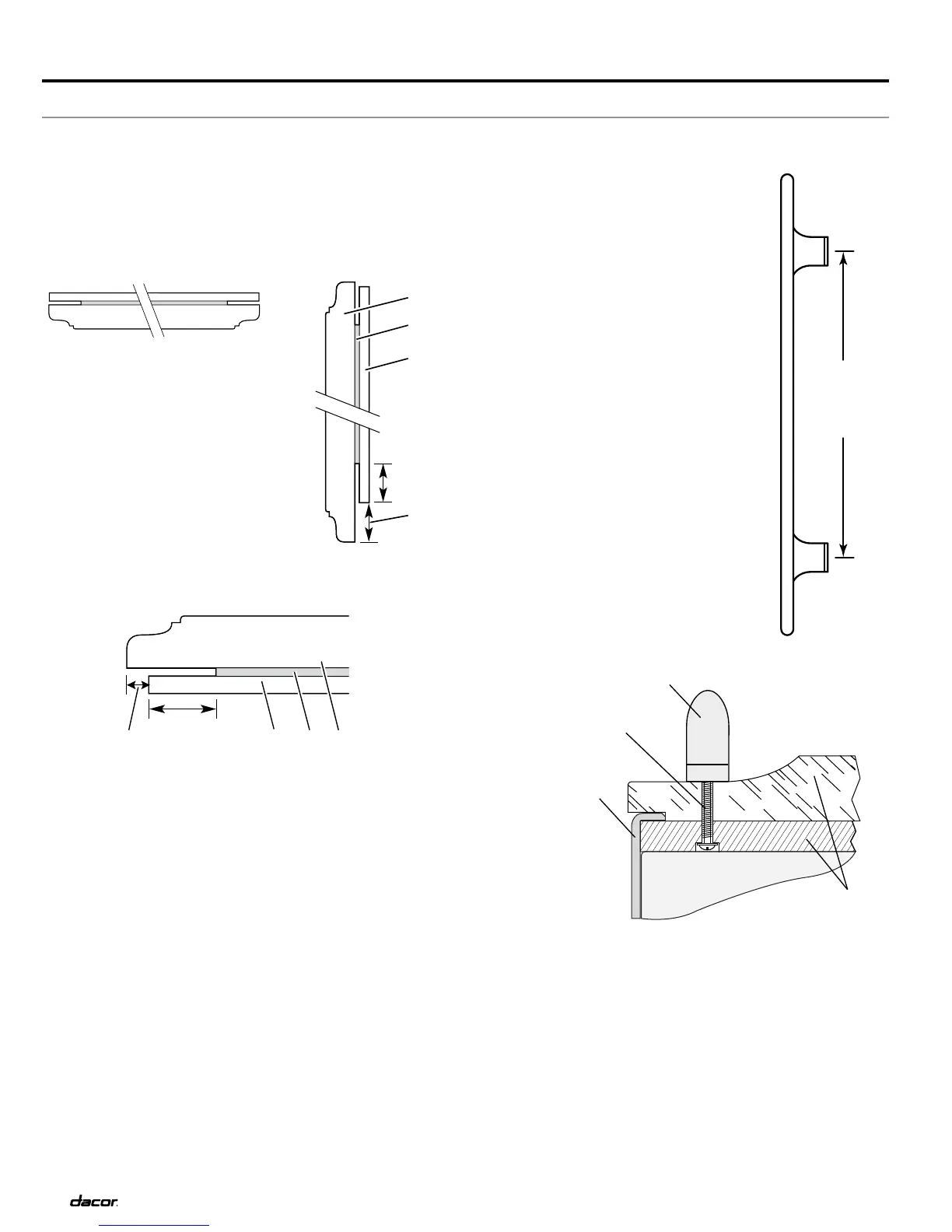

Custom Panels Construction Information
See page 9 for overall dimensions.
NOTE: Spacer panels must be at least 1” (2.5 cm) from the top,
bottom, and side edges of the backer panel.
3-Piece Grille Overlay Panel Configuration
3-Piece Door Overlay Panel Configuration
1-Piece Overlay Panel Configuration
In some cases, your cabinet manufacturer may choose to work
with one panel routed for the different dimensions. Follow these
panel dimensions and placement instructions to be sure that the
custom overlay panels will fit properly.
20” Typ.
(50.8 cm)
36” Max.
(91.4 cm)
1”
(2.5 cm)
A. Offset dimension
B. 1/4” (6.4 mm) backer panel
C. 1/8” (3.2 mm) spacer panel
D. 3/4” (1.9 cm) decorative overlay panel
A B
C
D
1”
(2.5 cm)
A. Offset dimension
B. 1/4” (6.4 mm) backer panel
C. 1/8” (3.2 mm) spacer panel
D. 3/4” (1.9 cm) decorative overlay panel
A
B
C
D
Top View
Side View
A. Countersunk screw
B. Handle
C. Door panel assembly
Trim frame
surrounding door
A
B
C
Door
Handle Detail
