15
Installation Instructions

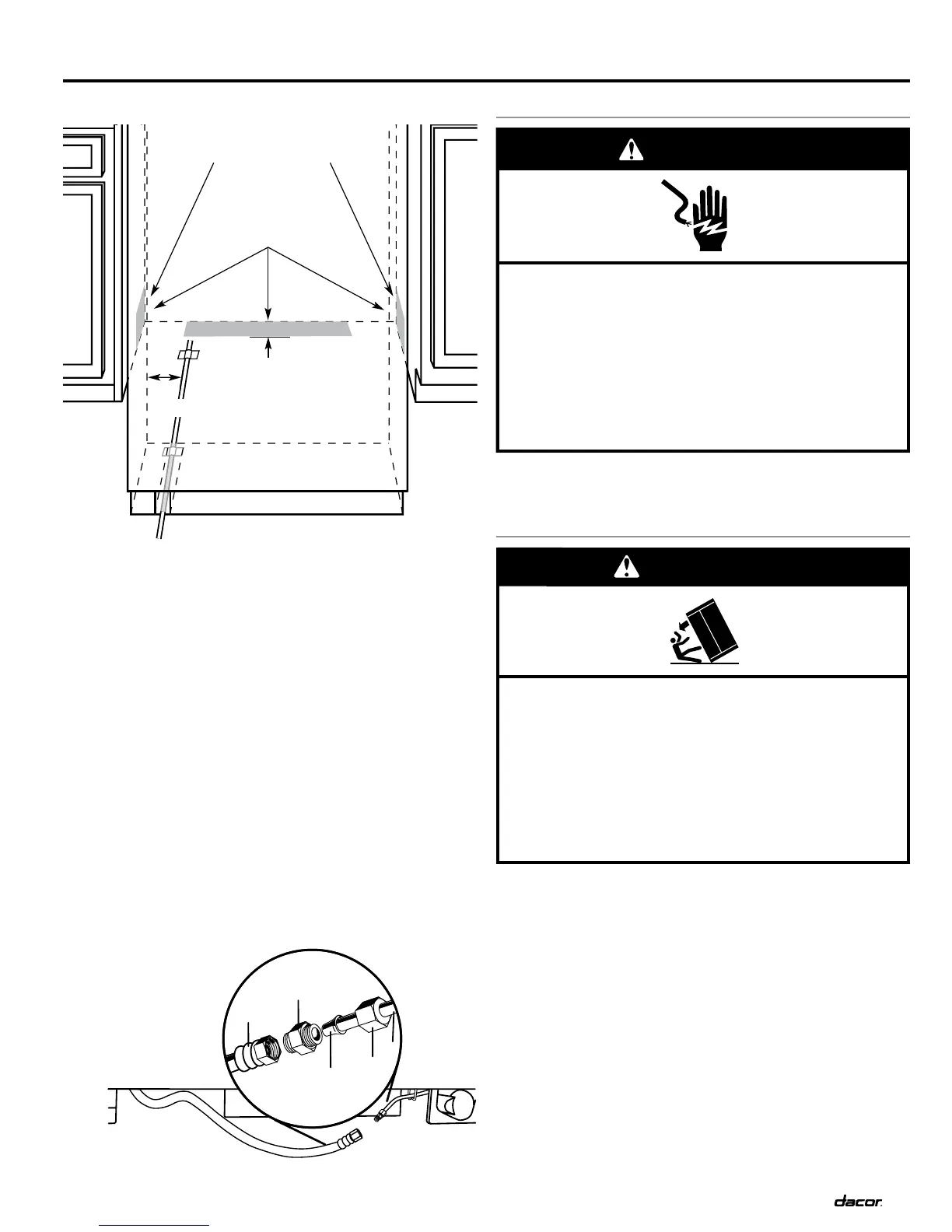

Connecting to Refrigerator
NOTE: The flexible codes approved water supply line can connect
to the supply valve through the floor or through the side cabinets,
as indicated by the gray boxes above.
Unplug the refrigerator or disconnect power.1.
Connect the 7 ft (2.1 m) minimum flexible codes approved 2.
water tube to the water supply valve.
Flush the main water supply line to remove particles and air in 3.
the water line. Allow enough flow so that the water becomes
clear.
Tape the water supply line to the floor, 7” (17.8 cm) from the 4.
left side of the refrigerator. Tape along the length of the tubing,
which will allow it to pass beneath the refrigerator without
interference.
NOTE: Allow a minimum of 26” (66.0 cm) of flexible codes
approved water supply line to be loose at the front of the
refrigerator for connecting to the household water line.
Connect the water supply line to the refrigerator.5.
NOTE: If the main water shutoff valve is behind the
refrigerator, a secondary water shutoff valve may be installed
in line with the water supply line at the front of the product.
Turn on the water valve and check all connections for leaks.6.
Plug in Refrigerator
Set control switch at top of cabinet to the off position.1.
Plug into a grounded 3 prong outlet.2.
Move to Final Location
IMPORTANT: To avoid floor damage, make sure levelers are
raised (not touching floor) and refrigerator is on rollers before
moving.
Place top of cardboard carton or plywood under refrigerator. 1.
Remove dolly.
Do not remove film on the outside.2.
Move the refrigerator straight back, evenly into the opening. 3.
Be sure that the refrigerator side trims are not interfering with
the door opening. Also, be sure that the water tubing is not
kinked and the power supply cord is on top of the refrigerator.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING
A
B
E
C
D
A. Household water line
B. Coupling
C. Bulb
D. Nut
E. Refrigerator water
tubing
WARNING
Tip Over Hazard
Refrigerator is top heavy and tips easily when not
completely installed.
Keep doors taped closed until refrigerator is
completely installed.
Use two or more people to move and install
refrigerator.
Failure to do so can result in death or serious injury.
1” x 1”
(2.5 cm x 2.5 cm)
Possible water
line locations
1”
(2.5 cm)
7”
(17.8 cm)
To Next Page
