DISCRIPTION OF OPERATING SYSTEM 4-17
628O428A
Move the front wheel drive lever rear-
ward (B) to engage the front wheel drive
mechanism. For ordinary farming work,
keep the lever in the forward position (A)
to operate in the 2WD mode.
RECOMMENDED USES FOR FRONT
WHEEL DRIVE:
1. On slopes and in wet fields.
2. Front end loader operation and towing
where extra traction is needed.
3. In sandy soil.
4. Rotary tilling in hard soil.
5. Entering a field or other uneven terrain.

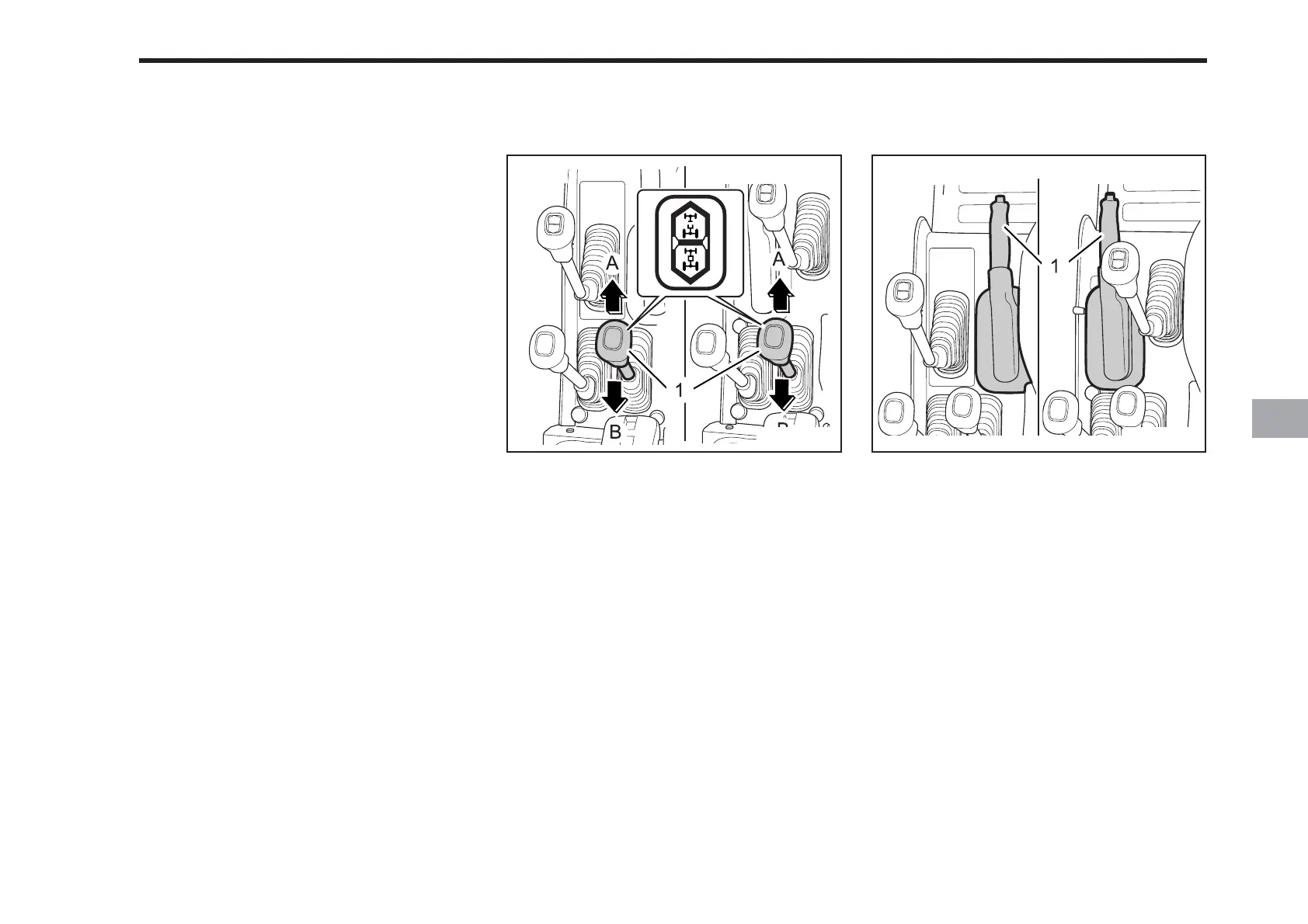

FRONT WHEEL DRIVE LEVER
(1) Front Wheel Drive Lever
(A) Disengagement (B) Engagement
628O429A
PARKING BRAKE LEVER
1. To set the parking brake, pull the brake
lever up.
2. To release the parking brake, push in
the button and release the lever.
(1) Parking Brake Lever
INDEPENDENT PTO
The independent PTO mode is used for
normal PTO operations. It operates con-
tinuously at a constant speed, indepen-
dent of the transmission speed
selections. The PTO shaft turns in a
clockwise direction (as viewed from the
rear of the tractor).
GROUND SPEED PTO
The PTO speed will be proportional to
the tractor speed. The PTO shaft will stop
when the tractor is stopped. It is impor-
tant to note the PTO shaft will rotate in
the opposite direction when the tractor
is in reverse.
DK65 DK75/80/90 DK65 DK75/80/90
