CONNECTING HYDRAULIC ACCESSORIES
- DOUBLE ACTING VALVE (IF EQUIPPED)
628O523A
WARNING
To avoid personal injury:
When not using the PTO, lightly
coat the shaft with grease and in-
stall the protective cap.
· Before connecting or disconnect-
ing hydraulic lines, stop the en-
gine and relieve the pressure.
· Do not use hands to check for oil
leakage.
CONNECTION AND DISCONNECTION OF
COUPLERS
HOW TO CONNECT THE COUPLER
1. Clean dust, dirt, grease and moisture
from both couplers.
2. Open the dust cover on the female
coupler.
3. Insert the male coupler into the female
coupler.
4. Pull the male coupler to confirm that
the coupler is fully connected.
HOW TO DISCONNECT THE COUPLER
1. First, lower the attachment to the
ground to remove the pressure within
the hydraulic hose.
2. Clean the coupler.
3. Disconnect the coupler after remov-
ing the pressure by moving the con-
trol lever.
4. Clean oil and dust from the coupler,
and replace the dust cover.
DK65
DK75/80/90

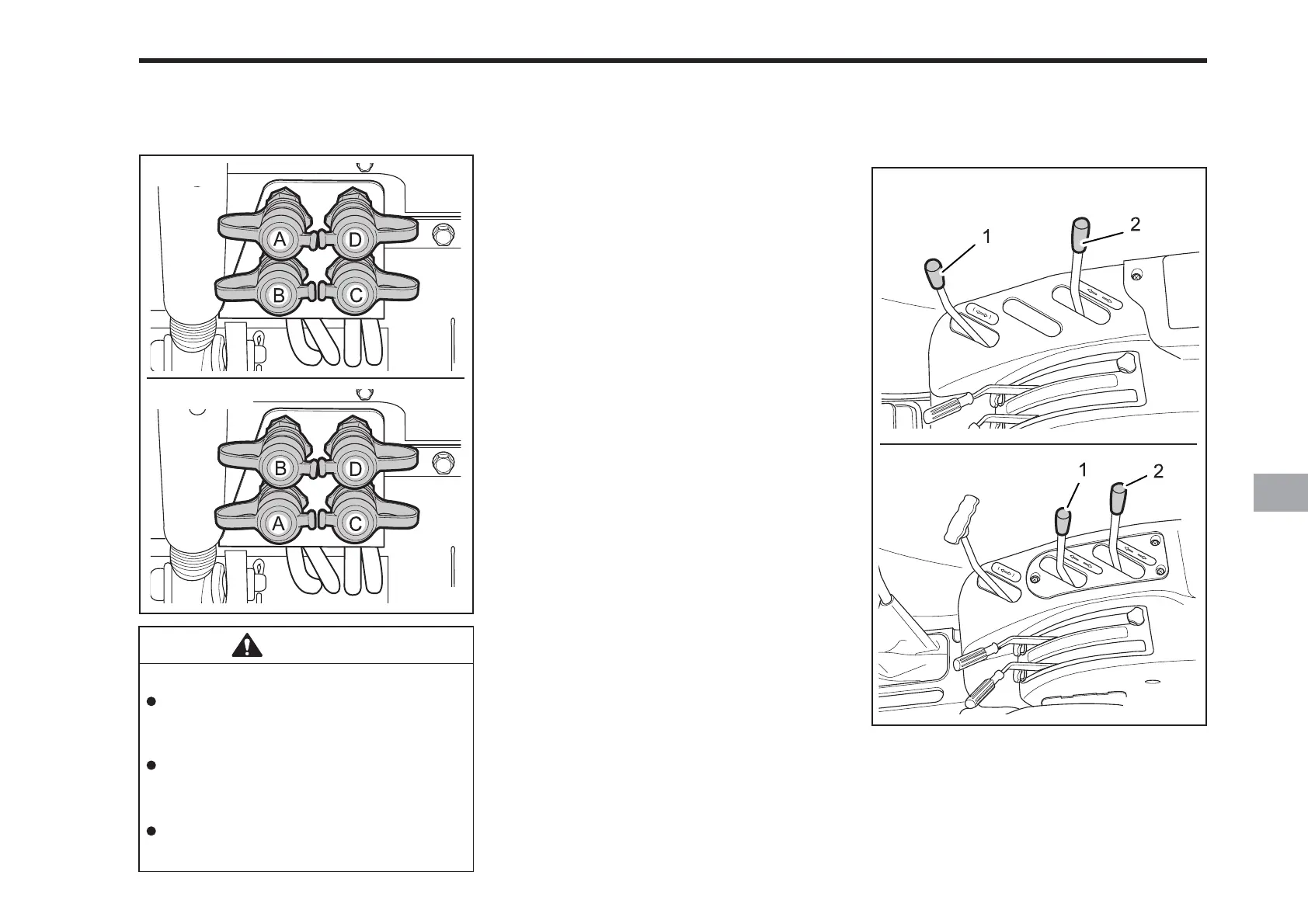

OPERATION OF DOUBLE ACTING HY-
DRAULIC CONTROL VALVE
628O524A
(1) Lever1 (2) Lever2
DK65
DK75/80/90
