The lowering speed of the 3-point hitch
can be controlled by adjusting the 3-point
lowering speed knob.
CAUTION
To avoid personal injury:
Set the hitch lowering speed to 2
seconds or more. A fast lower-
ing speed can cause damage or
personal injury.

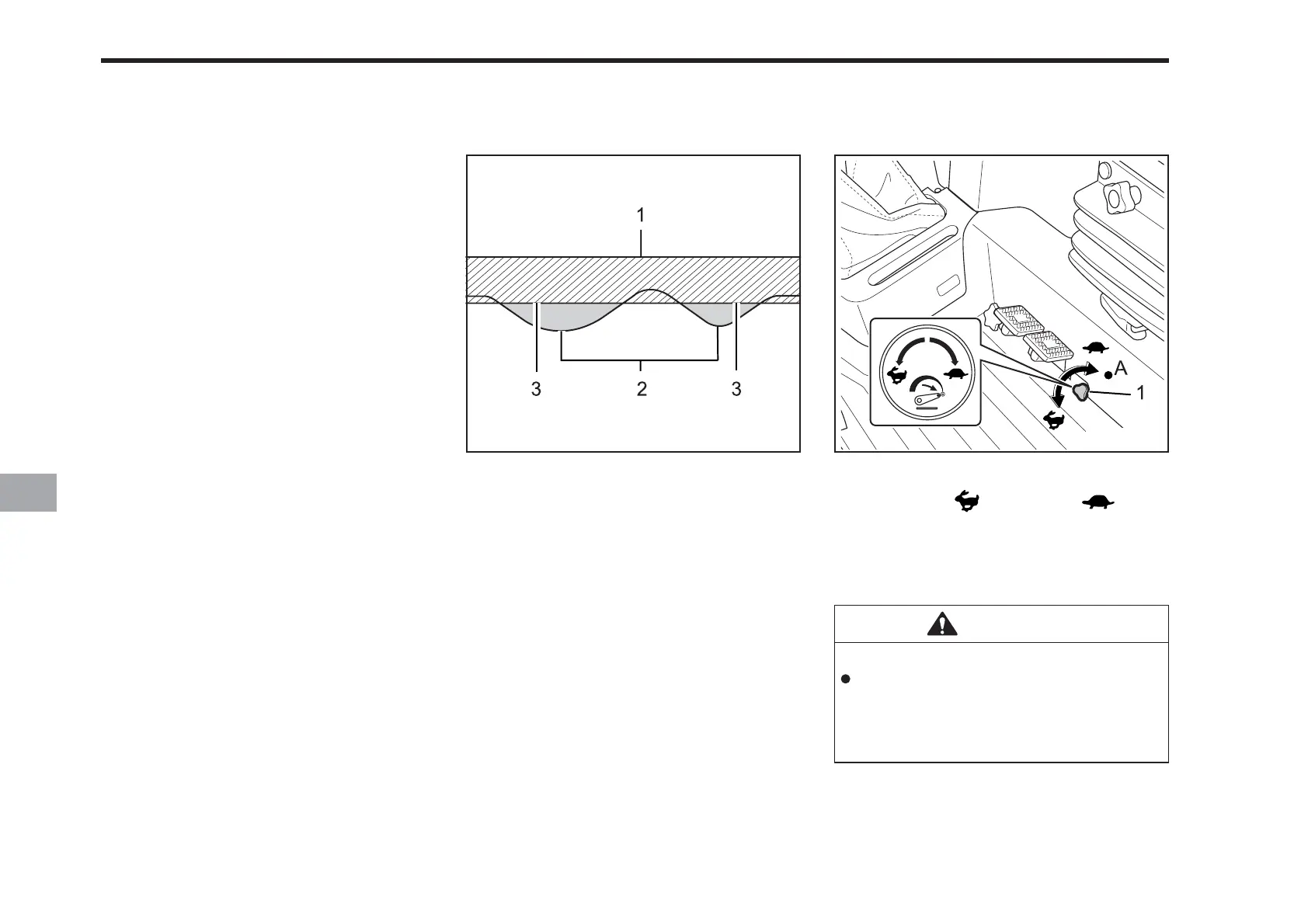

(1) 3-point hitch lowering speed knob
(A) Lock ( ) Fast ( ) Slow
3-POINT HITCH LOWERING SPEEDMIXED CONTROL
In the draft control mode; when draft
decreases, the implement automatically
lowers to increase draft. To avoid hav-
ing the implement lowered too far, set
the position control lever at the lowest
working depth desired. Move the draft
control lever to the point where the imple-
ment is at the desired depth. This pre-
vents the implement from going too deep
and causing loss of traction and ground
speed.
628O521A
(1) Ground Surface (2) Soft Soil
(3) Implement Penetration Limit
1. The draft control is used with imple-
ments that create a draft force such
as plows and other tillage tools that
are attached to the 3-point hitch.
2. In the floating range, the implement will
be completely lowered.
3. In the draft control range, the hydrau-
lic system will control the depth of the
implement in order to maintain a con-
stant load and to minimize wheel slip.
4. If the draft force is higher than the
resistance of the implement, the imple-
ment will be lifted up until the forces
are equalized. If it is lower than the
resistance of the implement, the imple-
ment will be restored to its original
position.
5. By selecting a shallow tool depth, the
implement can be lifted up by a smaller
draft resistance.
