Daedong DK90 - Checking and Adjusting Front Axle; Toe-In Adjustment; Draining Water from the Clutch Housing

MAINTENANCE 6-15

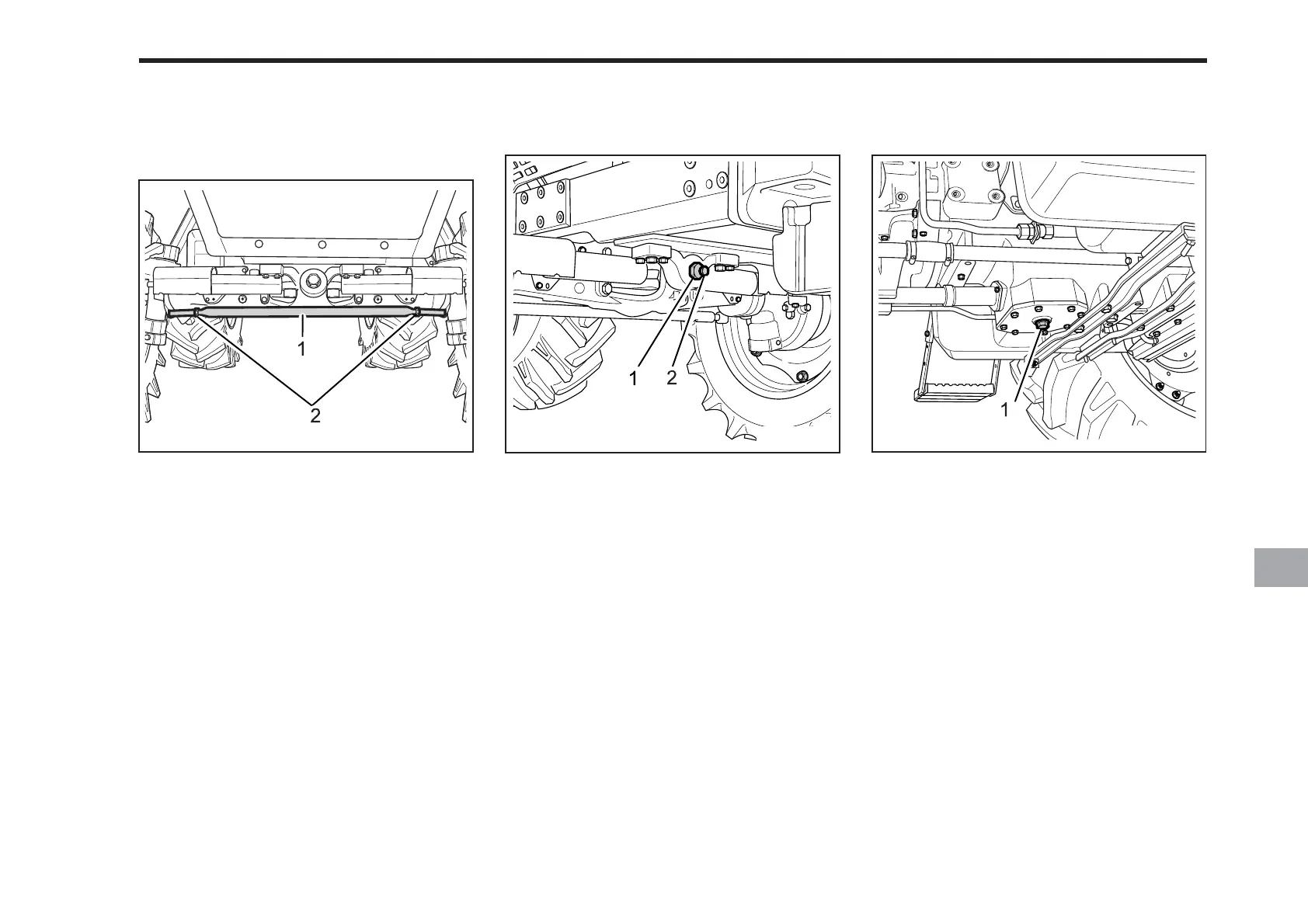

TOE-IN ADJUSTMENT
628O621A
(1) Tie Rod
(2) Lock Nut
1. Loosen the lock nuts and turn the tie
rod; adjusting the rod length until the
proper toe-in measurement is obtained.
2. Retighten the lock nuts.
DRAINING WATER FROM THE CLUTCH HOUSING
628O623A
Water can accumulate in the clutch hous-
ing if submerged in water or during pres-
sure washing. Remove the drain plug from
the clutch housing every 50 hours to
drain any water from the housing.
(1) Drain Plug
CHECKING AND ADJUSTING FRONT AXLE
628O622A
If loose or improperly adjusted, front axle
vibration can occur. To adjust the front
axle, loosen the nut and fully tighten the
bolt. Loosen the bolt 1/16 of a turn and
retighten the nut.
(1) Nut
(2) Bolt
