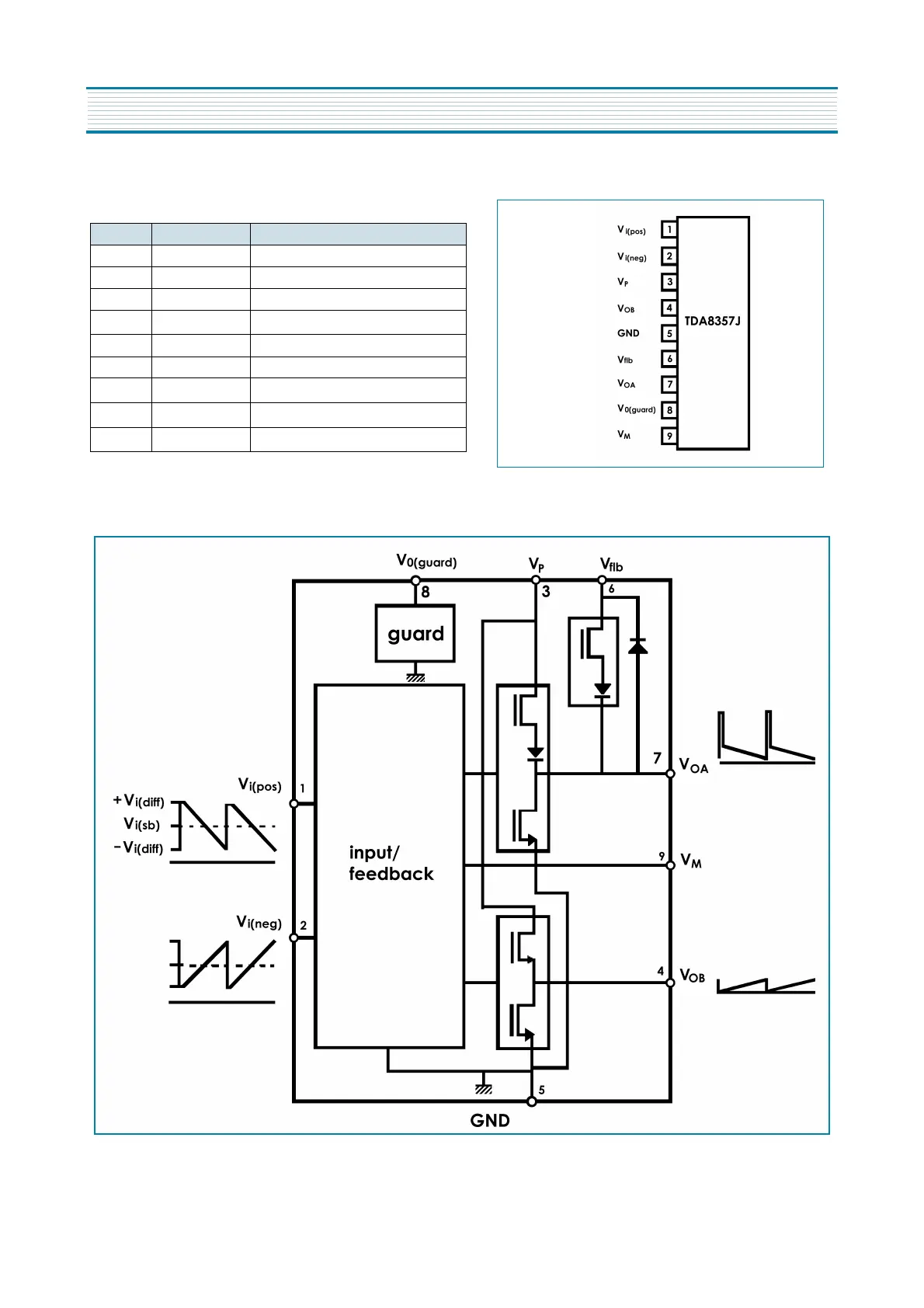

Pinning
Pin Symbol Description
1 Vi(pos) input voltage (positive)
2 Vi(neg) input voltage (negative)
3 Vp supply voltage
4
V
OB
output voltage B
5 GND ground
6 Vflb flyback supply voltage
7
V
OA
output voltage A
8
V
O(guard)
guard output voltage
9
V
M
input measuring resistor
