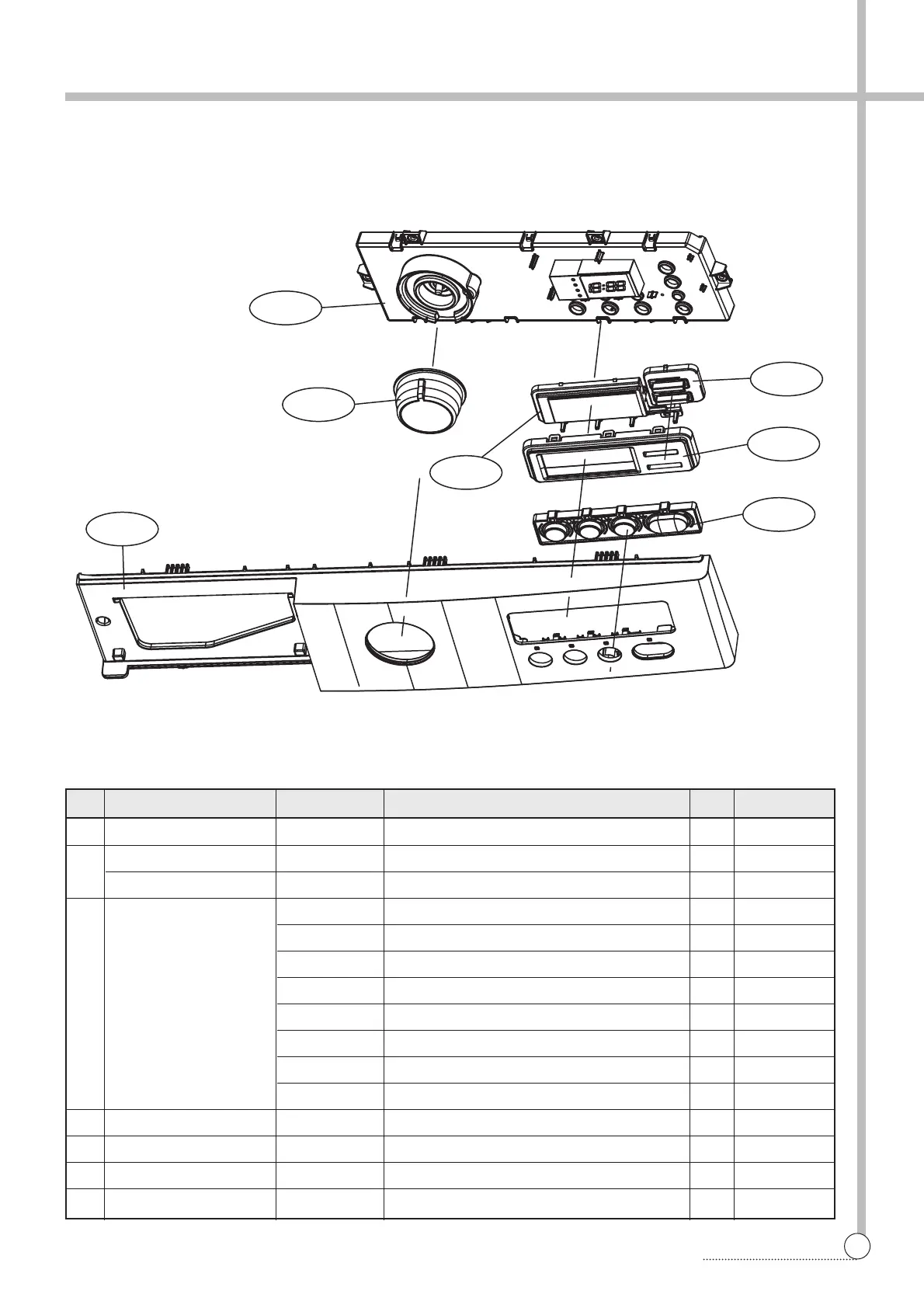

EXPLODE VIEW AND PARTS LIST
■ PANEL FRONT AS
B01 PANEL F 36142T4C00 HIPS 1
B02 KNOB DIAL O 3616649800 ABS 1
KNOB DIAL I 3616649900 ABS 1
B03 PCB AS PRPSSWP010 BB,HOT,N-VDE 1
PRPSSWP011 NON BB,COLD,N-VDE 1
PRPSSWP012 BB,COLD,N-VDE 1
PRPSSWP013 NON BB,HOT,N-VDE 1
PRPSSWP015 BB,HOT,VDE 1
PRPSSWP016 NON BB,COLD,VDE 1
PRPSSWP017 BB,COLD,VDE 1
PRPSSWP018 NON BB,HOT,VDE 1
B04 BUTTON FUNCTION 3616649700 ABS 1
B05 DECORATOR WINDOW 36116DWJ00 ABS 1
B06 BUTTON RESERVE 3616649600 ABS 1
B07 WINDOW DISPLAY 3615512500 TR-ABS 1
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
