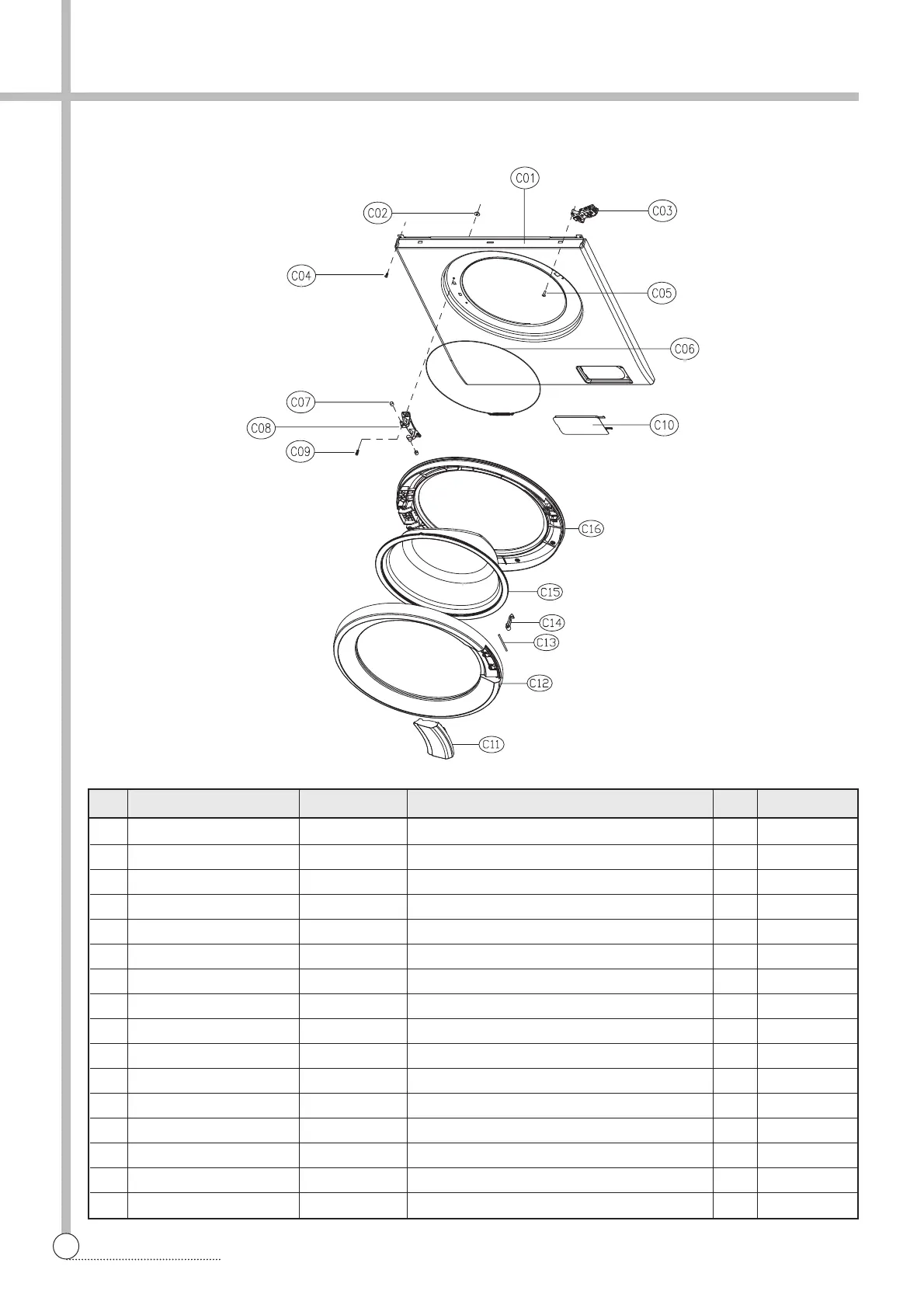

EXPLODE VIEW AND PARTS LIST
■ CABINET FRONT AS
C01 CABINET *F 361081WD00 SECD T0.7 , D-NT1011'S 1
C02 NUT HEX 7S627W50X1 NUT FLANGE M5X0.8P MFZN 2
C03 SWITCH DOOR LOCK 3619047100
DL-LC.BITRON_3P/KM,DM CONCORE 250V 16A BI-METAL
1
C04 SCREW TAPPING 3616029950 TTS"S" HEX F/L 4*8 5
C05 SCREW TAPPING 7122401408 T2S TRS 4X14 SUS,STS 2
C06 CLAMP DOOR AS 3611204810 HSW3, D1.4, GS, M/F 1
C07 CAP HINGE DOOR 3610916500 POM 2
C08 HINGE DOOR 3612904600 ALDC , D-NT1011'S 1
C09 SCREW TAPPING 3616051229 STS430 F/L BOLT(SE) 5*12 2
C10 COVER PUMP FILTER 3611433300 HIPS, D-NT1011'S 1
C11 HANDLE DOOR 3612614600 ABS, D-NT1011'S 1
C12 FRAME DOOR *O 36122WD400 ABS, D-NT1011'S 1
C13 PIN HANDLE 3618210600 SUS304, D3, L60 1
C14 HOOK DOOR 3613101210 ZNDC 5.5K 1
C15 DOOR GLASS 361A11070T GLASS PI300, M,F 1
C16 FRAME DOOR *I 36122WD300 PP, D-NT1011'S 1
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
To Next Page
