5. EXPLODE VIEW AND PARTS LIST
12

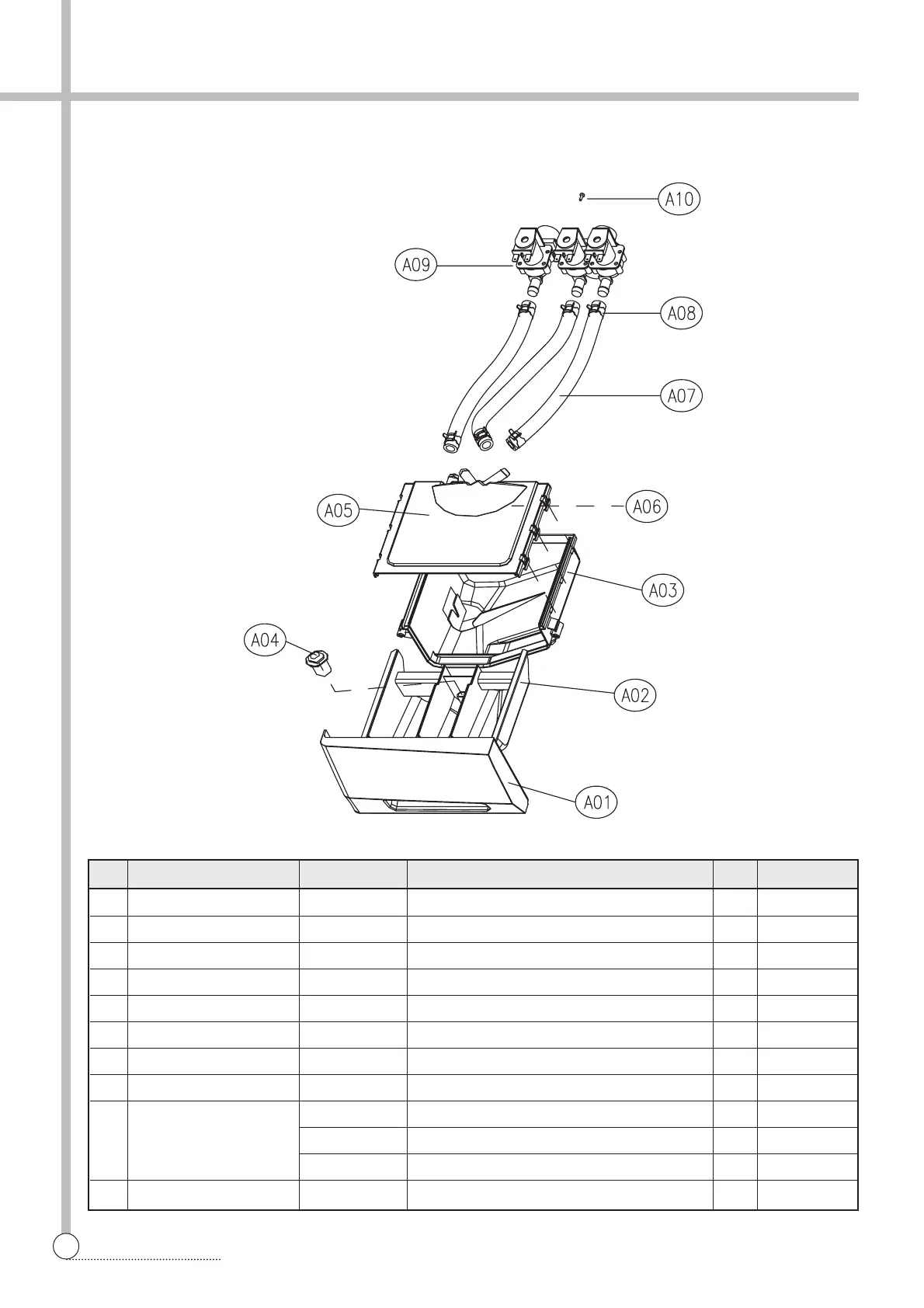

EXPLODE VIEW AND PARTS LIST
■ BOX INLET AS
A01 CASE HANDLE 36111T3D00 HIPS, D-NT 1
A02 CASE DETERGENT 36111T2V00 PP, D-MT 1
A03 BOX INLET 3617511700 PP 1
A04 CAP SOFTENER 3610907800 PP 1
A05 NOZZLE TOP 3618112000 PP 1
A06 NOZZLE UNDER 3618112100 PP 1
A07 HOSE WATER SUPPLY 3613270900 EPDM ID9.5 OD14.5 2(3) 0.245
A08 CLAMP HOSE 3611205800 100H, ID=13.8 W=10.0 0.9T 4(6)
A09 VALVE INLET 3615414900 220-240 2-WAY PP/BRACKET 1 COLD
3615416820 220-240V.VDE.BITRON.329/349 2WAY 1 COLD(EU)
3615414800 220-240V 1-WAY HOT PP 1 HOT(OPTION)
A10 SCREW TAPPING 7272400811 TT3 TRS 4x8 MFZN 2(4)
No. PART NAME PART CODE SPECIFICATION Q'TY REMARK
