Daewoo D45SC-2 Disassembly/Assembly

Vehicle Systems Disassembly & Assembly

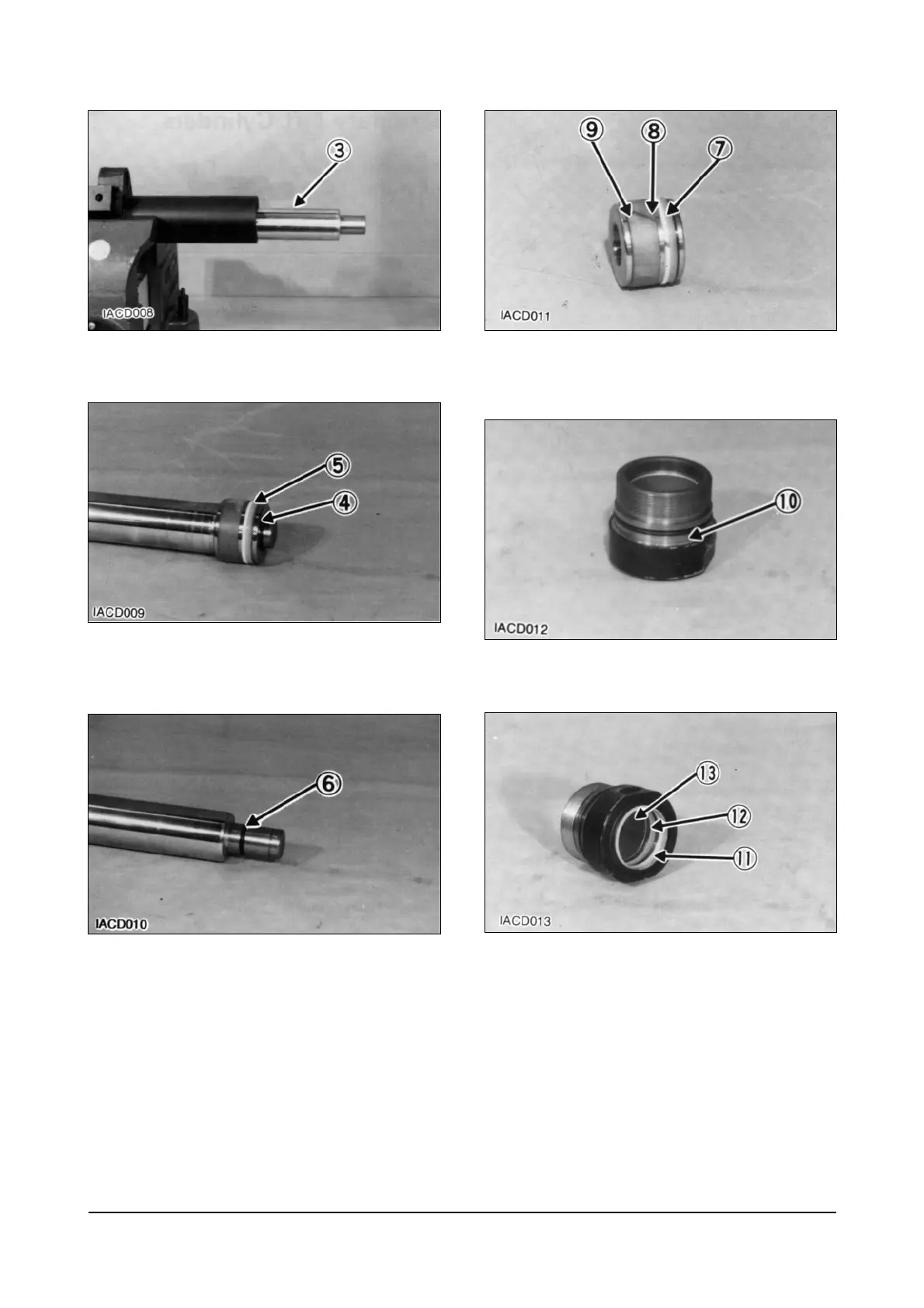

3. Remove rod (3) from the cylinder body.
4. Remove retaining ring (4) and piston (5) from the
cylinder rod.
5. Remove O-ring seal (6) from the cylinder rod.
6. Remove O-ring seal (7), back-up ring (8) and seal
(9) from the piston.
7. Remove O-ring seal (10) from the head assembly.
8. Remove wiper seal (11), seal (12) and bush (13)
from the head assembly.
10
