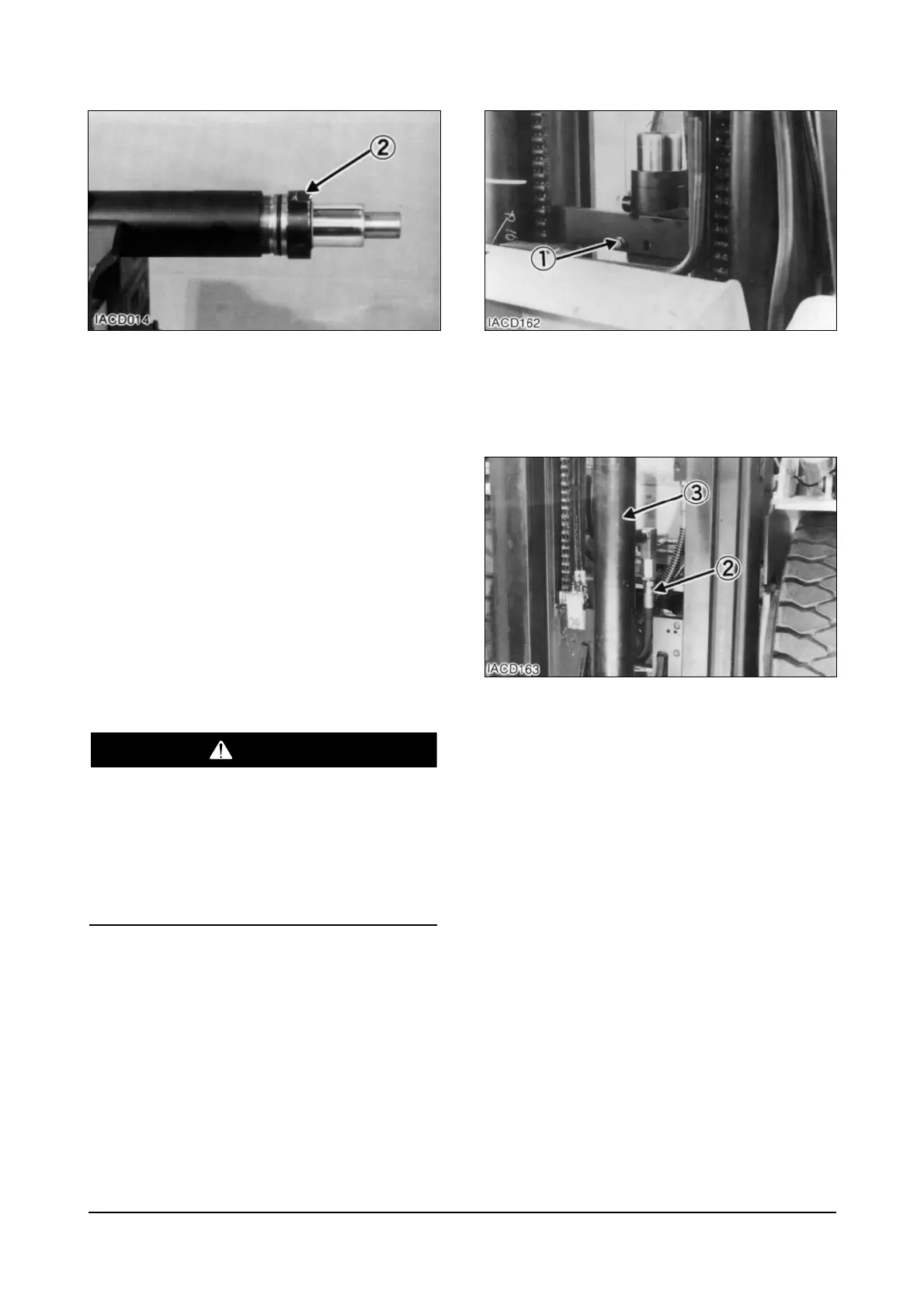

8. Install head assembly (2) on the cylinder rod and
tighten using tool.
End By :
a. Install secondary lift cylinders.
Primary Lift Cylinder
Remove & Install Primary Lift
Cylinder
Start By :
a. Remove carriage.
To prevent personal injury, move the control
levers backward and forward to release any
pressure in hydraulic system. Slowly loosen the
cap of the hydraulic tank to release any pressure
in the tank. Be cautious of hot hydraulic oil when
any lines are disconnected in the hydraulic
system.
1. Fasten nylon straps and hoist to the primary lift
cylinder.
2. Remove bolt (1).
3. Pull the cylinder out far enough to disconnect
hydraulic hose (2). Remove primary lift cylinder
(3).
4. Install primary lift cylinder (3) in the reverse order
of removal.
End By :
a. Install carriage.
To Next Page
